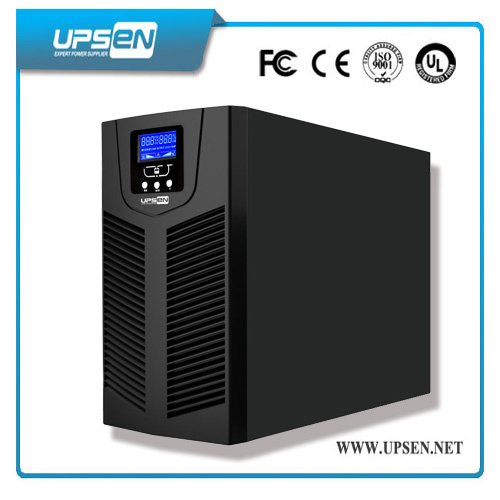

High Frequency Online Uninterruptible Power Supply UPS System 6kVA-20kVA

High Frequency Online Uninterruptible Power Supply UPS System 6kVA-20kVA
Price: US $ 1-200/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series 6-20Kva
Conversion: Double
Battery Nominal Voltage: 192/240VDC
Battery Type: Lead Acid Battery
Temperature: 0c~40oc
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Upsen

Product Description

High Frequency online uninterruptible power supply ups system 6kva-20kva
Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)

Key Features:
1:Precision Output Voltage Regulation
2:Optional Emergency Power Off (EPO)
3:Programmable 50/60Hz Frequency Conversion
4:DSP Double-Conversion On-line Sinewave Design
5:Pure sine wave output, suitable for all kinds of loads
6:Humanization bypass output can be adjustable
7:Low initial investment and flexible for future expansion
8:Standard RS232 communication port and RJ45 protection
9:LCD Display with Advanced Monitoring for Easy UPS Management
10:Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
11:True on-line double conversion technology with advanced microprocessor control
12:Auto restart after utility power restore when UPS shutdown due to battery low

Applications
Electronic Cash Registers,Electronic Test Equipment,security systems, information center,Electricity power station, taxation, entertainment etc

Technical Specification
Queen Star Series Q6K-20Kva
ModelQ6KQ6KLQ10KQ10KL31Q10KL31Q15KL31Q20KL
Capacity6KVA/4800W10KVA/8000W15KVA/12KW20KVA/16KW
InputNominal Voltage220/230/240Vac380/400/415Vac
Voltage Range176~276Vac (1P2W+G)304~478Vac (3P4W+G)
Current 31A (max)50A (max)50A (max)75A (max)100A (max)
Frequency46~54Hz/56~64Hz
Power Factor≥0.99
OutputVoltage220/230/240± 2%Vac  (1P2W+G)
Frequency50/60Hz(adjustable)                                                                                      50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode)
Current 27.3A45A68A91A
Power Factor0.8lag
WaveformPure Sine Wave
Waveform DistortionLine load <2%Line load <3%
Back-up TimeFull Load≥7′Depends on external batteries bank's Capacity≥5′Depends on external batteries bank's Capacity
Half Load≥20′≥13′
Battery Nominal Voltage192/240Vdc
Transfer Time0ms
Overload Capacity >105% 1min, >120% 30s transfer to bypass, shut down in 1min
CommunicationSNMP,RS-232,USB+Intelligent Slot
Operating EnvironmentTemperature0C~40ºC
Humidity15%~90%
DimensionWidth (mm)260260260260260
Depth (mm)560533560533560
Height (mm)717501717501717
Net Weight(Kg)68187020283030
*Specification are subject to change without prior notice
