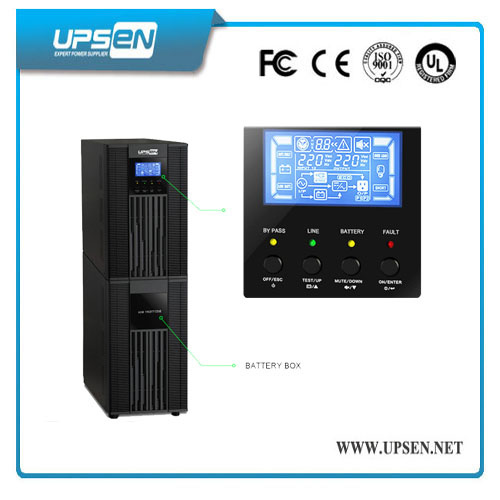

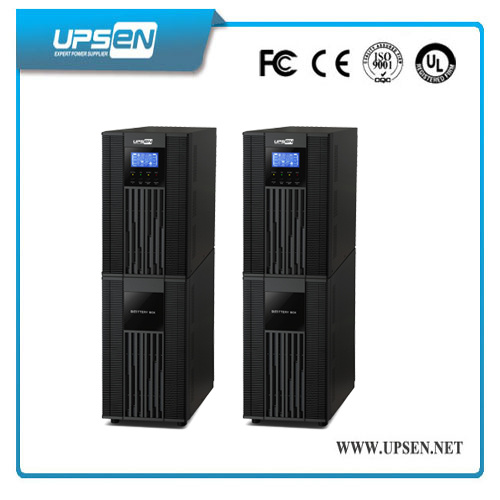

High Frequency Online UPS 6kVA 10kVA with USB Port and Maintenance Bypass
| Price: |
US $ 100-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Green Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Frequency Range: |
46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Transfer Time: |
Zero |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage, Over Current, Short Circuit |
| Application: |
Severs, Computers, Data Room, Communications, ATM |
| Standby Time: |
Stand/Long Run Model Both |
| Brand: |
Upsen |
Product Description
High Frequency Online UPS 6Kva 10Kva with USB Port and Maintenance Bypass
Quick Read
1: HF Online UPS with wide input 110VAC - 300Vac
2: High Freqyency Online UPS with SNMP, USB, RJ45, RJ11 Port
3: Online High Frequency UPS with pure sine wave and double conversion tech
4: UPS with 1 phase 220V 230V 240Vac or 110V 120Vac Input and Output
Key Features
1: True double-conversion on line UPS
2: DSP technology guarantees high performance
3: Output power factor 0.8
4: Maintenance bypass available
5: Standard backup UPS and long backup UPS in one integrated unit
6: Adjustable battery number from 16 pcs to 20 pcs
7: Adjustable charging current via LCD or software (0.5A~6A)
8: SNMP/USB/RS-232 communications
9: Wide input voltage range (110-300 VAC)
10: Active input power factor correction 0.99
11: 50Hz/60Hz frequency converter mode
12: 3-stage extendable charging design for optimized battery performance
Technical Specification
Technical Specification | | |
| GREEN STAR 6K/10K ONLINE UPS SPECIFICATION |
| MODEL | G6K (L) | G10K (L) |
| PHASE | 1 phase in / 1 phase out |
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
| Low Line Comeback | 120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line Comeback | 290 VAC ± 3% |
| Frequency Range | | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 3 % THD (Linear Load)
<= 6 % THD (Non-linear Load) |
| Transfer Time | Bypass to Inverter (Line mode) | Zero |
| Inverter to Bypass (Line mode) | Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| Line Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | Default:1.0 A ± 10%, Max.:2.0A ± 10% | Default:1.0 A ± 10%, Max.:2.0A ± 10% |
| Float Charging Voltage | 218.4 VDC ± 1% |
| Long-run Model | Battery Type | Depending on applications |
| Numbers | 16-20** (adjustable) |
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% | Default:4.0 A ± 10%, Max.:6.0A ± 10% |
| Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 60 | 75 |
| Long-run Model | Dimension, D X W X H (mm) | 369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 21 | 23 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| | | | |
| *Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC. |
| *If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated |
| one percent per 100m. | | |
| *Product specifications are subject to change without further notice | |
* Long-run model is only available in 200/208/220/230/240VAC systems.
UPS ApplicationHome, Office, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom, Bank system, ATM, Computers, Railway, Weak electricity system integration, security system, CCTV, Army, Programmable Logic Controller (PLC), Direct Digital Controller, Building Automation System (BAS) etc.
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
