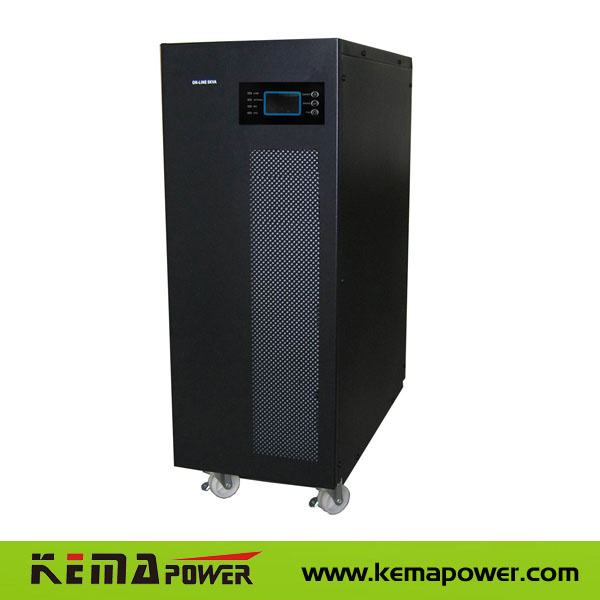

High Frequency Online UPS with Transformer N-C6K (S) -Tx 110V/220V
| Price: |
US $ 445.61/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
N-C6K(S)-TX 110V/220V |
| Product Name: |
N-C6K(S)-Tx 110V/220V High Frequency Online UPS |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
Power |
| Brand: |
Kemapower |
Product Description
High Frequency Online UPS With Transformer N-C6K (S) -Tx 110V/220V Key Features1.Double input or output 110V/220V High frequency online UPS
2.6KVA/10KVA/15KVA/20KVA, 0.9/0.8PF
3.Single input 220V or double input 110/220V
4.Double output 110V and 220V or single ouput 220V
5.Fully digitized microprocessor control
6.Wide input voltage range
7.Advanced PFC technology
8.Self-testing when UPS startup
9.Advanced battery management
10.Automatic battery charging in UPS off mode
11.Lightning and surge protection
12.Short circuit and overload protection
13.Smart RS232 communication with monitoring software
14.LED or LCD display
15.LCD display,EPO,ECO,USB, SNMP communication,Maintenance bypass optional
16.N+X parallel design optionalTechnical Specifications | ITEM | MODEL | N-C6K-TX | N-C6KS-TX |
| Capacity | VA / Watts | 6KVA/5.4KW | 6KVA/4.8KW |
| Input | Normal voltage | L+N=220V or L+N=110V / L+N=220V |
| Voltage range | IP:100-280+-5V for 220V, 50-140V For 110V |
| Frequency range | 50/60±10% |
| Input power factor | >0.99(220VAC,full R load) |
| Generator | Support generator input(Generator rating≥2*UPS rating |
| Output | Voltage range | 110V/220VAC or 220V +-1%, |
| Frequency range | 48Hz/54Hz(AC mode), 50HzX(1±0.1)(Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer Time | 0 ms |
| Distortion linear load | < 3% (Full Load) |
| distortion nonlinear load | < 5% (Ful l Load) |
| Overload capacity | 105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm. |
| Load peak ratio | 3:1(max) |
| 192VDC Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 192VDC | 192VDC |
| Battery Capacity | External 16*7.2AH | External |
| Around backup time (Full load) | 4Mins | Depended on battery capacity |
| Around backup time (Half load) | 12Mins |
| Recharge time | 7 hours to 90%capacity | Depended on battery capacity |
| 240VDC Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 240VDC | 240VDC |
| Battery Capacity | External 20*7.2AH | External |
| Around backup time (Full load) | 7Mins | Depended on battery capacity |
| Around backup time (Half load) | 20Mins |
| Recharge time | 8 hours to 90%capacity | Depended on battery capacity |
| Display | LED Display | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault |
| LCD display | IP/OP VAC HZ, BAT VDC % , LOAD % W , BAT LINE BYPASS MODE,ºC |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery |
| Overload | Beeping twice every second |
| UPS Fault | Beeping Continuously |
| Bettery low/charger fault | Beeping every 1 second |
| Bypass mode | Beeping every 2 min |
| L/N inverse | Beeping every 2 min |
| Communications | RS-232 Interface | With monitoring software |
| working Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| 192VDC UPS | Product size WxDxH (mm) | 260*565*715 | 260*565*490 |
| package Size WxDxH (mm) | 440*710*980 | 450*620*670 |
| N.weight(Kg) | 54 | 55 |
| Optional | Battery Cabinet-192VDC | C4 | N/A |
| 240VDC UPS | Product size WxDxH (mm) | 260*565*715 | 260*565*490 |
| package Size WxDxH (mm) | 440*710*980 | 450*620*670 |
| N.weight(Kg) | 54 | 55 |
| Optional | Battery Cabinet-240VDC | C4 | N/A |
| REMARK | N-CK-RTX --- Standard Type, N-C*KS-TX(-N)---- Long Time Type |

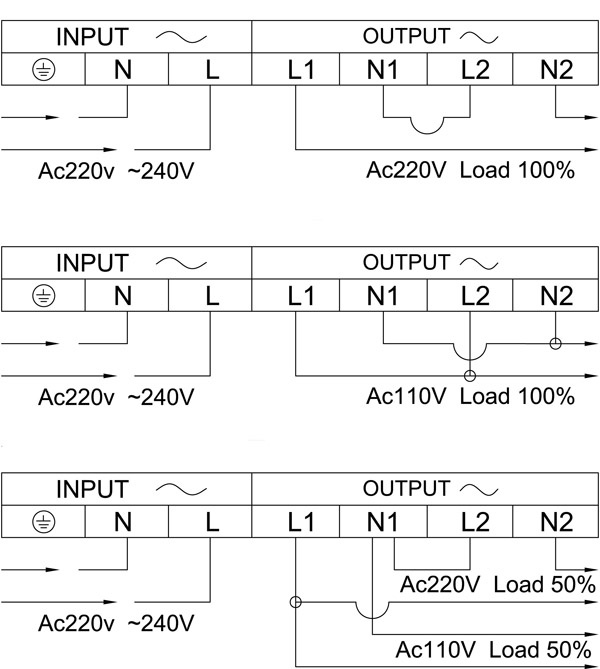

WIRE CONNECTION INPUT 110V or 220V , Output 220V
WIRE CONNECTION INPUT 220V , Output 110V or 220V
