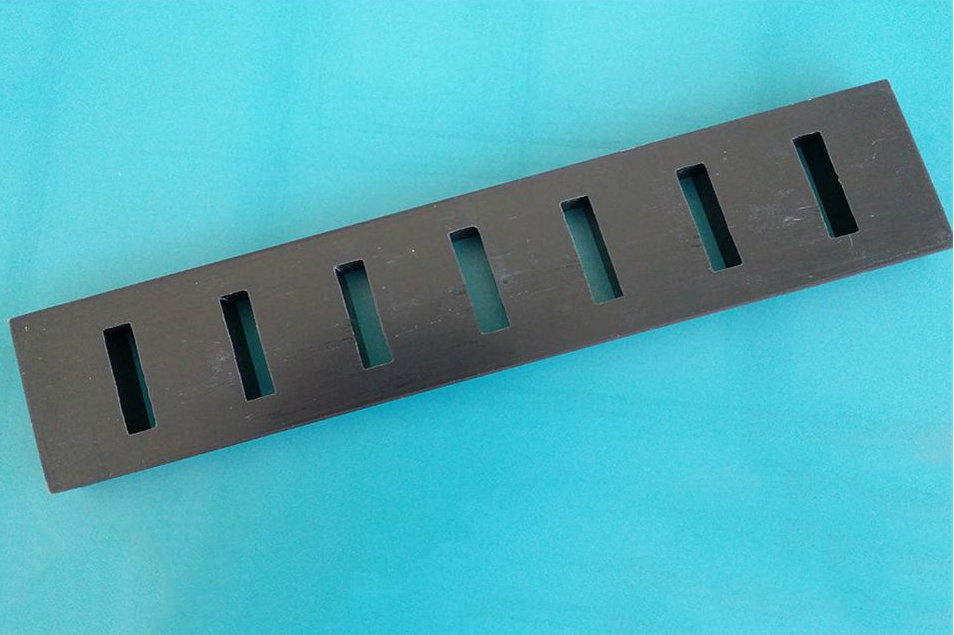

High Frequency Particle Accelerator Diode 2*2CLG120KV/3.0A-W

Prod Model:	2*2CLG120KV/3.0A-W
Trr:	100ns
Tj:	-40oc~120oc

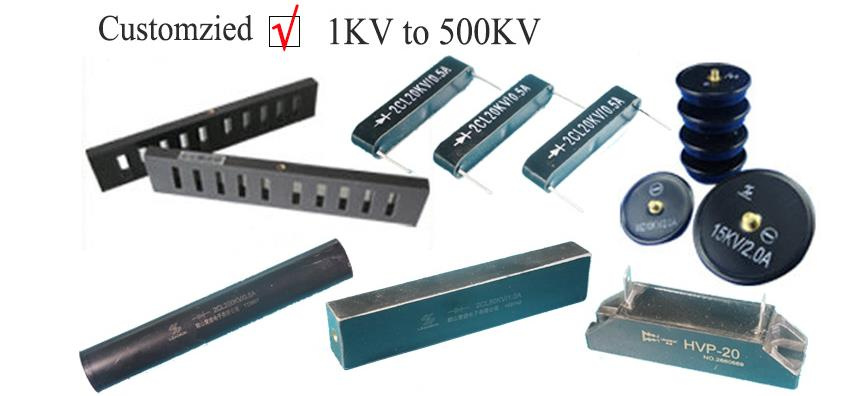

Features:	More Sizes Availible
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2*2clg120kv/3.0A-W
Brand:	Leadsun

Product Description

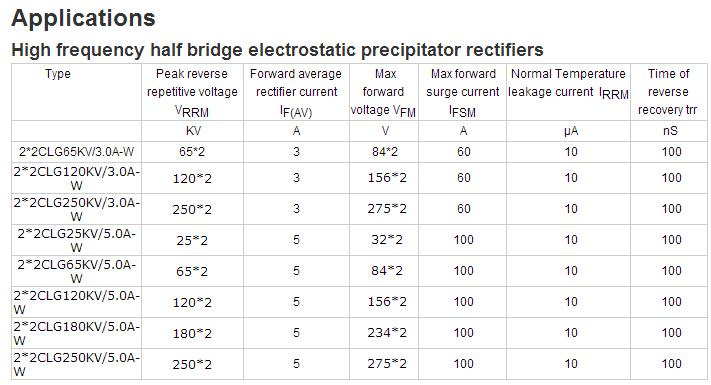

High frequency particle accelerator diode 2*2CLG120KV/3.0A-W half bridge electrostatic precipitator rectifiers
Product features
1. Avalanche characteristic
2. More sizes available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC-+120ºC
Application
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier
Limiting Values(Absolute Maximum Rating)

Item	Symbol	Unit	Condition	Voltage
Repetitive Peak Reverse Voltage	VRRM	KV	Ta=25ºC IR=1.0μA	2*120.0
Peak Working Reverse Voltage	VRWM	KV	Ta=25ºC IR=1.0μA	2*120.0
Non-Repetitive Peak ReverseVoltage	VRsM	KV	Ta=25ºC IR=1.0μA	2*122.0
Average Forward Current	IF(AV)	A	50Hz Half-sine Wave ,  Resistance load @Tbreak=50ºC	3.0
Reverse Recovery Time	trr	nS	IF=100mA IR=200mA IRR=50mA	-
Surge Forward Current	IFSM	A	0.01S @ Half-Sine wave 50Hz	60
Junction and Storage Temperature	T stg	ºC		-40~+120
Virtual Junction Temperature	T(vj)	ºC		-40~+120
