| Prod Model: |
BIC-199-V1.99 |
| Outer Copper Foil: |
1.5 Oz |
| Inner Copper Thick: |
1 Oz |
| Final Height Of PCB: |
1.2mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Minimum Trace And Space: |
7 Mil/7 Mil |
| Minimum / Maximum Holes: |
0.4mm/6.5mm |
| Via: |
Plated Through Hole(Pth), Via Open |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
Fr-4 and RO4350b |
| Material: |
Fiberglass Epoxy and Hydrocarbon/Woven Glass |
| Insulation Materials: |
Epoxy Resin and Glass Reinforced Hydrocarbon |
Product Description

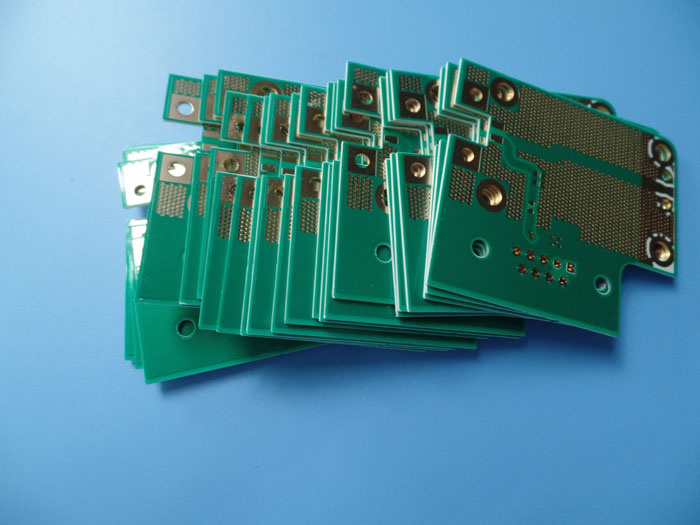

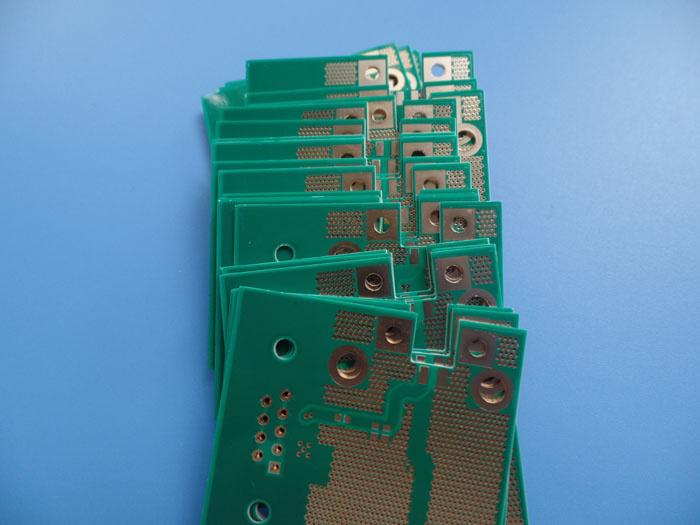

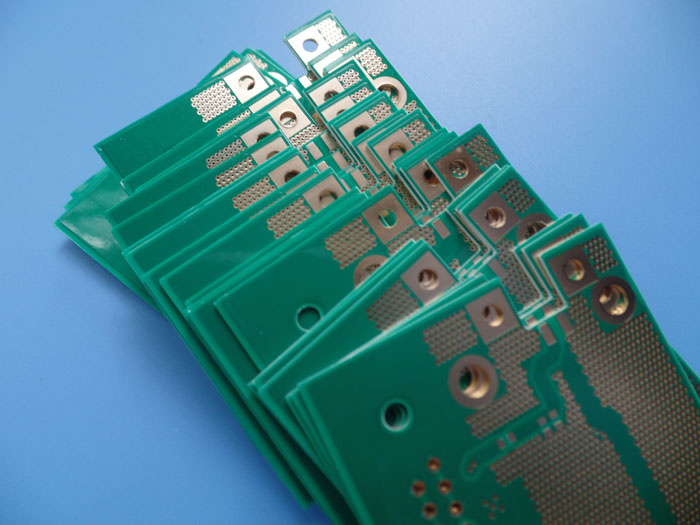

4 Layer High Frequency PCB Hybrid RO4350B And FR-4 Immersion Gold PCB Applied In
Amplifer
Commodity IntroductionThis is a type of FR-4 and RO4350B 10mil PCB for the application of Amplifer. It's a 4 layer board
at 1.2mm thick. The base laminate is from ITEQ and ROGERS CORP, Solder mask and silkscreen
from Nanya and Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each
10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 77 x 59mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| 10 mil ROGERS 4350B |
| copper ------- 35um(1oz) |
| Pregpreg |
| copper ------- 35um(0.5oz) |
| 28 mil FR-4 |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7mil/7mil |
| Minimum / Maximum Holes: | 0.4mm/6.5mm |
| Number of Different Holes: | 8 |
| Number of Drill Holes: | 2521 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, RO4350B 10mil |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.2mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (13.9%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via open |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Power Amplifier
Wireless Adapter
Usb Wifi
Wireless Routers
Splitter
Wifi Antenna |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
