High Frequency PCB Built 30 Mil RO4350b with Immersion Gold
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-877-V8.77 |
| Final Foil External: |
1.0 Oz |
| Final Height Of PCB: |
0.8 mm ±0.08 |
| Surface Finish: |
Immersion Gold (37.1% ) |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
6 Mil / 7 Mil |
| Minimum / Maximum Holes: |
0.3 mm / 5.6 mm |
| Final Foil Internal: |
1 Oz |
| Via: |
Minimum Size 0.3mm. |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description

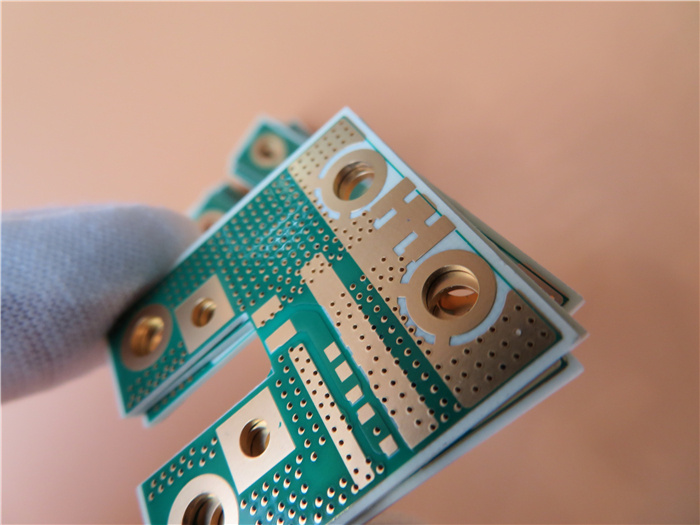

This is a type of 2 layer PCB built on 30mil RO4350B substrate with Tg 280°C for the
application of Splitter HDMI. It's 0.8 mm thick with white silkscreen(Taiyo) on green solder mask
(Taiyo) and immersion gold on pads. The base material is from Rogers supplying single up PCB.
They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 boards are packed
for shipment.
1.2 Features and benifits
a. Excellent high frequency performance due to low dielectric tolerance and loss.
b. Delamination of copper foil will not be caused by the change of cold and heat due to the
consistency with the thermal expansion coefficient of copper foil.
c. The characteristic of low dielectric loss makes the signal loss at a lower level, which makes
the signal transmission of the whole equipment excellent.
d. ENIG has good oxidation resistance and good heat dissipation.
e. DDU Door to door shipment with competitive shipping cost
f. Whole fabrication process are totally controlled.
g. Fast and flexible to save the time of production from prototype to standard production
h. Small quantity order is accepted
i. UL recognized and RoHS Directive-compliant
1.3 Application
Mixer, Radar sensors, RF Switches, Automatic gate induction, Antenna combiner, Transmitter
combiner
1.4 Parameter and data sheet | PCB SIZE | 35 x 29 mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 0.762mm |
| copper ------- 35um(1 oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6 mil / 7 mil |
| Minimum / Maximum Holes: | 0.3 mm / 5.6 mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 325 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg288ºC, er<3.66, RogersCorp |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 0.8 mm ±0.08 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (37.1% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor
and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
