High Frequency PCB Circuit Board RO4003c 32mil (0.813mm)
| Price: |
US $ 0.42/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1036R3.6 |
| Solder Mask Color: |
Green |
| Surface Finish: |
HASL Lead Free |
| Legend Color: |
White |
| Board Thick: |
0.8mm |
| Copper Thick: |
1.5 Oz |
| Minimum Trace and Space: |
6.98 Mil/6.28 Mil |
| Minimum / Maximum Holes: |
0.3/1.2mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
High Frequency PCB Double Sided PCB Circuit Board RO4003C 32mil(0.813mm) Applied In
Multicoupler Antenna
Commodity Introduction

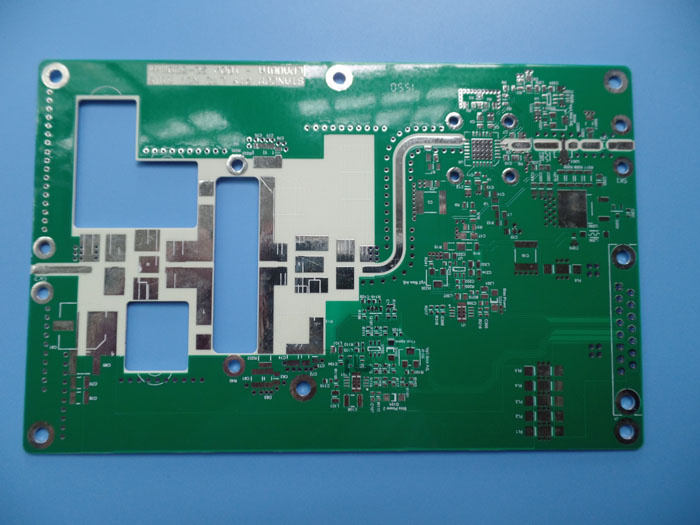

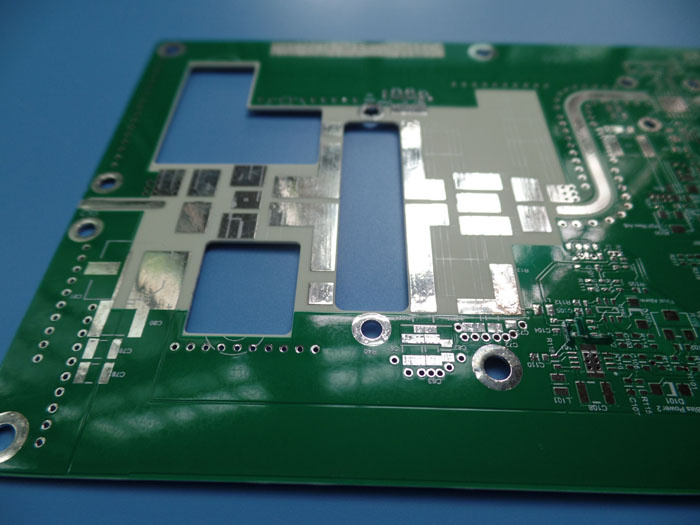

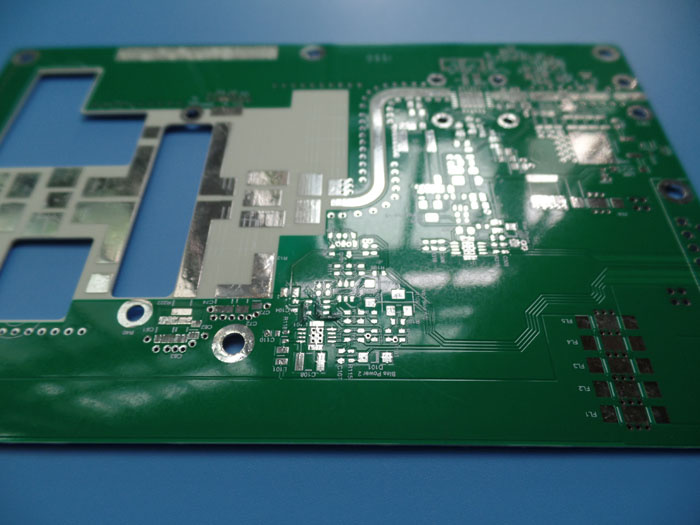

This is a type of RO4003C PCB for the application of Multicoupler Antenna . It's the board at
0.8mm thick. The base laminate is from Roger Corp., Solder mask and silkscreen from Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 98 x 72mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+PLATE |
| RO4003C 32 mil 0.813mm |
| copper ------- 35um(1oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6.98mil/6.28mil |
| Minimum / Maximum Holes: | 0.3/1.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 481 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 32 mil (0.813mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL, Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Multicoupler antenna, PC Power Supply
Atx Power Supply
Car Tracker
HDMI Splitters
Power Cable |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Standard specifications of RO4350B and RO4003C Substrate
RO4000 Series High Frequency Circuit Materials
Standard Thickness
RO4003C
0.008" (0.203mm)
0.012" (0.305mm)
0.016" (0.406mm)
0.020" (0.508mm)
0.032" (0.813mm)
0.060" (1.524mm)
RO4350B
0.0040" (0.101mm)
0.0066" (0.168mm)
0.010" (0.254mm)
0.0133" (0.338mm)
0.0166" (0.422mm)
0.020" (0.508mm)
0.030" (0.762mm)
0.060" (1.524mm)
Standard Panel Size
12" x 18" (305 x 457 mm)
24" x 18" (610 x 457 mm)
24" x 36" (610 x 915 mm)
48" x 36" (1.224m x 915 mm)
0.004"(0.101mm) material is not available in panel size larger than 24" x 18" (610 x 457 mm)
Standard Copper Cladding
1/2 oz(17µm) electrodeposited copper foil (0.5ED/0.5ED)
1 oz (35µm) electrodeposited copper foil (1ED/1ED)
2 oz (70µm) electrodeposited copper foil (2ED/2ED)
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
