High Frequency PCB RO4003c 32mil Circuit Board Immersion Gold
| Price: |
US $ 1.35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1297R1.4 |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
White |
| Solder Mask Color: |
Green |
| Board Thickness: |
0.9mm |
| Copper Thick: |
1.5 Oz |
| Minimum Trace and Space: |
6.3 Mil/7.6 Mil |
| Minimum / Maximum Holes: |
0.66/1.2mm |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test |
| Board Plating: |
0.0030" |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c |
| Base Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description

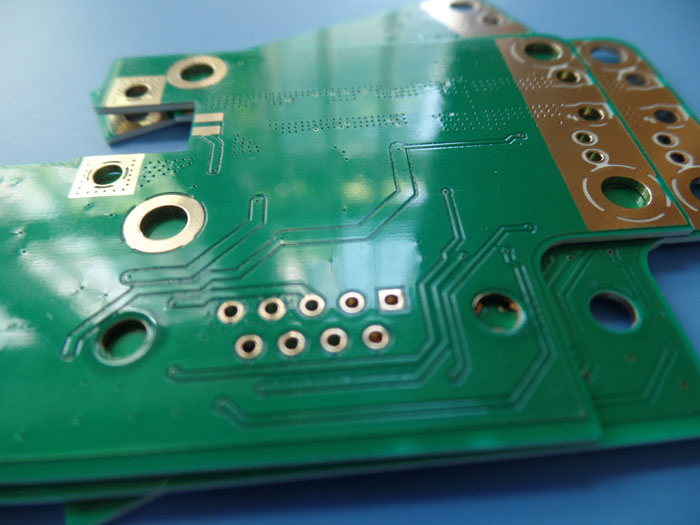

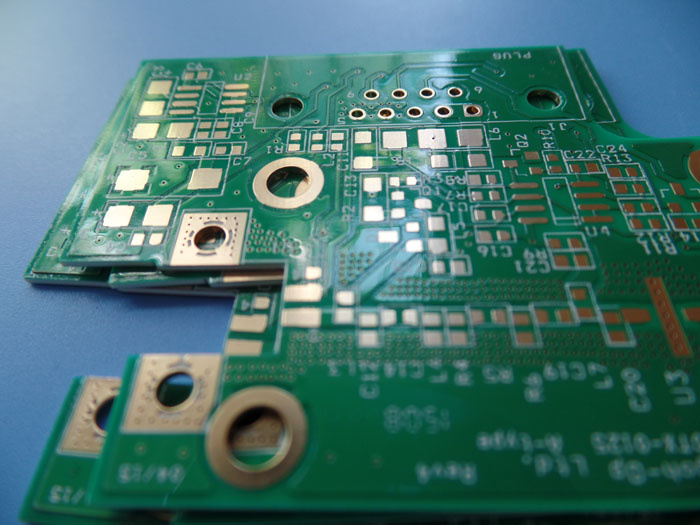

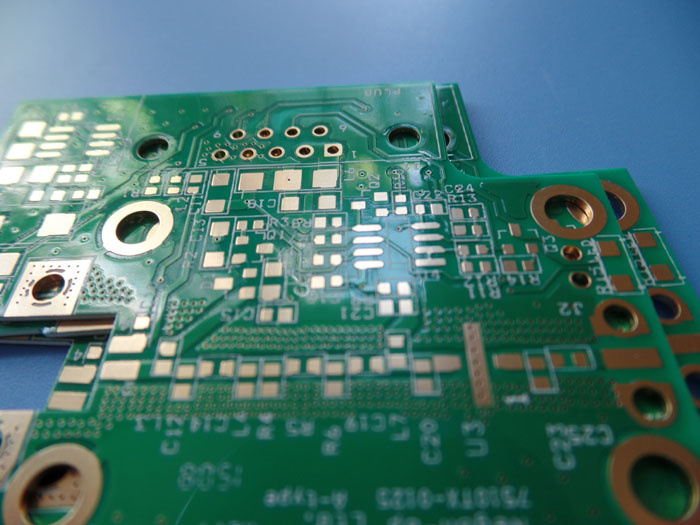

High Frequency PCB RO4003C 32mil Circuit Board 0.9mm thick with Green soldermask and
Immersion Gold Applied In Preamplifier
Commodity Introduction
This is a type of RO4003C PCB for the application of Preamplifier. It's a 2 layer board at 0.9mm
thick. The base laminate is from Rogers Corp.. Solder mask and silkscreen from Taiyo. It's fabri

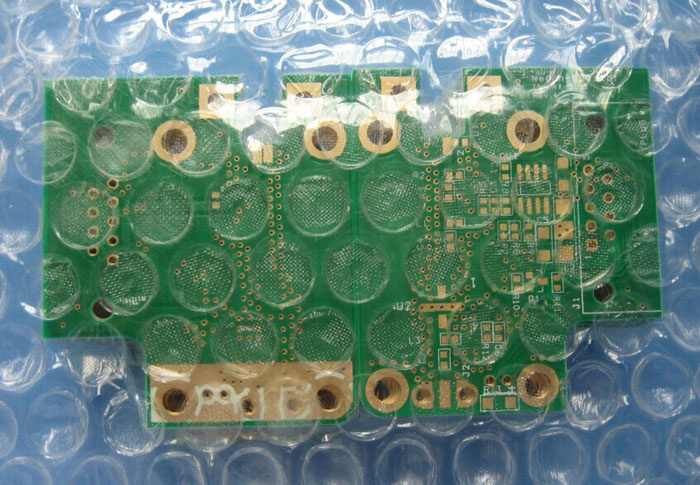

-cated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 45 x 51mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4003C 32mil (0.813mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6.3mil/7.6mil |
| Minimum / Maximum Holes: | 0.66/1.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 58 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 32mil (0.813mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.9mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Preamplifier, N Router
USB 3G
USB Adapters
GPS Track
Long Range Wifi |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Characteristics of PCB
PCB has been more and more widely used, because it has many unique advantages. It can be summarized as follows.
a) Can be high density. For decades, PCB with high density can be developed with the integration
of integrated circuits and surface mount technology progress.
b) High reliability. Through a series of inspection, testing and aging tests can ensure long time (use period, generally 20 years) and reliable work.
c) Designability. Various performance (electrical, physical, chemical, mechanical, etc.) requirements on PCB can be achieved by design standardization and standardization, etc. short time and high efficiency.
d) Productibility. The use of modern management, it can be produced by standardization production, scale production (mass production), automatic production etc to ensure product quality consistency.
e) Testability. Established a series of complete testing methods, testing standards, a variety of
testing equipment and instrument etc, It can detect and identify the PCB quality and service life.
f) Can be assembled. PCB products not only facilitate the standardized assembly of various
components, but also can be automated, large-scale mass produced. At the same time, PCB and
its assembled components can be also assembled to form a larger component, system, until the
whole machine.
g) Maintainability. As PCB products and various components of the assembly are standardized
design and large-scale production, and thus, these assembled components are standardized.
So once the system fails, it can be fast, convenient and flexible replaced, quickly restore the service
system.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
