High Frequency PCB RO4350b and RO4450b Copper Board 2 Oz
| Price: |
US $ 2.69/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1034R3.4 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
No Required |
| Legend Color: |
No Required |
| Board Thick: |
0.8mm |
| Our Copper Thick: |
2 Oz |
| Inner Copper Thick: |
None |
| Minimum Trace and Space: |
13mil/15mil |
| Minimum/Maximum Holes: |
0.3/3.21mm |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b and RO4450b |
| Base Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
High Frequency PCB Fab RO4350B Laminated RO4450B prepreg Applied In Digital
Transmitter
Commodity Introduction

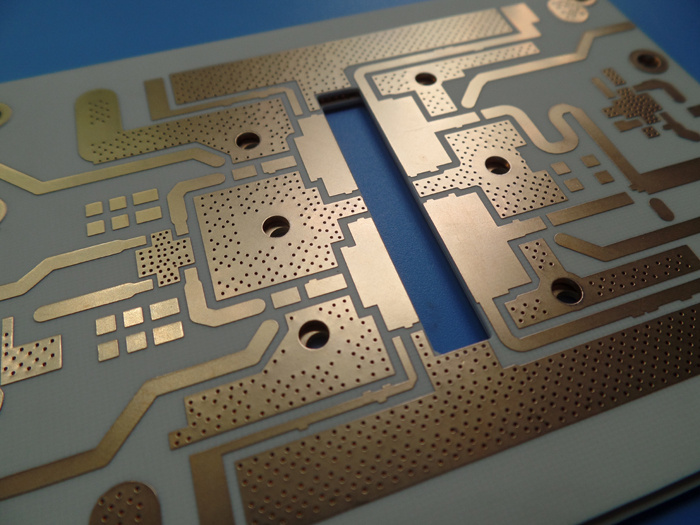

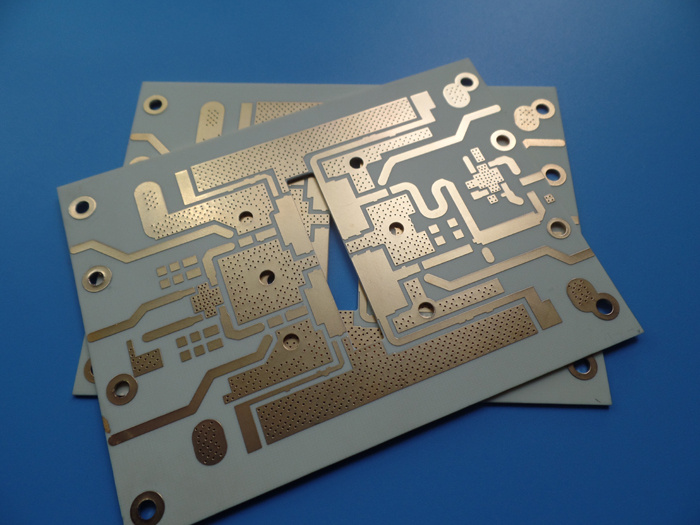

This is a type of RO4350B and RO4450B PCB for the application of Digital Transmitter. It's a 4
layer board at 0.8 mm thick. The base laminate is from Roger Corp.. Solder mask and silkscreen
from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 91 x 68mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 70um(2oz)+plate TOP layer |
| RO4350B 10 mil |
| no copper ------- MidLayer 1 |
| RO4450B 4 mil |
| no copper ------- MidLayer 2 |
| RO4450B 4 mil |
| RO4350B 10 mil |
| copper ------- 70um(2oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 13mil/15mil |
| Minimum / Maximum Holes: | 0.3/3.21mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 1680 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | Rogers RO4350B( core 10mil, DK=3.48) &
RO4450B(PP 4mil
DK=3.54) |
| Final foil external: | 2oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (71.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | no solder mask required |
| Solder Mask Color: | no solder mask required |
| Solder Mask Type: | no solder mask required |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | no silkscreen required |
| Colour of Component Legend | no silkscreen required |
| Manufacturer Name or Logo: | no silkscreen required |
| VIA | Plated Through Hole(PTH), via open |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Digital transmitter, 4G Router
USB Bluetooth
USB Bluetooth Adapter
Adaptor
Antennas |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
PCB Capabilities (Bicheng Enterprise Limited 2017)
Layer Counts: 1-32
Substrate Material: FR-4(including High Tg 170, High CTI>600V); Aluminum based; RO4350B, RO4003C; Polyimide, 94HB and FR-1 (upon request)
Maximum Size: Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
Board Outline Tolerance: ±0.0059" (0.15mm)
PCB Thickness: 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm): ±8%
Thickness Tolerance(t<0.8mm): ±10%
Insulation Layer Thickness: 0.00295" - 0.1969" (0.075mm--5.00mm)
Minimum Track: 0.003" (0.075mm)
Minimum Space: 0.003" (0.075mm)
Outer Copper Thickness: 35µm--420µm (1oz-12oz)
Inner Copper Thickness: 17µm--420µm (0.5oz - 12oz)
Drill Hole (Mechanical): 0.0059" - 0.25" (0.15mm--6.35mm)
Finished Hole (Mechanical): 0.0039"-0.248" (0.10mm--6.30mm)
Diameter Tolerance (Mechanical): 0.00295" (0.075mm)
Registration (Mechanical): 0.00197" (0.05mm)
Aspect Ratio: 12:1
Solder Mask Type: LPI
Min Solder mask Bridge: 0.00315" (0.08mm)
Min Solder mask Clearance: 0.00197" (0.05mm)
Plug via Diameter: 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance: ±10%
Surface Finish: HASL, HASL LF, ENIG, Immersion Tin, Immersion Silver, OSP, Gold Finger
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
