High Frequency PCB RO4350b Double Sided Board Immersion Gold
| Price: |
US $ 1.86/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1269R3.9 |
| Solder Mask Color: |
Green |
| Board Thick: |
0.6-0.7mm |
| Copper Thick: |
1.5 Oz |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
White |
| Minimum Trace and Space: |
7.5 Mil/8.8 Mil |
| Minimum / Maximum Holes: |
0.5/3.2mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Brand: |
Bicheng |
Product Description

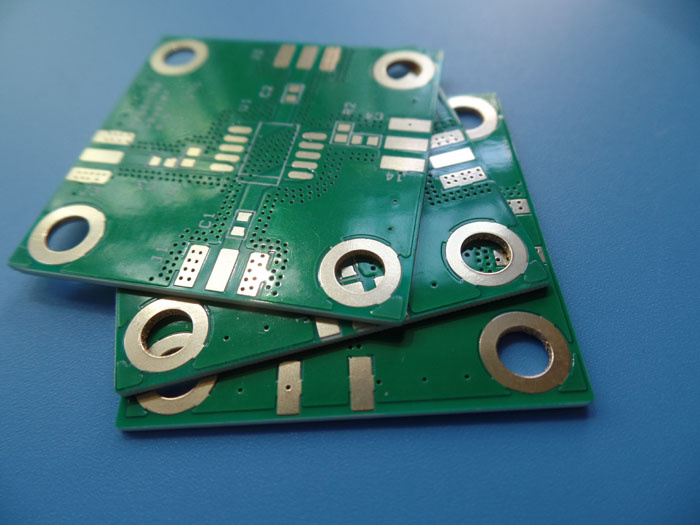

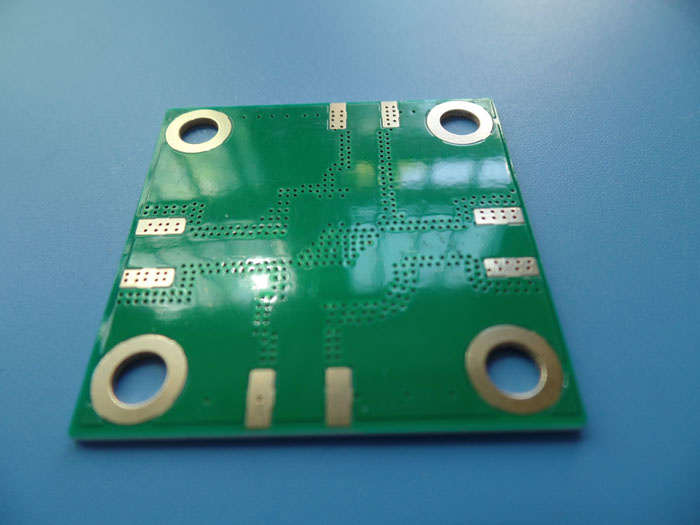

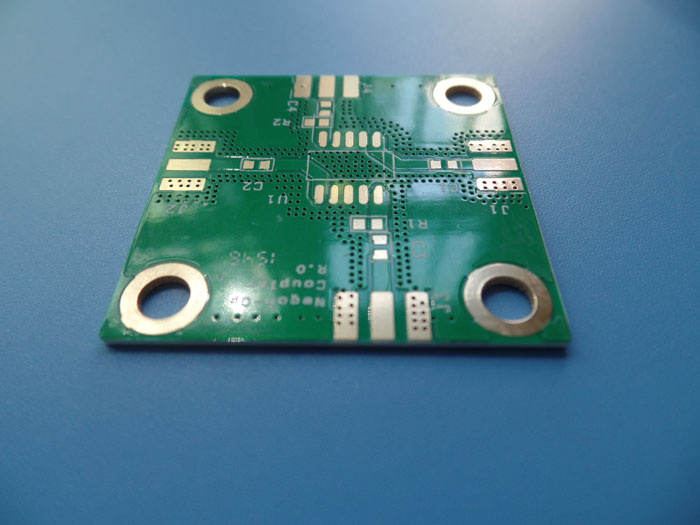

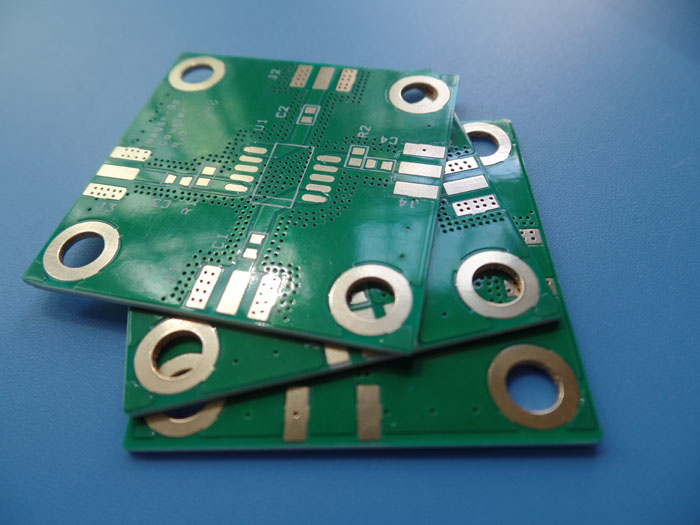

High Frequency PCB RO4350B 20mil Double sided board 0.6mm thick with Immersion Gold and 1.5 oz copper thick Applied In Low Loise Amplifier
Commodity Introduction
This is a type of RO4350B PCB for the application of Low Loise Amplifier. It's a 2 ayer board at 0.6mm thick. The base laminate is from Rogers Corp., Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately
Parameters & Data Sheet| PCB SIZE | 60 x 54mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4350B 20mil (0.508mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7.5mil/8.8mil |
| Minimum / Maximum Holes: | 0.5/3.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 191 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 20mil (0.508mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.6-0.7mm |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Low noise amplifier (LNA), AC Inverter
Wifi Antenna Booster
Wireless Broadband Router
Modem GSM
USB Adaptor |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
PCB fabrication process
1). Etching
Purpose: Etching is to etch off the non-circuit parts of the copper layer by chemical reaction method
2). Solder Mask
Purpose: Solder mask is transferring the solder mask film graphics to the board to protect the track and prevent the track from the effect of tin welding during assembly.
3). Silkscreen
Purpose: The silkscreen character is a mark that is easy to recognize.
4). Edge connector plating (Gold finger)
Purpose: A nickel gold layer with a thickness is plated on the PCB edge of the plug to make it more resistant to wear.
HASL (a process of coordinate)
HASL is a layer of tin generated on the non-solder mask area to protect pad copper surface from oxidation to ensure good welding performance.
5). Contour
Purpose: By stamping or milling machine to cut the PCB into customers' required shape.
6). Electrical test
Purpose: Through the electronic 100% test to find the open circuit, short circuit and other functional defects which are not easy to find by visual inspection.
7). Final Inspection
Purpose: Through 100% visual inspection to find out the defects in appearance and repair minor defects to avoid problems and defects in the shipment.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
