High Frequency PCB RO4350b with 2 Sides of Copper Track
| Price: |
US $ 0.36/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-798-V7.98 |
| Final Foil External: |
1.5oz |
| Final Height Of PCB: |
1.6 mm ±10% |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
None |
| Colour Of Component Legend: |
Black |
| Minimum Trace And Space: |
80 Mil / 40 Mil |
| Minimum / Maximum Holes: |
No Holes |
| Via: |
N/a |
| Final Foil Internal: |
N/a |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description

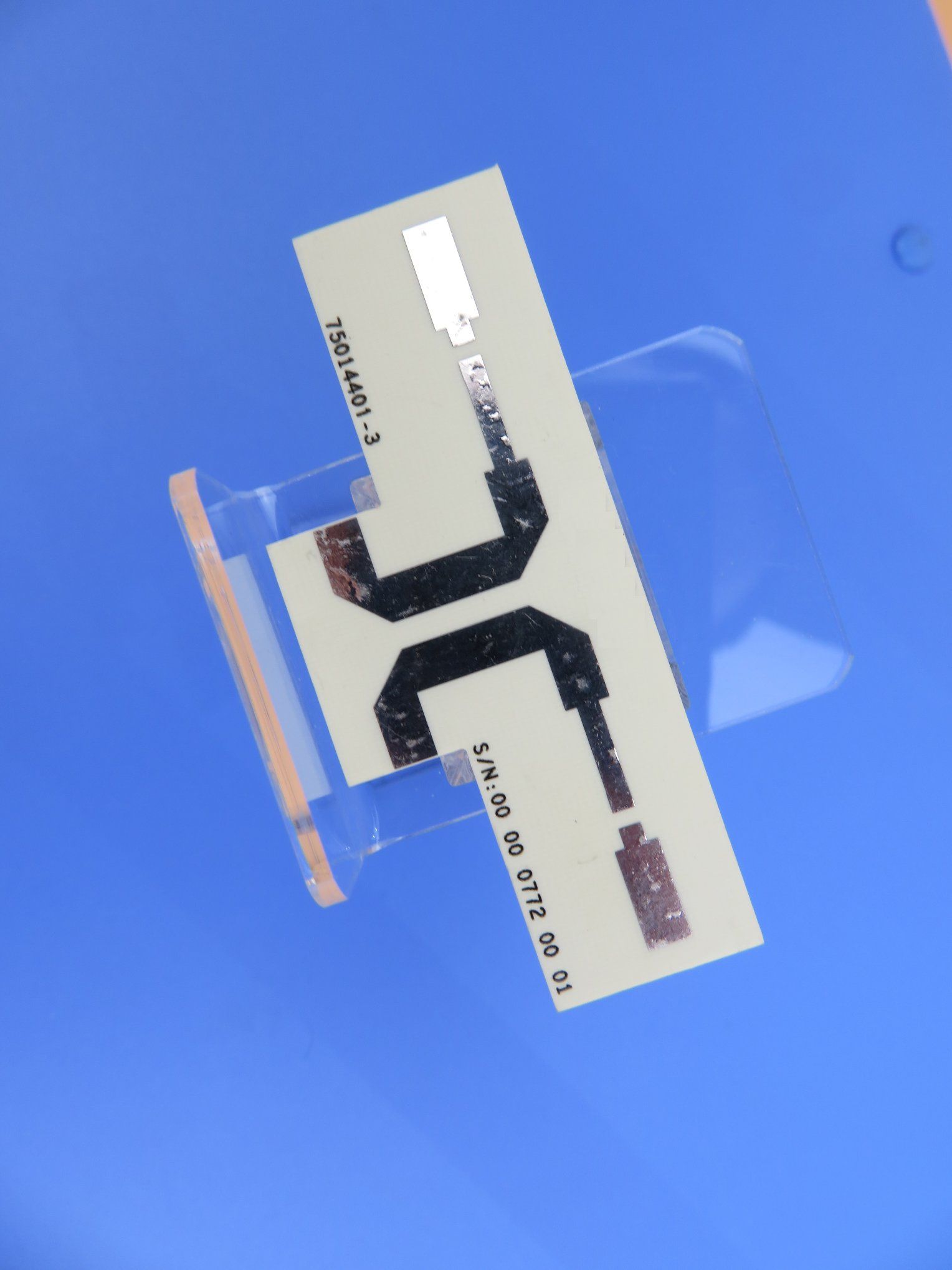

This is a type of double sided high frequency PCB built on RO4350B substrate with Tg 280°C
for the application of car amplifier. It's 1.60 mm thick without solder mask; Black silkscreen is
directly on the substrate and HASL is on pads for soldering. The base material is used from
Rogers Corp., entire board supplying 1 up. They're fabricated per IPC 6012 Class 2 using
supplied Gerber data. Each 25 boards are packed for shipment.
1.2 Features and benifits
A. Low water absorbability influences dielectric constant and dielectric loss less at damp;
B. Heat resistance, chemical resistance, impact strength and peeling strength are good;
C. The temperature coefficient of dielectric constant is among the lowest of any circuit
board material, making it ideal for temperature sensitive applications;
D. Wide range of PCB supplying;
E. UL recognized and RoHS Directive-compliant;
F. RoHS materials;
G. Prototype PCB capability;
H. Volume Production capability;
I. Quick turn-around samples;
1.3 Application
Rf module, Communications relays, Low Noise Block, Attenuator
1.4 Parameter and data sheet| PCB SIZE | 65 x 27mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 1.524mm |
| copper ------- 35um(1oz) + plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 80 mil / 40 mil |
| Minimum / Maximum Holes: | No holes |
| Number of Different Holes: | 0 |
| Number of Drill Holes: | 0 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280ºC, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 1.6 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | HASL Lead free |
| Solder Mask Apply To: | NO |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | N/A |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
