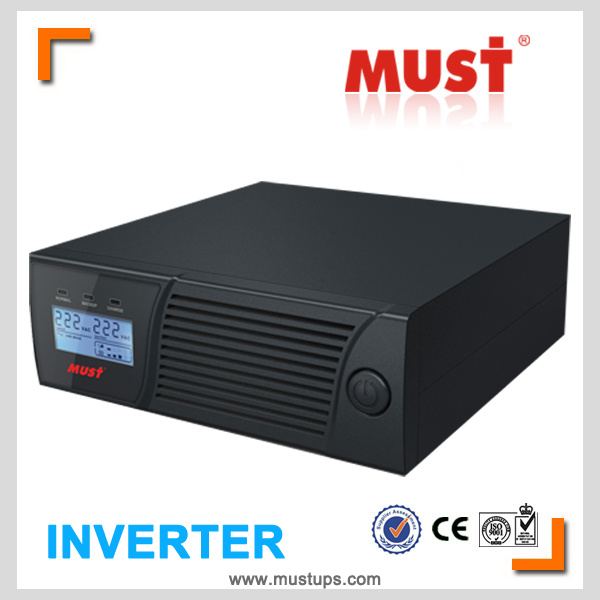

High Frequency Popular Modified Sine Wave Inverter

Name: High Frequency Popular Modified Sine Wave Inverter
Brand: all-electronics-online.com
SKU: 725577625
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP1000series
Markets:	Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	High Frequency
Capacity:	1000va/2000va
Charger:	10-20AMP
Display:	LED/LCD
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Electric Power
Output Power:	501 - 1000W
Brand:	Must or OEM

Product Description

Main features:
1.Household use

2.User selectable for accepting wider input voltage.
3.Full automatic and silent operation.
4.Rack Tower design.
5.High Frequency.
6.Off mode charging.
7.Available in five AC outlet configurations: NEMA, Schuko, French, India, and BS1363.
8.Compact size for convenient use and storage.
9.Built-in 8Amp super charger for up to 100Ah battery.
10.Small scale and cost effective inverter for home appliances and office equipment.
11. 3 steps IGBT mosfet charging control to recharging time

MODEL	115V Models	230V Models
OUTPUT
Power Levels crated at nominal inputs	500VA/300W;1000VA/600W;2000VA/1200W	500VA/300W;1000VA/600W;2000VA/1200W
Output Voltage	120V	230V
Phase	Single
Voltage Waveform	Modified Sine Wave
Power Factor	0.6
Output Frequency(Synchronized to Mains)	Auto Select for 50/60Hz
Regulation (Nominal)	10%-18%
Regulation(Battery mode)	±0.1HZ
Transfer time	8ms Typical
INPUT
Nominal Voltage	110V/120V Selectable	220V/230V/240V Selectable
Phase	Single
Voltage range	90 - 145VAC or 170-280VAC ( Narrow Range )
	50-145VAC / 90-280VAC (Wide Range)
BATTERY
Charger Current	500VA/300/12VDC:10 Amp + / - 1Amp ;1000VA/600W/12VDC:10 Amp + / - 1Amp 2000VA/1200W/24VDC:10 Amp + / - 1Amp

Overcharge Protection	500VA/300W: 15V +/- 0.3V charger stops and fault
	1000VA/600W:15V +/- 0.6V charger stops and fault
	2000VA/1200W: 30V +/- 0.6V charger stops and fault

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
