| Prod Model: |
JDSW300/D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single |
Product Description

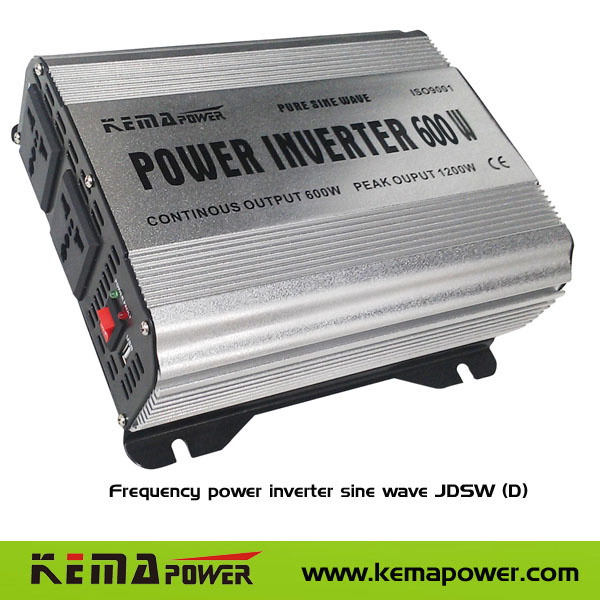

High Frequency power inverter (JDSW300/D) * High frequency DC-AC pure sine wave power inverter
* I/P:300W600W1200W1500W:12/24VDC
* O/P:220VAC or 110VAC ± 5%
* Capacity:300W 600W 1200W 1500W
* Wave Form:Pure sine wave
* Bat.:12VDC or 24VDC External battery
* LED Display (JDSW) or Digital display (JDSW-D)
* Special design for Off Grid Solar System inverter
Key Features:
1 Pure sine wave high frequency design
2 Small and light, high efficiency
3 Lower static current
4 Full protection for over temperature, over load and short circuit
5 With USB port
6 LED or digital display and alarm
7 Aluminous case
8 Fan cooling
9Use for off grid solar power system and the others.
Technical specification | Model | JDSW300 (D) | JDSW600 (D) | JDSW1200 (D) | JDSW1500 (D) |
| DC Input Range | 12/24VDC | 12/24VDC | 12/24VDC | 12/24VDC |
| DC Input Range | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC | 11V-15VDC or 11-30VDC |
| Output Capacity | 300W | 600W | 1200W | 1500W |
| Surge Capacity | 2 Times | 2 Times | 2 Times | 2 Times |
| Static Current | 0.7A | 0. 85 A | 0.9 A | 0.95A |
| Thd | ≤ 5 % |
| Efficiency(Full Load ) | ≥ 85 % |
| Max Efficiency | ≥ 90 % |
| Output Voltage(NO Load ) | 110V or 220V |
| Output Frequency | 50 or 60HZ±0.5HZ |
| USB Output | 5V 500Ma |
| Battery Low Alarm | 10.2V-10.8V or 20.4V-21.6V |
| Battery Low Cut Point | 9.2V-9.8V or18.4V-19.6V |
| Resume Voltage | 11.7V-12.3V or 23.4V-24.6V |
| Shut Off Voltage At Over-Voltage | 15.0V-16.0V or 30V-32V |
| Over Load Protection | Yes |
| OverCurrent Protection | Yes |
| Short Cuicurt | Yes |
| Over Temp. Protection | Yes |
| Led Display | Green LED (Power) Red( Fail or protection ), JDSW and JDSW-D |
| Digital display | AC ON (888), I/P VAC (U) O/P Watts (P), JDSW-D only |
