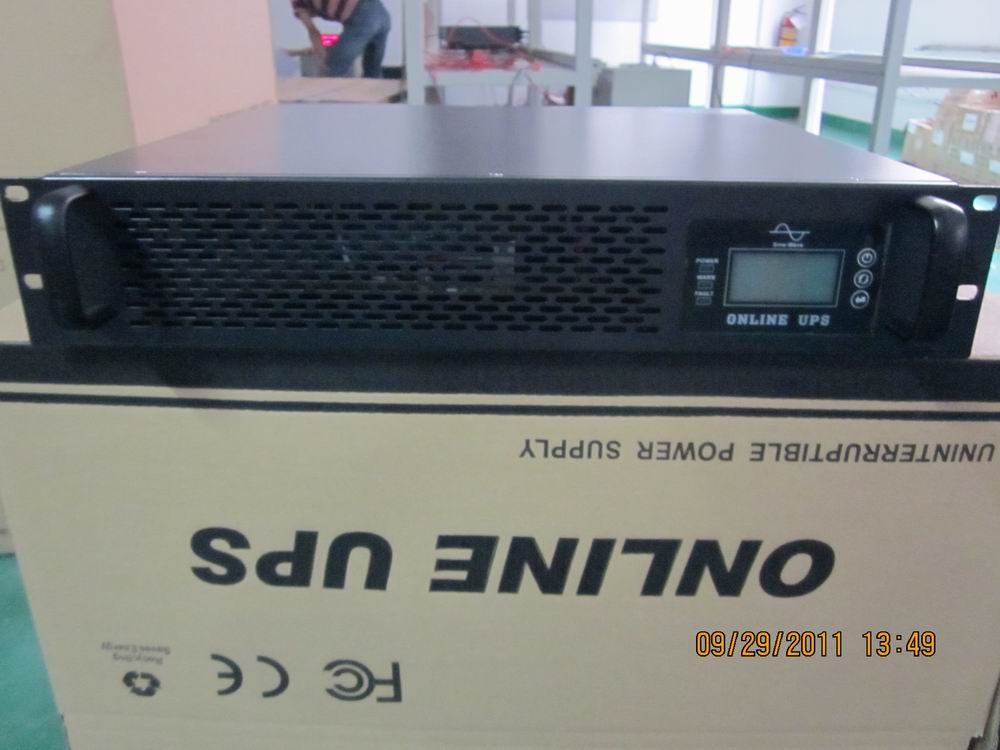

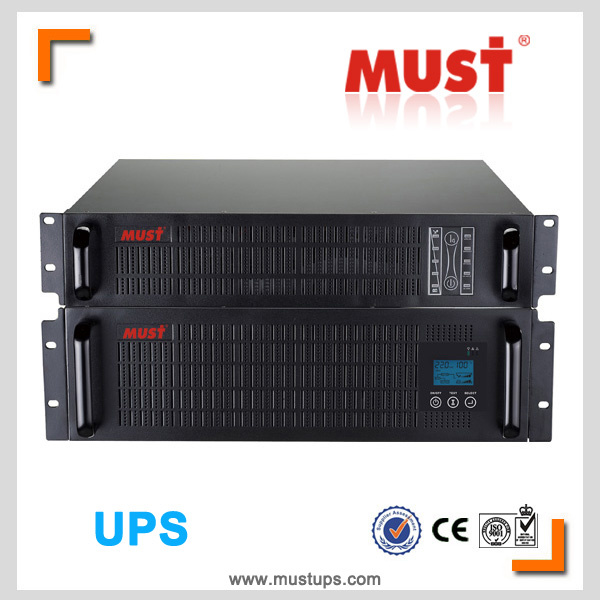

High Frequency Pure Sine Wave 1kVA to 10kVA Rack Online UPS

Name: High Frequency Pure Sine Wave 1kVA to 10kVA Rack Online UPS
Brand: all-electronics-online.com
SKU: 740499185
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EH5110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	115-300VAC
Capacity:	1-6kVA
Technology:	IGBT
Backup Time:	3-5mins at Full Load
Charge Voltage:	13.5-13.8VAC
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Must or OEM

Product Description

Main features:
1.1K-6kVA rackmount online UPS
2. TVSS function, Input power correct
3. Online UPS can match generator
4. Online UPS supports inductive load

Details:
A. Sine wave output, Zero conversion time
B. Input zero frontline detection function, Bypass output
C. TVSS function, Input power correct
D. DC starting, Bypass protection
E. Automatic startup function, Long-term type power design
F. Strong ability to recharge long-term acting machine
G. Rackmount Online UPS hast the shelf-check function, Powerful anti-jamming
H. Rackmount Online UPS can match generator
I. Online UPS supports inductive load too
J. Winpower2000 monitoring software free downloads
K. Provide intelligent slot, Provide standard battery pack

Model

HR1K

HR1KS

HR2K

HR2KS

HR3K

HR3KS

HR6K

HR6KS

CAPACITY

1000VA/800W

2000VA/1600W

3000VA/2400W

6000VA/4800W

INPUT

Phase

Single Phase with Ground

Frequency Range

50Hz:46~54Hz

Power Factor

>=0.97

>=0.98

Voltage Range

Base on load percentage(100%-80%/80%-70%/70%-60%/60%-0%)

Line Low Transfer

160VAC/140VAC/120VAC/110VAC± 5VAC

176 ±3% VAC

Line Low Comeback

175VAC ± 5VAC

185 ± 3% VAC

Line High Transfer

300VAC± 5VAC

276 ± 3% VAC

Line High Comeback

285VAC± 5VAC

266 ± 3% VAC

OUTPUT

Phase

Single

Voltage

220VAC/230VAC/240VAC

Voltage Regulation

± 2%

± 1%

Frequency(Synchronized Range)

46~54Hz

Frequency (Battery Mode)

50 ± 0.2 Hz

50Hz ± 0.5Hz

Current Crest Ratio

3:1

Output Waveform

Pure Sinewave

EFFICIENCY

To AC Mode

85%

> 88%

To Battery Mode

83%

> 88%

BATTERY

Battery Type

12V/7Ah

external battery

12V/7Ah

external battery

12V/7Ah

external battery

12V/7AH

external battery

Numbers of Batteries

Backup Time(Full Load)

>5 minutes

>9 minutes

>5 minutes

8 minutes

AC to DC

Zero

Inverter to Bypass

2.5ms (Typical )

Zero

INDICATOR

Status

Load Level/ Battery Level/ Battery Mode / AC Mode/ Bypass Mode / Fault

AUDIBLE ALARM

Battery Mode

Sounding every 4 seconds

Low Battery

Sounding every second

Overload

Sounding twice every second

Fault

Continuously Sounding

DIMENSION

UPS CaseD x W H(mm)

450x482.6x88

600x482.6x130

Battery Case D x W x H

N/A

450*482.6*88

600*482.6*130

INTERFACE

Smart RS-232

Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC

SNMP (option)

Power management from SNMP manager and web browser
