| Prod Model: |
RT1-3KVA Series |
| Size: |
See The Detail in The Web |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Standby Time: |
Standard and Long Backup Type |
| Output Capacity: |
Depend on Capacity |
| Brand: |
Kemapower |
Product Description

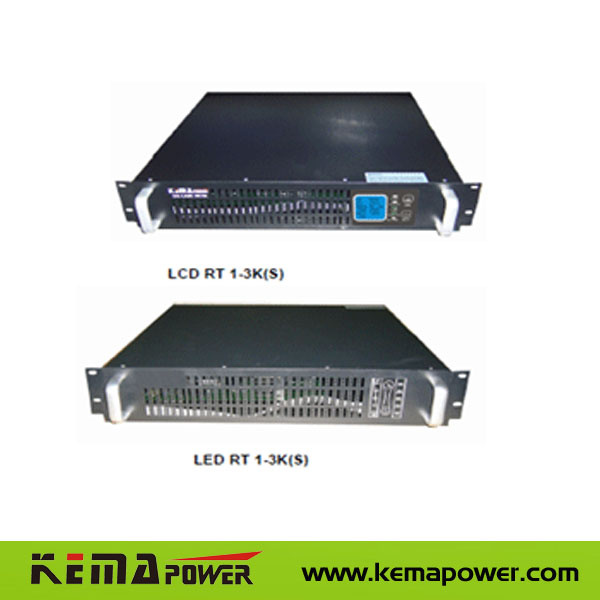

RT 1-3KVA High Frequency Rack Mounting Online UP * I/P: 220VAC/ 110VAC; O/P:220/110VAC+-2%
* Capacity:1KVA / 2KVA / 3KVA
* Output PF: 0.9 or 0.8
* Wave Form:Pure sine wave
* Transfer Time:0 ms ,RS232 or USB communication
* DC Voltage: 1K,36VDC; 2KVA & 3KVA, 96VDC
* Bat.:1KVA, 3PCS7.2AH ; 2KVA & 3KVA, 8PCS7.2AH
1KVA 2*7AH, 2/3K 6*7AH Option or The Others,External Batttery
1.Rack Mounting High frequency double conversion online UPS
2.Single Phase,0.9/0.8PF
3.Fully digitized microprocessor control
4.Wide input voltage range
5.Advanced PFC technology
6.Self-testing when UPS startup
7.Advanced battery management
Automatic battery charging in UPS off mode
8.Lightning and surge protection
9.Short circuit and overload protection
10.Smart RS232 communication with monitoring software
11.Battery voltage and load capacity display
12.LCD Disply ,SNMP card , USB Communication is option
Technical Specifications | Item | Model | RT1K | RT1KS | RT2K | RT2KS | RT3K | RT3KS |
| Capacity | VA / Watts | 1KVA/ 0.9KW | 1KVA / 0.8KW | 2KVA/ 1.8KW | 2KVA / 1.6KW | 3KVA/ 2.7KW | 3KVA / 2.4KW |
| Input | Normal voltage | 220VAC/ 110VAC |
| 220V Voltage range | a) (110±5 ~ 300±5) VAC when Load at 0-60% |
| b) (120±5 ~ 300±5) VAC when Load at 60-70% |
| C) (140±5 ~ 300±5) VAC when Load at 70-80%, |
| D) (160±5 ~ 300±5) VAC when Load at 80-100% |
| 110V Voltage range | 80-150VAC |
| Power Factor | 0.97 |
| Frequency range | Normal 50HZ/60HZ±4, 40~70Hz(set by winpower) |
| Output | Voltage range | 220/110VAC+-2% |
| Frequency range | 50Hz/60Hz+-0.2 (Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer time | 0 ms (AC mode and battery mode) |
| Transfer time: 4ms (typical 2.5ms),AC mode and bypass mode |
| Distortion (Full Load) linear load | ≤3% | ≤3% | ≤4% | ≤4% | ≤4% | ≤4% |
| Degree of distortion (Full Load) nonlinear load | ≤6% | ≤6% | ≤7% | ≤7% | ≤7% | ≤7% |
| Overload capacity | >108% 30s turn to bypass mode; >150%, 300ms turn to bypass |
| Load peak ratio | 3:1(max) |
| Battery Pack | Model | UPS Internal | N/A | BP807 | N/A | BP807 | N/A |
| Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 36VDC | 36VDC | 96VDC | 96VDC | 96VDC | 96VDC |
| Battery number | 3*12V*7.2AH | External | 8*12V*7.2AH | External | 8*12V*7.2AH | External |
| Backup time (Full load) | >5Mins | depended on battery | >9Mins | depended on battery | >5Mins | depended on battery |
| Backup time (Half load) | 14Mins | depended on battery | 21Mins | depended on battery | 15Mins | depended on battery |
| Recharge time | 90%capacity after 5 hrs charging | depended on battery | 90%capacity after 5 hrs charging | depended on battery | 90%capacity after 5 hrs charging | depended on battery |
| Bypass | | Automatic while overload or ups fail. |
| Before ON | Default ON. Workable set by Winpower |
| Voltage Range | Default 80-260V, workable set by WinPower to 80-286V |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault |
| LCD | Option | BAT % VDC, Input VAC HZ, Output VAC HZ , Load % |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery low |
| Overload | Beeping twice every second |
| Fault | Beeping Continuously |
| Communications | RS-232 Interface,With monitoring software,USB Option,SNMP NetAgent Option |
| Surge protection | RJ-45 I/O port available for network or Fax/Modem |
| Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| UPS Product size | WxDxH (mm) | 483 x 450 x 88 (2U) |
| UPS CTN size | WxDxH (mm) | 605*610*270 |
| UPS CTN weight | KG/PCS | 20/1PCS | 15/1PCS | 18/1PCS | 18.2/1PCS | 19/1PCS | 19.2/1PCS |
| BP Product size | WxDxH (mm) | 483 x 450 x 88 (2U) |
| BP CTN size | WxDxH (mm) | 605*610*270 |
| BP CTN weight | KG/PCS | included in ups | N/A | 305/1PCS | N/A | 35/1PCS | N/A |
| REMARK | RT*K --- Standard Type, RT*KS---- Long Time Type. |
