| Prod Model: |
Queen Star Series 6-20Kva |
| Noise: |
<55dB |
| Battery: |
Lead Acid Battery |
| Humidity: |
15%~90% |
| Switching Time: |
0ms |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Upsen |
Product Description

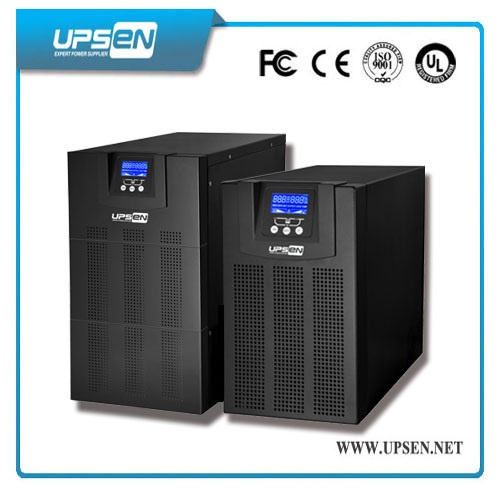

high frequency single phase 6-20KVA online ups with CE approve
Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)
Optional function
<1>RS232
<2>Converter
<3>SNMP
<4>USB+Intelligent Slot
<5>EPO:Emergency Power Off
<6>Output voltage/frequency adjustable
Key Features:
1:Intelligent SNMP Card slot available
2:Active Load Management, AVR function
3:Smart RS232 and USB communication interface
4:Miniaturization design, saving on invaluable space
5:Built-in Sealed lead acid, maintenance free battery
6:Advanced true double conversion On-line technology
7:Battery type is free maintenance lead acid battery
8:Wide Input frequency range can connect various fuel generator
9:Input PFC technology, reduce harmonic pollution to the power grid
10:True on-line double conversion technology with advanced microprocessor control
11:Intelligent battery management directly checking and setting charge and setting charge and discharge of battery on LCD extends battery life.
Applications
Communication systems,Portable lights,National Defense System,Office Automation,Telecom System,Network Rooms,Education System,monitor,security systems,information center etc.
Technical Specification
| Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |

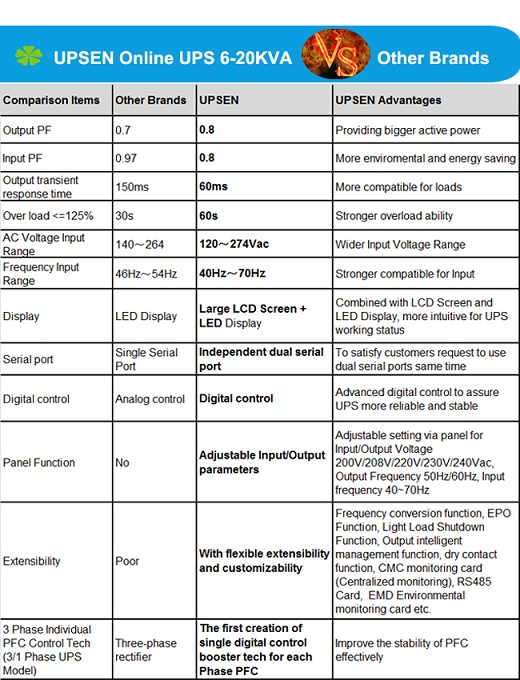

Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
