| Prod Model: |
Green Star Series 6-20Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waveform: |
Pure Sine Wave |
| Display: |
LED/LCD Indicators |
| Output Frequency: |
50Hz/60Hz |
| Frequency: |
High Frequency |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Upsen |
Product Description

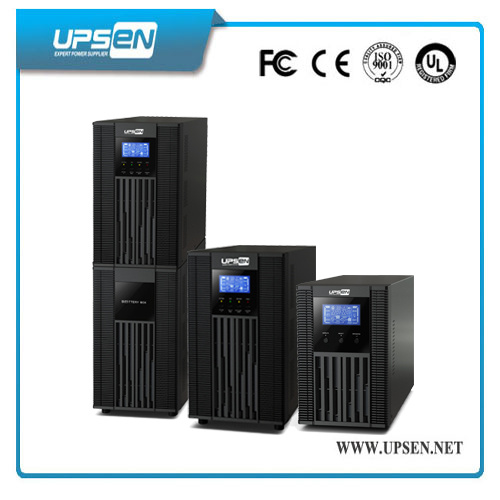

High Frequency Single Phase Online UPS with RS232 Port
Applications
Telecom systems
Monitoring,control systems,Automation systems,Data processing systems,,Emergency lighting systems
solar energy,wind energy,ship,satcom equip,communication,water pump,microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc
Key Features
1:Output power factor 0.8
2:Active input power factor correction 0.99
3:50Hz/60Hz frequency converter mode
4:Emergency power off function (EPO)
5:Adjustable battery number from 16 pcs to 20 pcs
6:Adjustable charging current via LCD or software (0.5A~6A)
7:Excellent microprocessor control optimizes reliability
8:High frequecny and double conversion online technology
9:Standard backup UPS and long backup UPS in one integrated unit
10:Generator compatibly and extemal battery connection achievable
11:Excellent Protection against over voltage, over load, over current, over charge and so on.
12:Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
13:Advanced IGBT-based the latest rectifier and inverter technology, high input power factor and low output harmonic
Technical Specification
| GREEN STAR 6K/10K ONLINE UPS SPECIFICATION |
| MODEL | G6K (L) | G10K (L) |
| PHASE | 1 phase in / 1 phase out |
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
| Low Line Comeback | 120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line Comeback | 290 VAC ± 3% |
| Frequency Range | | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 3 % THD (Linear Load)
<= 6 % THD (Non-linear Load) |
| Transfer Time |
Bypass to Inverter
(Line mode) |
Zero |
Inverter to Bypass
(Line mode) |
Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| Line Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Float Charging Voltage | 218.4 VDC ± 1% |
| Long-run Model | Battery Type | Depending on applications |
| Numbers | 16-20** (adjustable) |
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% |
Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model |
Dimension,
D X W X H (mm) |
369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 60 | 75 |
| Long-run Model |
Dimension,
D X W X H (mm) |
369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 21 | 23 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter |
Less than 58dBA
@ 1 Meter |
MANAGEMENT |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |

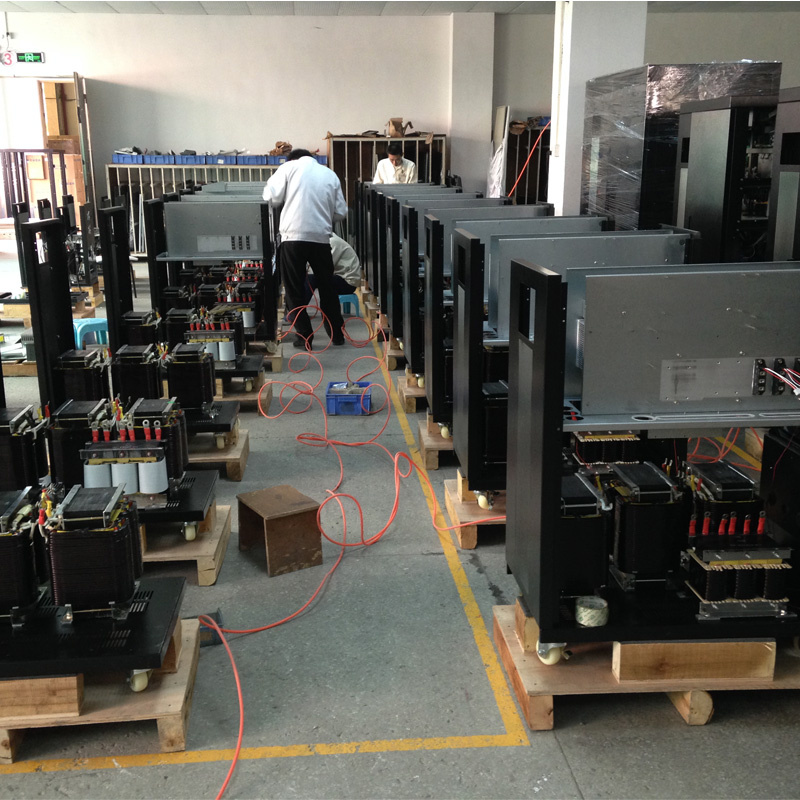

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
