| Prod Model: |
HW-M21 |
| Item: |
Microwave Sensor with Housing |
| Model: |
Hw-M21 |
| Frequency: |
10.525GHz |
| Input Voltage: |
185-265V |
| Output Voltage: |
185-265V |
| Current: |
20mA |
| Distance: |
8m(Default).5m.10m.15m.20m |
| Delay Time: |
45s(Default)1-1000s |
| OEM: |
Available |
| Type: |
Microwave Sensor Switch |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Application: |
Corridor |
| Size: |
120 Type |
| Certification: |
CE |
| Principle: |
Doppler |
Product Description

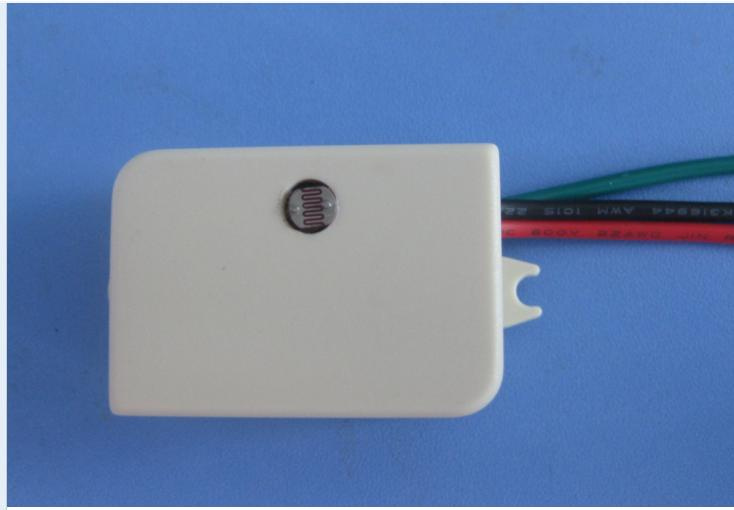

High Load Microwave Motion Sensor for Sensor Light(HW-M21)
Working Principle
Based on the Doppler, HW-M21microwave motion module can output the useful controllable electrical signals(H-1/L-0) after triggering the microprocessor to work once detected moving objects with the planar antennas which can transmit and receive the HF electromagnetic wave. It can work under 185-265V.
Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors, garage, corridor, roads, etc.
Specification
| Item | Microwave Sensor with Housing |
| Model | HW-M21 |
| Frequency | 10.525GHZ |
| Input voltage | 185-265V |
| Output voltage | 185-265V |
| Current | 20mA |
| Distance | 8m(default).5m.10m.15m.20m |
| delay time | 45s(default)1-1000S |
| Size | 20*25*36mm |
| OEM | Available |
Features
1.No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2.Wide coverage without blind zone because of its field pattern emission.
3.The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4.The signals can go through glass, door, wall and other obstacles.
5.Professional design of the microwave with flat antenna, low-power, ROSH and high product consistency.
Notes
1. Voltage, current, distance, time and size can be customized.
2. Customized distance ranging from 1-20m; customized time ranging from 1-1000s. Others can consult our engineers.
3.The module has reserved CDS photo-resistance port that can be used in light control function. The default is "Repeating "
4.We suggest that you should use our regular products because we would charge extra fee on some customized projects. More details could talk with us.
