| Prod Model: |
M3030-G |
| Product Name: |
1W Green LED 3030 Diode |
| Current: |
350mA |
| Voltage: |
2.8-3.4V |
| Luminous Flux: |
70-90lm |
| Light Color: |
Green LED |
| Wavelength: |
520-530nm |
| Life-Span: |
30000 Hours |
| Warranty: |
3 Years |
| LED Manufacturer: |
OEM ODM Service |
| Honor: |
Top 10 Chinese Manufacturer |
| LED Packaging Type: |
Chip |
| Chip Material: |
InGaN |
| Beam Angle: |
120?? |
| Emitting Color: |
White |
| Power: |
1W |
| Life: |
30000h |
| Certification: |
CE |
| IP Rating: |
Na |
| Base Material: |
Pct |
| LED Chips: |
Epileds |
Product Description

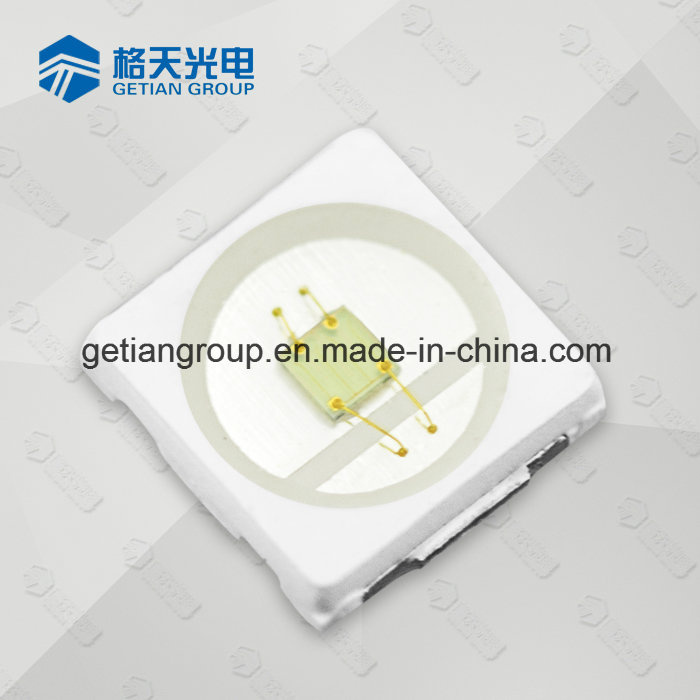

High Lumen Output Taiwan Epileds Chip 520nm 1W Green LED 3030 Diode
| Parameter | MIN | AVG | MAX |
| Power Dissipation | --- | 1W | --- |
| Forward Voltage | 2.8V | 3.0V | 3.4V |
| Forward Current | --- | 350mA | --- |
| Peak Forword Current | --- | --- | 350mA |
| Luminous Flux | 70LM | 80LM | 90LM |
| Wavelength | 520nm | 525nm | 530nm |
| Light Color | | GREEN | |
| Viewing Angle | | 120° | |
| Reverse Current(IR) | | | 10μA |
| Reverse Voltage(VR) | | | 5V |
| Welding Mode | Reflow soldering |
| Welding Temperature | | | 260ºC |
| Welding Time | | | 10S |
| Operating Temperature | -40ºC | | 60ºC |
| Working Humidity | | | 30%~70% |
| Storage Temperature | -40ºC | | 60ºC |
| Life Span | 30000H |
| Electrostatic Discharge | 2000V |
Shenzhen Getian High Lumen Output Taiwan Epileds Chip 520nm 1W Green LED 3030 Diode are applied to LED Tube Light, LED Panel Light, LED Bulb, LED Spot Light and LED Flood Light...which advantage is:
- IS09001:2008 Factory, SGS/ TUV Audited Factory
- Getian LAB accredited by CNAS
- Energy Saving over 50%
- Good raw material used: Taiwan Chip, USA Intermatix Phosphor, 99.99% purity gold wire etc...
- Brightness Decay can be as low as 3%.
- Equipped with 16 automatic production lines. ( Production capacity: 10KK high power led/month, 50kk smd led/month.)
- Competitive factory price with superior quality (strictly tested)
- High CRI. Ra>80, Ra>90 Available.
- Warranty: 3 Years
Other Color for 3030 SMD LED| Product Name | Current | Voltage | Lumens | Light Color | Wavelength |
| 3030 RED LED | 350mA | 2.8-3.4V | 25-35LM | RED | 620-630nm |
| 3030 GREEN LED | 350mA | 2.8-3.4V | 70-90LM | GREEN | 520-530nm |
| 5730 BLUE LED | 350mA | 2.8-3.4V | 15-25LM | BLUE | 460-470nm |
| 3030 YELLOW LED | 350mA | 2.8-3.4V | 10-20 | YELLOW | 585-595nm |
| 3030 AMBER LED | 350mA | 2.8-3.4V | 25-30LM | AMBER | 600-610nm |
| 3030 DEEP RED LED | 350mA | 2.8-3.4V | 5-15LM | DEEP RED | 650-660nm |
| 3030 IR LED | 350mA | 2.8-3.4V | 120-130mW | IR | 740-750nm |
| 3030 IR LED | 350mA | 2.8-3.4V | 30-60mW | IR | 845-850nm |
| 3030 UV LED | 350mA | 2.8-3.4V | 300-400mW | UV | 390-410nm |
| 3030 UV LED | 350mA | 2.8-3.4V | 150mW | UV | 360-370nm |

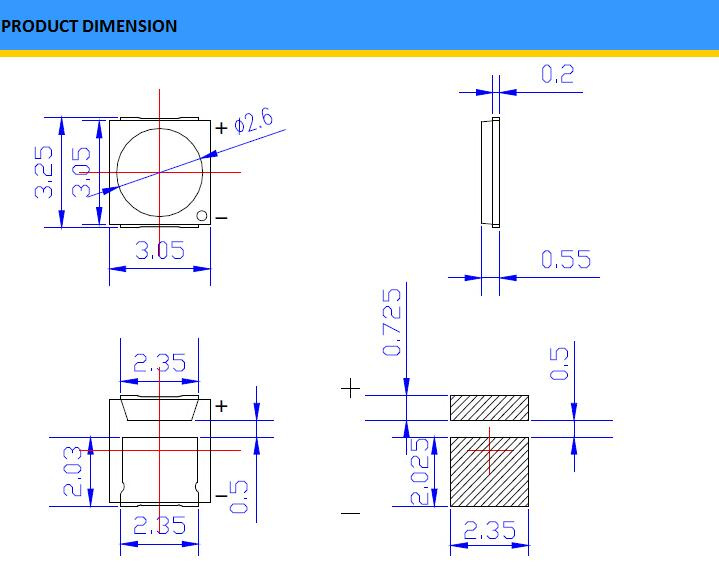

Product Dimension of High Lumen Output Taiwan Epileds Chip 520nm 1W Green LED 3030 Diode
Getian, established in 2005, is a professional first-class LED manufacturer mainly specializing in the R & D, production and sales of High Power LED 1-500W, Flip Chip LED 1-500W,SMD LED, LED drivers and Finished LED Luminaires for outdoor lighting.
Getian has achieved amazing LM-80 test resutls for high power led 1-300W Series.
Getian has a production area of more than 12,000 square meters with over 600 employees. ISO9001-2008 Quality Control System and ERP Management System have been introduced in 2009. Getian owns 15 fully automatic high power led production lines and a set of advanced equipment for flip chip led.
Getian equips with a high-level R & D lab that has been accredited by CNAS.
Product Lines:
1) High Power LED (1-3W, 360-850nm, CRI up to 95, up to 150LM/W) RGB, R, G, B, Y, A
2) LED COB/Module (1-500W, CRI up to 90, up to 120-130LM/W) RGB, R, G, B, Y, A
3) SMD LED (3528, 2835, 5050, 5730,3030, 0.06-1W, CRI up to 90, up to 120-140LM/W) ,RGB,R,G,B,Y,A
4) Flip Chip LED(2525, 3535, FC60,FC90,FC100,FC150,FC300, FCHB, FCSL)
5) LED Driver(LED Tube Driver, LED Down Light Driver, LED Panel Light Driver,LED Flood Light Driver..)
Guangdong Shenzhen GETIAN Development History:
2005: Lanuch High Power LED for Lighting Officially.
2006: High Power LED applied to Street Light. Promise 3 years Warranty.
2007: High Power LED COB goes to production. A full-automatic High Power LED production line.
2008: Establish standardized opto-electronics Lab. Focus on product of R&D that is customer-based. Obtain ISO9001 approval.
2009: Focus on outdoor lighting.( street light, flood light,etc) National New and High-Tech Enterprise.
2010: Annual output: 100 million watts. Pass America Energy Star LM-80
2011: Begin to develop Flip Chip LED. Define it as a future direction in product development
2012: R&D team focuses on Flip Chip project. Introduce fully automatic Flip Chip Production Line.
2013:The first Flip Chip Module launched and gain approval from customers.
2014: Launch 3 types Flip Chip COB LED( for stage light)
2015: Focus on High-end commerical lighting-professional segment market of projector, automobile and medical treatment etc. Energy Star LM-80 Certificate for 80W COB LED & 300W COB LED. CNAS LAB

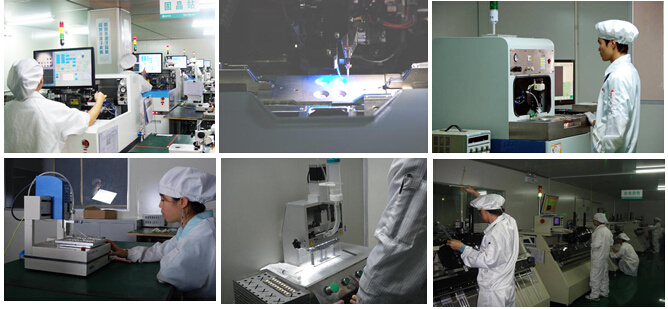

GETIAN FACTORY TOUR:
MAIN MANUFACTURING PROCESS
DIE BONDING--WIRE SOLDERING--PHOSPHOR SPRAYING--SILICA GEL INJECTION--COLOR SEPARATION
WHY GETIAN LEDS?
GETIAN is a Market-Leading LED Manufacturer and Solution Provider.
Strong R & D Forces
* A strong R & D team of more than 40 experienced engineers.
* CNAS Accredited Laboratory.
* Launch highly-competitive new products seasonly.
* Revolutionary launch for a full series of high power & high integration ceramic flip chip led.
Extensive Application Experience & Quality Commitment
* Strict control over raw materials selection.
* 5 Years Warranty;
* Reliable long life span; LM-80 certification for High Power LED 1-300W.
* More than 10 years' experience in Outdoor Lighting application both in domestic and overseas market.
* Supported many government lighting projects.
Outstanding Service Level
* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.
Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.
Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.
With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.
Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.
Warmly welcome all fields of friends to visit our company and negotiate trade.
