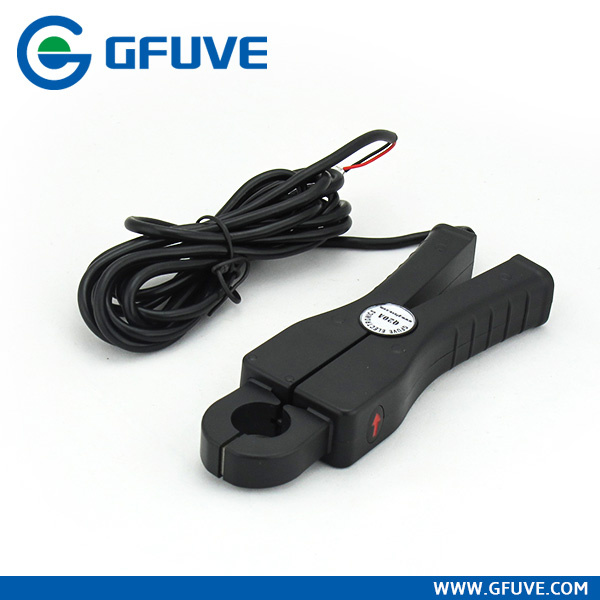

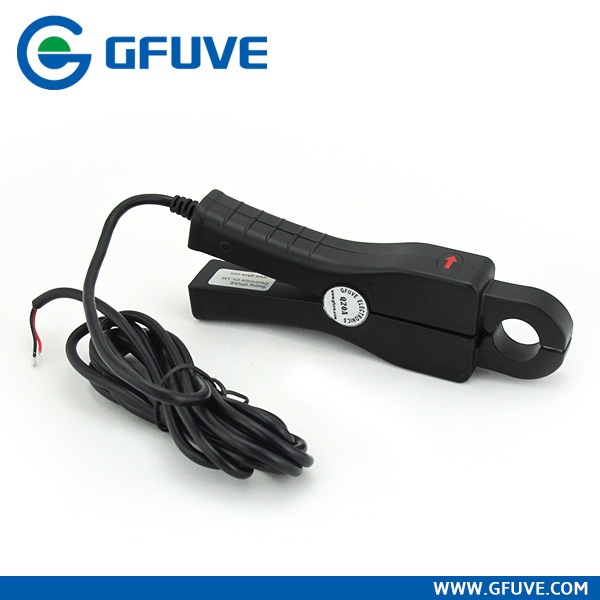

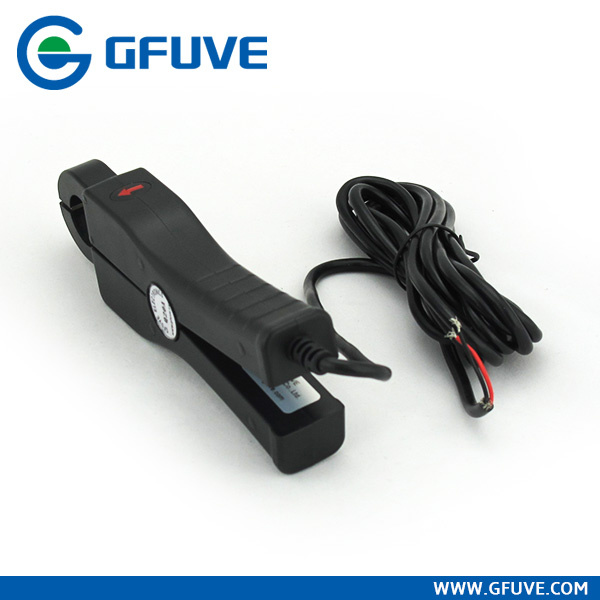

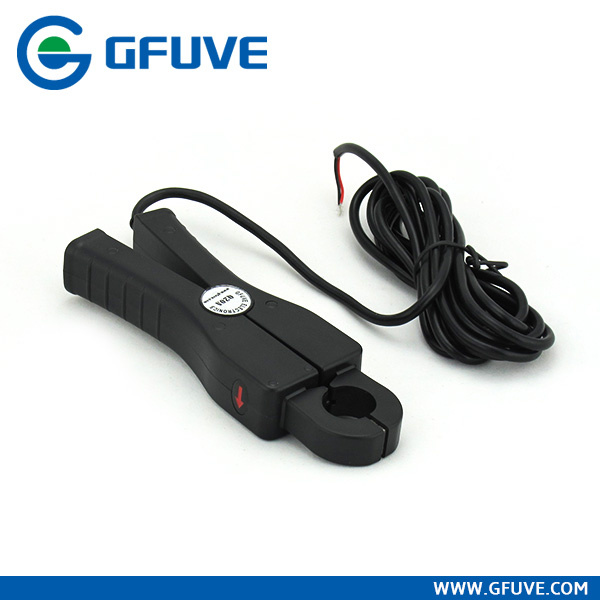

High Performance Cable Current Measuring Device

Name: High Performance Cable Current Measuring Device
Brand: all-electronics-online.com
SKU: 688765302
Availability: InStock
Rating: 5 (103 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q20A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hot Searching:	Clamp-on Sensor
Features:	Low Phase Shift for Power Measurement
Measurement Range:	1mA to 800A AC
Nominal Input Current:	800A
Output Signal:	200mA AC at Nominal Input Current
Accuracy:	0.1%, 0.2%, 0.5 %
Max. Jaw Opening:	50mm
Dimensions:	94mm X 210mm X 22mm
Weight:	600g
Output Model:	Lead Output
Application:	Instrument

Product Description

Characteristic and application: Suitable
For 200 A cable online measurement.
But holding wire diameter: Φ 20mm
Dimension: 56mm× 168mm× 27mm
(View outline drawing)
With load capacity: ≤ 4Ω
Installation: Clamp type
Output mode: Lead output

PARAMETER TABLE

Primary current	Secondary current	Compensation turns	Precision
5A	2.5mA	No	Class 0.2%
20A(40)A	2.5mA	No	Class 0.1%, 0.2%, 0.5%
20A	5mA	No	Class 0.1%, 0.2%, 0.5%
20A	10mA	No	Class 0.1%, 0.2%, 0.5%
30A	25mA	No	Class 0.1%, 0.2%, 0.5%
100A	20mA	No	Class 0.1%, 0.2%, 0.5%
100A	20mA	200 turns	Class 0.2%
100A	25mA	No	Class 0.1%, 0.2%, 0.5%
100A	40mA	No	Class 0.1%, 0.2%, 0.5%
100A	40mA	400 turns	Class 0.2%
100A	50mA	No	Class 0.1%, 0.2%, 0.5%
100A	50mA	200 turns	Class 0.2%
100A	100mA	No	Class 0.2%
100A	100mA	200 turns	Class 0.2%
120A	200mA	No	Class 0.5%
150A	50mA	No	Class 0.1%, 0.2%, 0.5%
150A	100mA	No	Class 0.1%, 0.2%, 0.5%
150A	150mA	No	Class 0.1%, 0.2%, 0.5%
200A	100mA	No	Class 0.1%, 0.2%, 0.5%
200A	80mA	No	Class 0.1%, 0.2%, 0.5%
200A	50mA	No	Class 0.1%, 0.2%, 0.5%
200A	200mA	No	Class 0.1%, 0.2%, 0.5%

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
