| Prod Model: |
AM-612 |
| Item: |
Digital Infrared Sensor |
| Model: |
Am612 |
| Output Signal: |
Digital Type |
| Window Size: |
4.2*5.2mm |
| Encapsulation: |
T0-5 |
| Wavelength: |
5-14um |
| Pins: |
6 |
| Power Voltage: |
3-15V |
| Supply Voltage: |
2.7-3.3V |
| Working Current: |
12-20ua |
| Detection Type: |
PIR Detector |
Product Description
High Performance Digital Infrared Motion Sensor for Alarm SystemPIR Infrared Detector Technical Data 1. Maximum Ratings
| Parameter | Symbol | Min | Max | Unit | Remarks |
| Supply Voltage | VDD | -0.3 | 3.6 | V | |
| Operating Temp | TST | -20 | 85 | °C | |
| Current into any pin | Into | -100 | 100 | mA | |
| Storage Temp | TST | -40 | 125 | °C | |
2. Operating Conditions (T=25°C, VDD=3V, Except Other Requirement)
| Parameter | Symbol | Min | Typical | Max | Unit | Remarks |
| Supply Voltage | VDD | 2.7 | 3 | 3.3 | V | IR=0.5mA |
| Working Current | IDD | 12 | 15 | 20 | uA | |
| Sensitivity Threshold Value | Vsens | 120 | | 530 | uV | Ajustable |
| Output REL |
| Output Low Current | IOL | 10 | | | mA | VOL<1V |
| Output High Current | IOH | | | -10 | mA | VOH>(VDD-1V) |
| REL Low Level Output Blockade Time | TOL | | 2.3 | | Second | Non-ajustable |
| REL High Level Output Delay Time | TOH | 2.3 | | 4793 | Second | Ajustable |
Product DescriptionAM612 is a newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution,with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions which can include ambient light level and sensitivity adjustments.
Features and Benefits1. Digital signal processing(DSP)
2. Power adjustable, save more energy
3.Two-way differential high impedance sensor input
4. Built-in filter, screen the interference by other frequency
5. Excellent power supply rejection, Insensitive to RF interference
6. Schmidt REL output
7. Low voltage, low power consumption, instantaneous settling after power up
ApplicationsToys
Digital photo frame
TV, Refrigerator, Air-conditioner
USB Alarms
PIR motion detection
Intruder detection
Occupancy detection
Motion sensor lights
Computer monitor
Security system
Automatic control for indoor, corridor and stairs lights, etc.

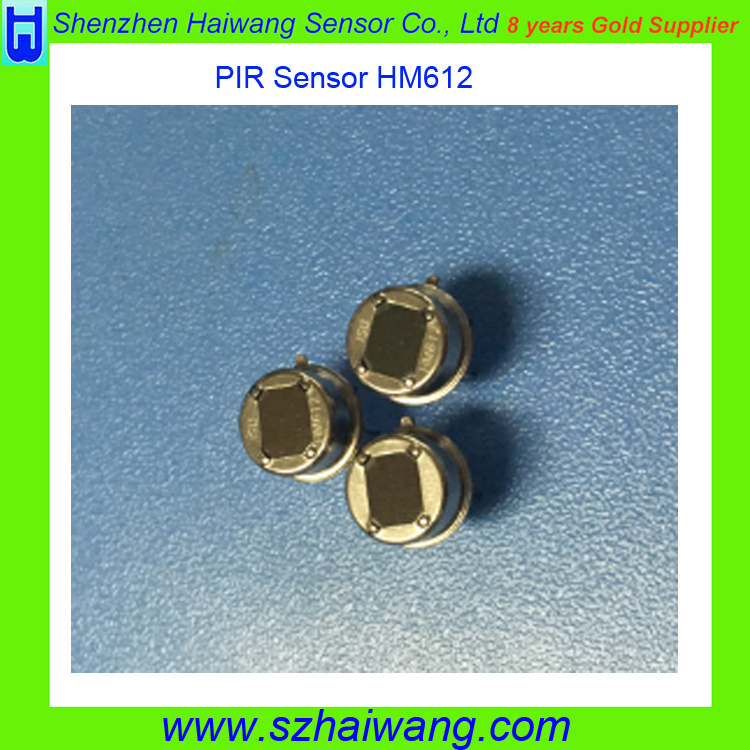

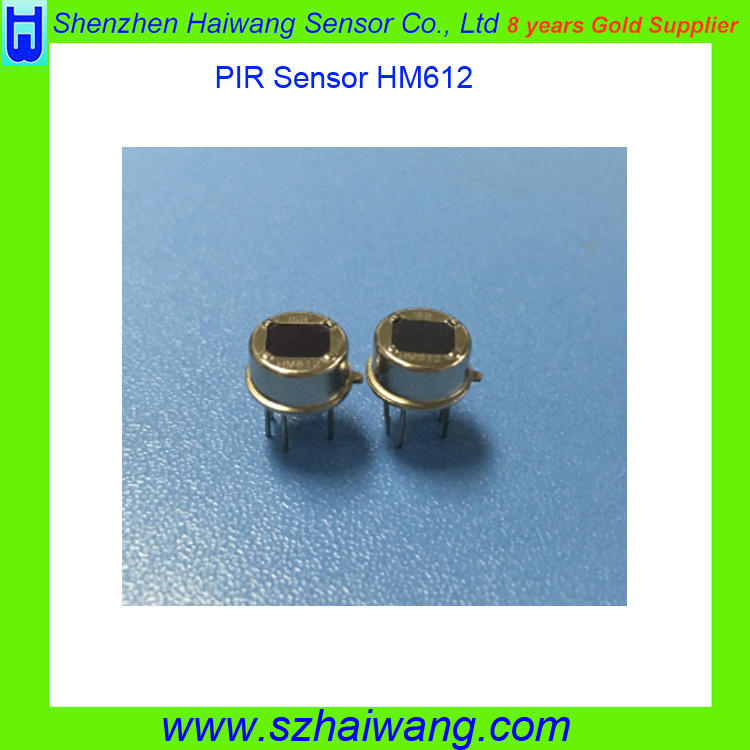

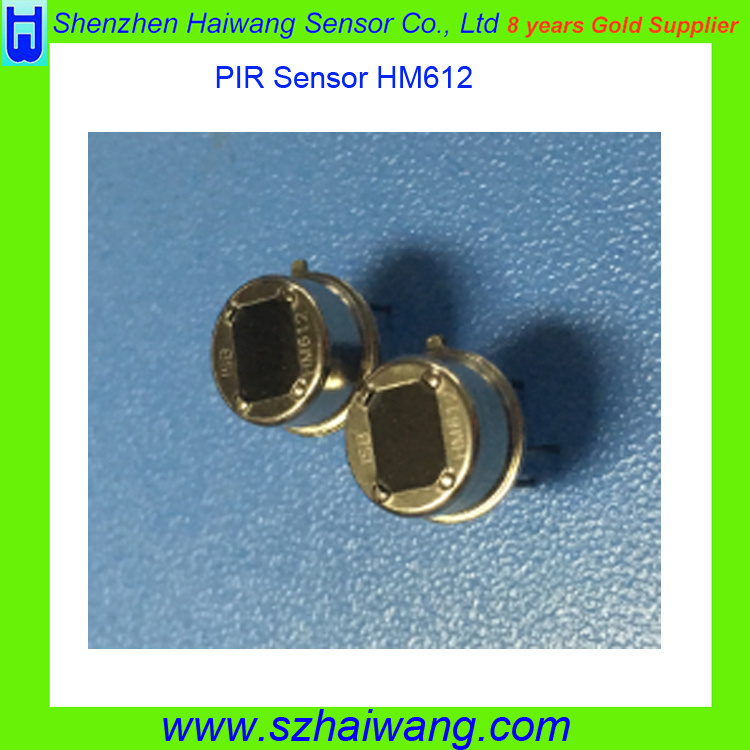

Picture Show
