| Prod Model: |
ES Solar Inverter |
| Color: |
White |
| Output Current: |
Load |
| Charging Current: |
Adjustable |
| Max. AC Power: |
4.2kw/5000va |
Product Description

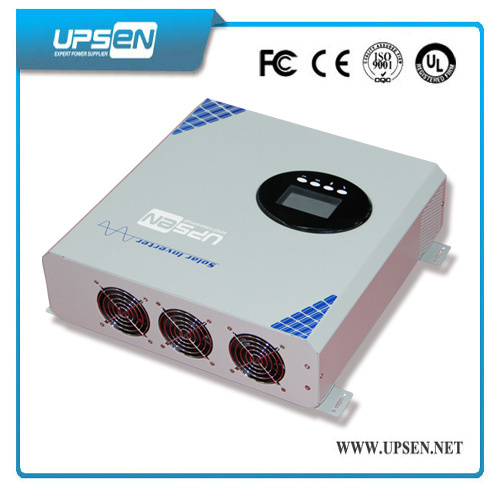

high performance full function frequency inverter pure sine wave inverter
Hybird Inverter Charger Empire Star Series 2.4KW / 2.4KW (1ph in/1ph out)
Features:
Topology
1>Function for calculate the solar gross generation
2>Charger:Fly back for 3k, half-bridge for 5k
3>SCC:buck for 3k, interleaved dual buck for 5k(for SCC model only)
4>LCD display help you to know about the system working condition easily
5>Inverter + SCC(Solar charge controller)(for SCC model only)Pure Sine wave output voltage.
Charger
1)(On/Off controlled by CPU)
2)Three stage charger / ABM
3)Automatically transfer between battery and line modes
4)Charger works even if the input switch is in OFF position, whatever input voltage threshold
1:MPPT
2:SCC-for SCC model only
3:Multifunction Provide
4:Three-stage battery charge protection
5:Charger for battery when SCC is available
| ES Solar Inverter |
| Model No. | ES3000 | ES3000S | ES5000 | ES5000S |
| CAPACITY | 2.4KW/3000VA | 4.2KW/5000VA |
| INPUT |
Input Voltage
Waveform | Pure Sine Wave (utility or generator ) |
Nominal Input
Voltage | 230Vac |
Input Voltage
Range | 170Vac~280Vac(Normal);
90Vac-280Vac(Generator / Wide) | 170Vac~280Vac(Normal);
125Vac-280Vac(Generator / Wide) |
Max AC
Input Voltage | 300Vac RMS |
Nominal Input
Frequency | 50Hz / 60Hz(Auto detection) |
| OUTPUT |
| Wave form | Pure sine wave (Inverter mode) |
Voltage Regulation
(Inverter Mode) | ±10% RMS |
| Output Frequency | 50Hz / 60Hz ±1Hz |
| Nominal Efficiency | 90%(@Inverter mode with normal DC Input;>60% R load);
95%(@Inverter mode with Rated R load,battery full charger); |
Capable of starting
electric motor | 1.5H | 2.5H |
| Power Factor | 0.8 | 0.84 |
Over-Load
Protection | Tripped off after 5s ≥150% load
Tripped off after 10s ≥110%~150% load |
| Transfer Time | Normal range:10ms(typical) 15ms(max)
Generator / wide renge : 20ms (typical) 40ms(max) |
| Power Limitation | | |
| BATTERY |
| Battery Voltage | 24.0Vdc±0.6Vdc | 48.0Vdc±0.6Vdc |
Battery low
alarm voltage | 21.0Vdc±0.6Vdc | 42.0Vdc±1.2Vdc |
Battery low
shut-down voltage | 20.0Vdc±0.6Vdc | 40.0Vdc±1.2Vdc |
| AC CHARGER |
| Charger Current | 10A/20A selectable
10A Vi/p<170Vac or Vi/p>280Vac; 20A Vi/p=230Vac | 10A selectable
10A Vi/p<200Vac or Vi/p>280Vac |
Boost Charger
Voltage (bat.Type) | 28.4Vdc | 56.8Vdc |
Floating Charger
Voltage (bat.Type) | 27.4Vdc | 54.8Vdc |
Over Charger
Voltage | 30.0Vdc | 58.0Vdc |
| PV CHARGER |
| Charger Current | No PV Charger | 40A+5%/-10% | No PV Charger | 60A+5%/-10% |
Bulk Voltage
/ floating Voltage | 28.4V±0.6V/
27.4V±0.6V | 56.8V±1.2V/
54.8V±0.6V |
| Efficiency | maximum of 95% | maximum of 95% |
| Input range | 0-75V(±5%) | 0-150V(±5%) |
PV charge
work range | Bat.V+2V to 75V(±5%) | Bat.V+2V to 150V(±5%) |
| Storage temperature | -5ºC~60ºC |
| AUDIBLE ALARM |
Low battery
at inverter mode | Beeps 1 time every 2s |
| Over load | 110%~150% load:beep 10 times every 0.5s
>150% load:beep 5 times every 0.5s then fault |
| Fault | Beeps continuously |
| PHYSICAL |
| Net Weight(KG) | 5.2 | 8.2 |
| Dimension,D*W*H(mm) | 318*268.4*85.2(mm) | 428.5*350.4*119(mm) |
| *Specification is subject to change without prior notice. |
