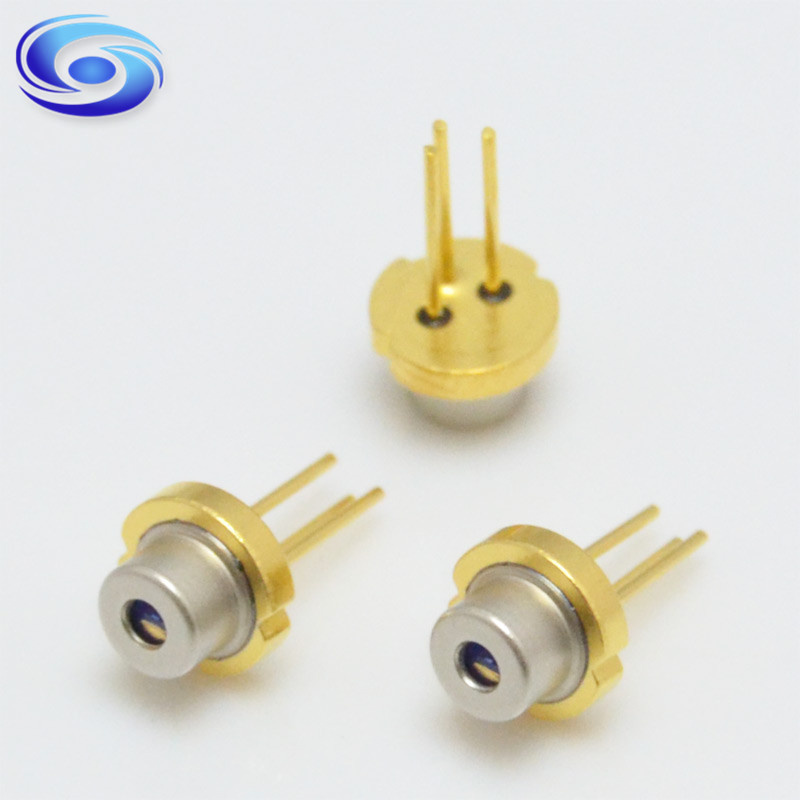

High Performance Jdsu 850nm 300MW Infrared Laser Diode

High Performance Jdsu 850nm 300MW Infrared Laser Diode
Price: US $ 6.3-9.3/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JLD850-300MW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelength: 840nm~860nm
Optical Output Power: 300MW Cw
Can Type: To18-5.6mm
Light Color: Infrared
Threshold Current: 80mA Typ.
Life Time: 10000 Hours
Reverse Voltage: 2V
Operating Current: 450mA
Operating Voltage: 1.8V
Operating Temperature: -10~+40 Degree

Product Description

Features:
1. Optical power output: 100mw (CW)
2. Wavelength: TYP.850nm
3. φ5.6mm package




Absolute Maximum Ratings    (Tc=25ºC)
ParameterSymbolRatingsUnit
Optical Output PowerPo(CW)300mW
Reverse VoltageVr 2V
Operating TemperatureTop-10~40ºC
Storage TemperatureTstg-40~+80ºC


Electrical/Optical Characteristics ( Tc=25ºC)

Parameter   Symbols  Conditions  Min  Typ  Max Units
Threshold Current     Ith      -   -  80  120  mA
Operating Current     Iop  Po=300mW   -  450  550  mA
Operating Voltage     Vop  Po=300mW   -  1.8  2.1 Volts
Slope
Efficiency

     η
-
  0.6

  0.8

  -

mW/mA
Beam Divergence
(FWHM)
Parallel    θ  Po=300mW   9   12  15  deg
 Perpendicular    θ⊥  Po=300mW   28   30  35  deg
Parallel Deviation Angle   θ  Po=300mW   -3   -   3  deg
Perpendicular Deviation Angle   θ⊥  Po=300mW  -3   -   3  deg
Emission Point Accuracy X,Y,Z  Po=300mW  -80-80  um
Lasing Wavelength     λp  Po=300mW  840  850  860  nm


Description:
 1. Small Package 5.6mm Diameter.

  2. High power 850nm infrared IR laser diode 300mw.

  3. Cheap price high quality 850nm 300mw infrared laser diode .

   4.   Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.




Welcome Your Inquiry:
Name: Ms. Song
Tel: +86 13713250894
Dongguan Blueuniverse Laser Co.,Ltd



FAQ:
How to contact us ?
You can send messages to us on trademessenger directly, or send us a email.

Shipping Policy:
1. Item will be sent out within 1-3 working days after the payment is cleared.
2. it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
3. Most package will arrive within 3- 5 working days after it is sent out.


Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here , please inform us within 3 days of receipt. We can arrange replacement for you if the situation is confirmed.
