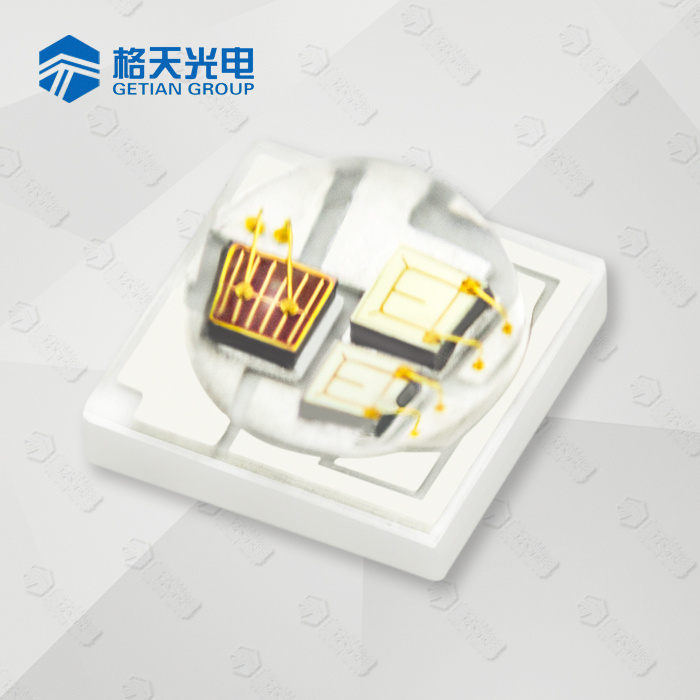

High Power 3W RGB 3535 LED Diode

Name: High Power 3W RGB 3535 LED Diode
Brand: all-electronics-online.com
SKU: 825314285
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 0.285-0.31/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-P35RGB2303
Product Name:	RGB 3535 LED
Color:	Red / Green / Blue
Wavelength(Nm):	R: 620-630nm / G: 520-530nm /B: 455-465nm
Voltage:	R: 2.0-2.5V/ G: 3.0-3.5V / B: 3.0-3.5V
Forward Current:	R: 350mA / G: 350mA /B: 350mA
Lumen:	R 30-40lm/ G 70-80lm/ B 15-25lm
Junction Temperature:	120 Centigrade
Warranty:	3 Years
Chip Material:	InGaN
Beam Angle:	120??
Power:	3W
Life:	50000h
Certification:	RoHS
LED Packaging Type:	SMD
Emitting Color:	RGB
LED Chips:	Epileds

Product Description

High Power 3W RGB 3535 LED Diode

Product Features

· SMD packaging high power led type.
· Compact design 3 in 1/4 in 1 RGB-W-W LEDs
· Exclusive chip source & Unique phosphor coating technology
· Super small space between chips offering outstanding color mixing performance.
· Outdoor landscape lighting, stage lighting, smart lighting, etc.

Model	Power	Wavelength /CCT	Current	Volt	LM	Dimension
Model	Power	Wavelength /CCT	Current	Volt	LM	Dimension
GT-P35RGB	3W	R: 620-630nm G: 520-530nm B: 455-465nm	R,G, B: 350mA	R:2.0-2.5V G: 3.0-3.5V B: 3.0-3.5V	R: 30-40 G: 70-80 B: 15-25	3.55*3.55mm/ 120 deg
GT-P35RGBW	4W	R: 620-630nm G: 520-530nm B: 455-465nm W: 6000-6500K	R,G, B,W: 350mA	R:2.0-2.5V G: 3.0-3.5V B: 3.0-3.5V W: 3.0-3.5V	R: 30-40 G: 70-80 B: 15-25 W: 80-110	3.55*3.55mm/ 120 deg
GT-P35RGBWW	4W	R: 620-630nm G: 520-530nm B: 455-465nm WW: 2800-3200K	R,G, B,WW: 350mA	R:2.0-2.5V G: 3.0-3.5V B: 3.0-3.5V WW: 3.0-3.5V	R: 30-40 G: 70-80 B: 15-25 W: 80-110	3.55*3.55mm/ 120 deg

Packing Details (Unit:mm)

3535 RGB LED Packaging:1000pieces/ reel

Company Introduction

Shenzhen Getian, established in 2005, is a professional and innovative integrated led manufacturer specializing in
high power led & COB packaging, LED drivers, industrial lighting and molding.

Product Range:

3-400W MSA COB Series
10-400W Copper COB Series
3535 RGB & RGBW Series
Color LEDs 280-850nm Series
Flip Chip LEDs 60-300W
SMD LED Series
LED Drivers 8-150W
Industrial Lights (High Bay/Flood Light/Street Light)

Our Service:

PCB design & Reflow soldering service
COB/LED/Drivers customization
Mold development (Plastic injection & Die casting)
Representatives in the UK, Korea and Czech.
* ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
