Dongguan Blueuniverse Laser Co., Ltd. >> High Power C-Mount Red 650nm 500MW Laser Diode

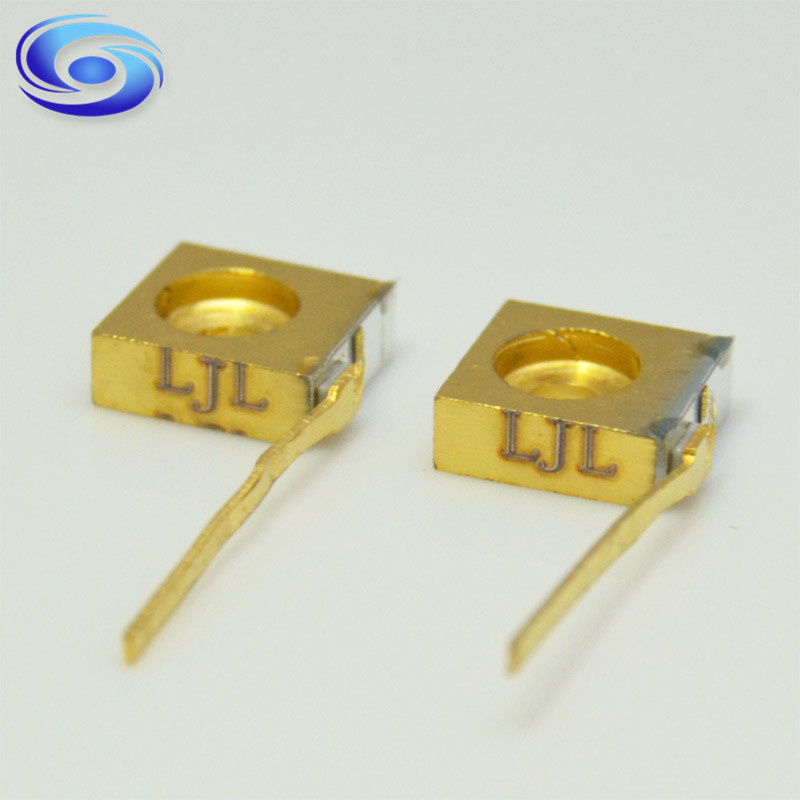

High Power C-Mount Red 650nm 500MW Laser Diode

High Power C-Mount Red 650nm 500MW Laser Diode
Price: US $ 52-56/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: JLD6550Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelength: 650nm
Output Power: 500MW
Color: Red
Operation Current: 1A
Operation Voltage: 2V
Storage Temperature: -40 to +80 Degree
Operation Temperature: +18 to + 22 Degree
Quality: Brand New
Lifetime: 10, 000hours
Price: Lower Price
Manufacturing Technology: Optoelectronic Semiconductor
Material: Element Semiconductor
Type: Intrinsic Semiconductor
Package: C-Mount
Application: Laser Module, Laser Light, Laser Pointer
Model: Jld6550z
Brand: 650nm 500MW Laser Diode

Product Description


Specification:
Wavelength: 650nm
Output Power(CW): 500mw
Can Type: C-Mount


Absolute Maximum Ratings (Tc=25ºC)

Parameter
SymbolValues  Unit
Min.Max.
Operating CurrentIf

1000mA
Reverse VoltageVr-2V
Operating Case TemperatureTc+18+22ºC
Storage TemperatureTstg-40+80ºC



Electrical and Optical Characteristics (Tc=25ºC)

Parameter
SymbolMin.Typ.Max.Unit
Optical Output PowerPo-500

mw
Emission Wavelengthλp650655660nm
Threshold CurrentIth-85-mA
Operating CurrentIr-1000

mA
Operating VoltageVop-2.02.4V
Modulation Frequencyf->100-MHz


2.Packing and Delivery for 650nm 500mw laser diode
Packing:
1.100 pieces/box, 10 boxes /carton.
2. Plastic box package ,C-mount package.
3. It based on the laser diode kind, each kind has different size.


Delivery for 650nm 500mw laser diode:
delivery time:1~3 days
delivery way:DHL,Fedex,UPS or other way as your demand.

3.Appliceation for 650nm 500mw laser diode:
Laser Module
Industrial Use
Lase Pointer
Laser light
Laser sight

                                                   Name: Ms.Abby
                                                     Tel: + 86 18692018546

4. FAQ for 650nm 500mw laser diode:
1)Q: Where is your company located? How can I visit there?
  A:Our company is located in Dongguan, China. All our clients, from home or
abroad, are warmly welcome to visit us!

2)Q: Can I order samples of 650nm 500mw laser diode first to test the qualty?
  A: Yes, samples ae in stock for you.

3)Q: How to pay for 650nm 500mw laser diode?
  A: We accept T/T, Paypal, Western union, Moneygram, If you use other
payment terms, please feel free to contact us!

4)Q: Have you other laser diode?
   A: We offer 405nm, 450nm, 515nm, 520nm, 532nm, 635nm, 650nm, 780nm, 808nm, 830nm, 850nm, 980nm laser diode and laser module.
Dongguan Blueuniverse Laser Co., Ltd. Was started in 2006, and established in 2015, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, LED light source as the center and we are still continuously researching and developing the laser peripheral areas.

Main products are included below but not limited:

Semiconductor laser diode, laser module, bicycle rear light, head light, bicycle wheel light, laser fog light, laser power bank.

Since 2006, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sterilization, physical therapy, stage, measurement, advertisement, outdoor ridding and other industries.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

We devote ourselves to developing good quality products, and supplying better products and services. Our strategy for successes is to follow the advanced and the latest technologies all the time and to make contribution to the optical enterprise.
