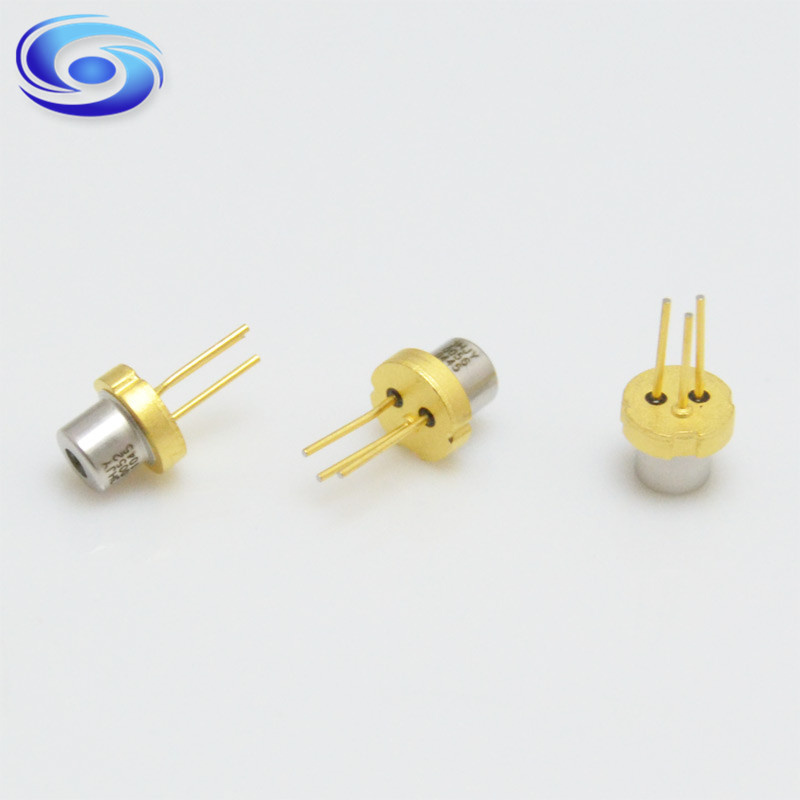

| Prod Model: |
ML101J24P |
| Peak Wavelength: |
654nm~662nm |
| Light Output Power: |
100MW Cw |
| Can Type: |
To18-5.6mm |
| Light Color: |
Red |
| Life Time: |
10000 Hours |
| Power Characteristic: |
High Power |
| Reverse Voltage: |
2V |
| Operating Current: |
170mA |
| Operating Voltage: |
2.5V |
| Case Temperature: |
-10 ~ +75 Degree |
Product Description
Features:
High Output Power: 100mw (CW)
High Efficiency: 0.95W/A (typ.)
Visible Light: 658nm (typ.)
Absolute Maximum Ratings (Tc=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Light Output | CW | 100 | mW |
| Pulse | 260 | mW |
| Reverse Voltage (LD) | VR | 2 | V |
| Operating Temperature | Top | -10~+75 | ºC |
| Storage Temperature | Tstg | -40~+100 | ºC |
Electrical/Optical Characteristics ( Tc=25ºC)
| Item | Symbol | Min | Typ | Max | Unit | Test Condition |
| Threshold current | Ith | - | 65 | - | mA | CW |
| Operating current | Iop | - | 170 | | mA | CW, Po=80mW |
| Operating voltage | Vop | - | 2.5 | 3.0 | V | CW, Po=80mW |
| Slope efficiency | h | - | 0.95 | - | W/A | CW, Po=80mW |
| Beam divergence angle(Parallel ) | θ | 7 | 9.5 | 12 | º | CW, Po=80mW |
| Beam divergence angle(Perpendicular) | θ⊥ | 14 | 17 | 20 | º | CW, Po=80mW |
| Peak wavelength | λp | 654 | 660 | 662 | nm | CW, Po=80mW |
Description:
1. ML101J24 is a high-power,high-efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 658nm and standard pulse light output of 260mW.
2. ML101J24 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance.
3.Also,ML101J24 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation.
4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
