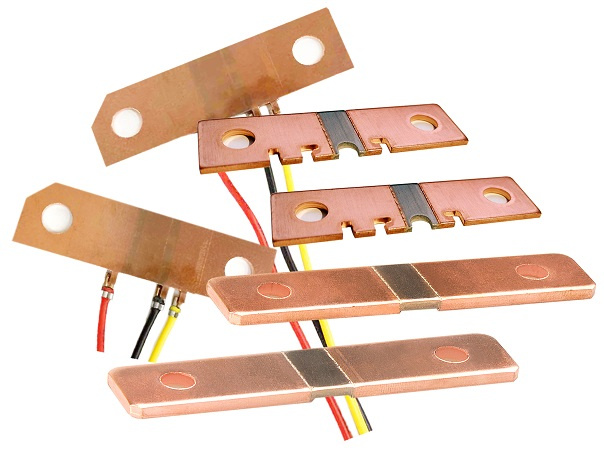

High Power Current Shunts

Name: High Power Current Shunts
Brand: all-electronics-online.com
SKU: 691452161
Availability: InStock
Rating: 5 (87 reviews)

Price:	US $ 0.1/Piece
Min Order:	5000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RCS 36W
Resistance:	Fixed Resistor
Function For Resistance:	Sampling Resistor
Installation:	SMD Resistor
Package Type:	Surface Mount
Material:	Alloy
Type:	Current Sensing Shunt
Application:	Cars and Battery Control
Brand:	Thunder

Product Description

Features of high power alloy made of current sensing shunts

· Long term stability
· Low temperature coefficient
· Pules loading capability up to 1000W
· Maximum power loading up to 36W for RCS8420 and RCS8418
· Customer oriented sensing terminal available upon request
· Resistance range from 100μΩ to 500μΩ

APPLICATIONS

· RV battery monitor and battery chargers
· Marine battery monitor and battery chargers
· Golf cart batteries and chargers
· Digital panel meter Ammeter
· Wheelchair batteries and chargers
· Solar Power batteries and chargers
· Wind Power generators, batteries and chargers
· Electroplating and metal plating Amp Hour measurement
· Ham Radio & Amateur Radio base station equipment, battery monitoring and chargers
· Electric bike batteries and chargers
· Power supply with high reliability

Ordering code
RCS 8418 36 T J 2 E L100
(1) (2) (3) (4) (5) (6) (7) (8)

Series type: RCS (Resistors of High Power Alloy Current Shunt)
Size: 8418
Power rating: 36 = 36W; I_max = 600A
Sensing terminal type: A; B; C; as showing in dimension figures. Customer oriented sensing terminal available upon request
Resistance Tolerance: F(±1%); G(±2%); J(±5%)
Temperature coefficient: 1= ±75ppm/ºC; 2= ±50ppm/ºC
Packaging Material: E = Emboss
Resistance Code: L100 = 100μΩ

Unless otherwise specified, all values are tested at the following condition:
Temperature: 21ºC to 25ºC and Relative humidity: 45% to 70% via four pint probes testing system.

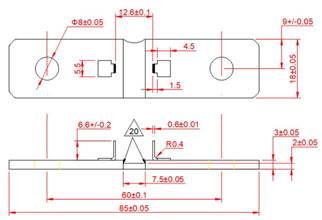

Dimensions

TYPE A

TYPE B

TYPE C

Thunder Precision Resistor Co., Ltd. is a 25 years experienced professional manufacturer of high precision resistors and ultra-high precision resistors and varies special resistors as well as hgih precision resistor netwouds.

All production is strictly controlled and follows an extensive set of instructions established in production procedure for reproducibility which was introduced from Europe in 1988.

The quality of the products is always the first priority in Thunder Precision Resistors that is our company quality policy.

BSI issued ISO9000 Quality Management Certificate to Thunder Precision Resistors in 1998 and upgraded it in June 2016 to ISO9001: 2015.

We are going to get the certificate of IATF16949: 2016 by the end of the year that is automotive sector quality management systems updated from TS16949-2009 in Oct., 2018
