High Power Metal Foil-Current Sensing Resistors

Name: High Power Metal Foil-Current Sensing Resistors
Brand: all-electronics-online.com
SKU: 691452071
Availability: InStock
Rating: 4.3 (35 reviews)

Price:	US $ 0.1/Piece
Min Order:	5000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LFS series
Resistance:	Fixed Resistor
Function For Resistance:	Sampling Resistor
Installation:	SMD Resistor
Package Type:	Surface Mount
Material:	Alloy
Type:	Current Sensing Shunt
Application:	Cars and Battery Control
Brand:	Thunder

Product Description

High Power Metal Foil-Current Sensing Resistors

High Power Metal Foil-Current Sensing Resistors rectangular type

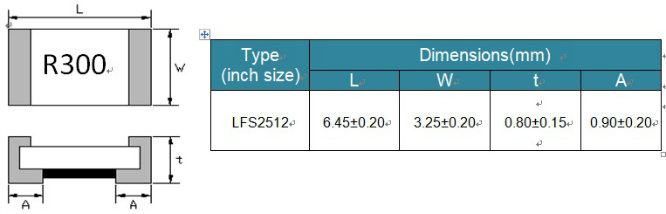

1. Dimension

2. Features

Chip size 2512
Resistance value from 5mW up to 300mW
Lead free, RoHs compliant for global applications and halogen free
Excellent long term stability

3.  Application
Switching Power Supply
Voltage Regulation Module
DC-DC Converter, Adaptor, Battery Pack, Charger
PDA & Cell Phone
Power management Applications
Current sensor for power hybrid sources
  High current handling for automotive engine

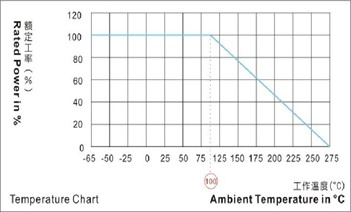

4. Derating

5.  Part Numbers

  LFS   2512    E       F      H     R300
(1)    (2)     (3) (4) (5)     (6)

(1) Series type: VMS (High Power Metal Foil Current Sensing Resistor)
(2) Chip size: 2512
(3) Packaging Material: Emboss (E)
(4) Resistance Tolerance: ± 1% (F), ± 2% (G), ± 5% (J)
(5) Power rating: H=3W
(6) Resistance Code: R300 means 300mW

6.  Environmental Characteristics

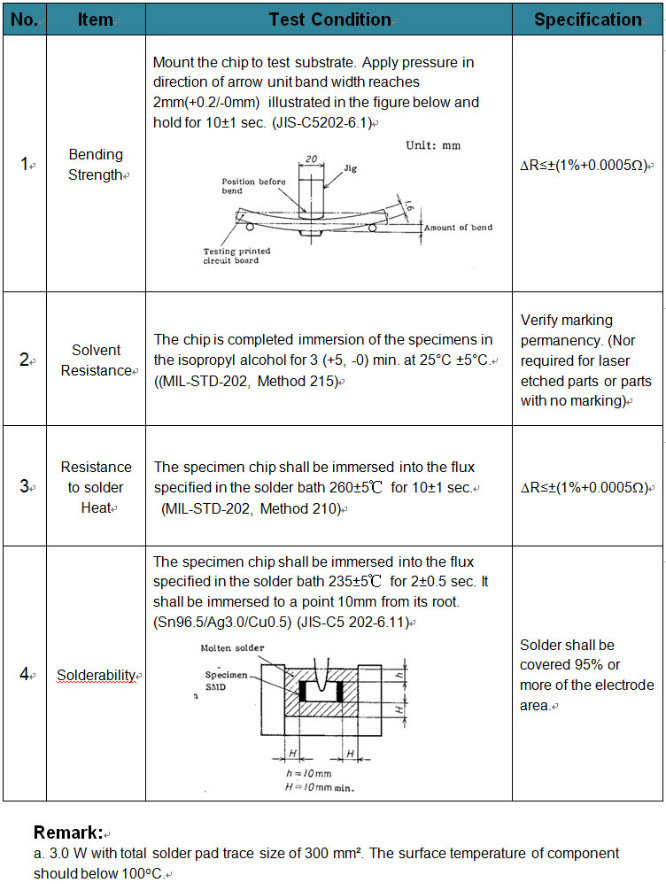

7. Function Performance

Thunder Precision Resistor Co., Ltd. is a 25 years experienced professional manufacturer of high precision resistors and ultra-high precision resistors and varies special resistors as well as hgih precision resistor netwouds.

All production is strictly controlled and follows an extensive set of instructions established in production procedure for reproducibility which was introduced from Europe in 1988.

The quality of the products is always the first priority in Thunder Precision Resistors that is our company quality policy.

BSI issued ISO9000 Quality Management Certificate to Thunder Precision Resistors in 1998 and upgraded it in June 2016 to ISO9001: 2015.

We are going to get the certificate of IATF16949: 2016 by the end of the year that is automotive sector quality management systems updated from TS16949-2009 in Oct., 2018
