High Precision and Efficiency Closed Stepper Motor 2 Phase NEMA 34

Name: High Precision and Efficiency Closed Stepper Motor 2 Phase NEMA 34
Brand: all-electronics-online.com
SKU: 834714355
Availability: InStock
Rating: 4.7 (101 reviews)

Price:	US $ 90/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK86HS78-6004XBJED-0.35M
Motor Length:	109mm
Current/Phase:	6A
Inductance/Phase:	2mh
Holding Torque:	4.6n.M
No. Of Leads:	4
Motor Weight:	2.5kg
Max Axial Force:	60n
Max. Radial Force:	220n
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Number Of Poles:	Ce,RoHS
Operate Mode:	Operate with a Motor Drive
Certification:	Ce,RoHS
Brand:	Jk

Product Description

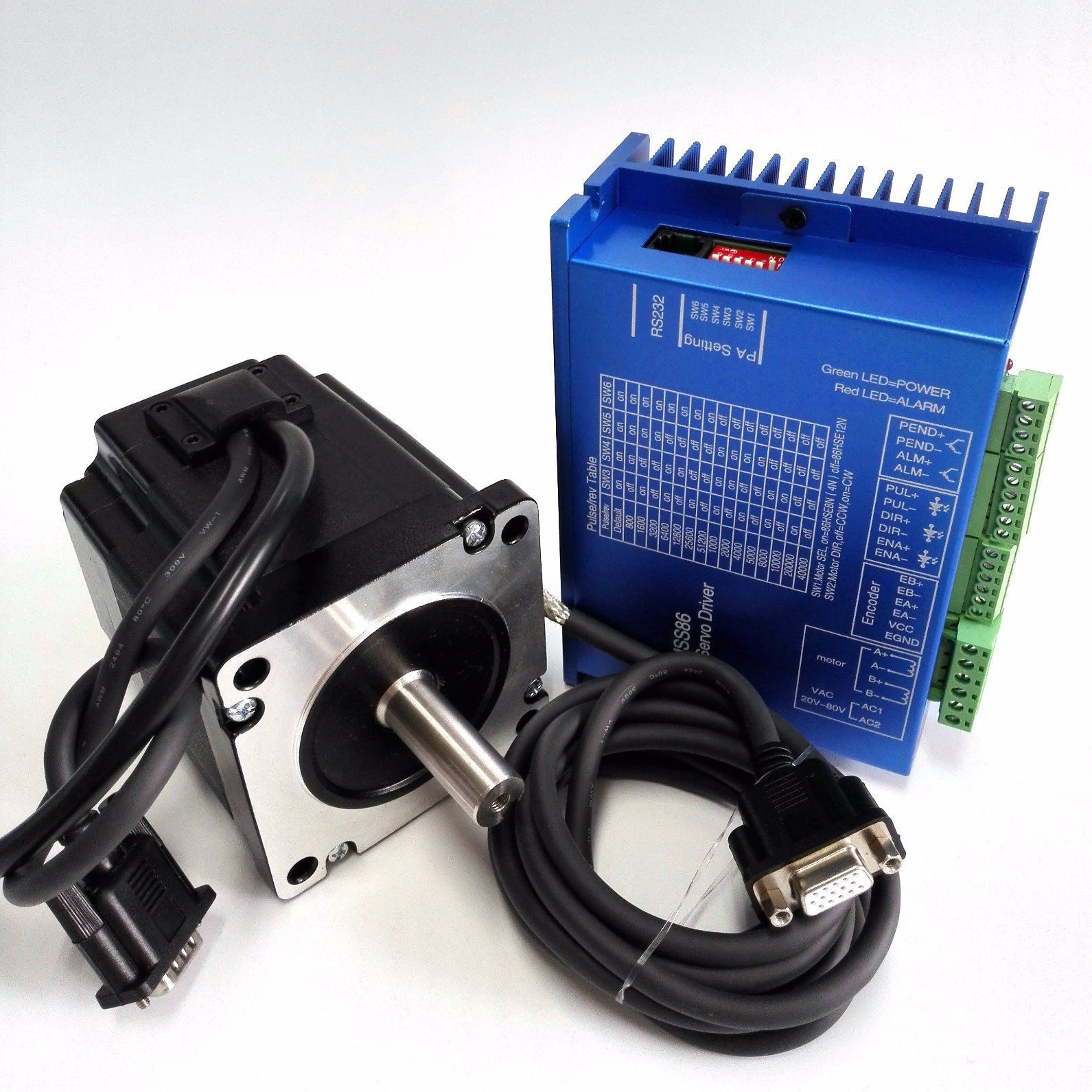

Closed loop stepper motor nema 34 hybrid stepper motor system servo 4.6N.m

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Product Description:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Lead wires	Rotor Inertia	Motor Weight
	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm²	Kg
JK86HS78-6004XBJED-0.35M	1.8	109	6.0	0.27	2	4.6	4	1000	2.50
JK86HS115-6004YBJED-0.35M	1.8	146	6.0	0.36	3.8	8.5	4	2700	4.00
JK86HS155-6004YBJED-0.35M	1.8	186	6.0	0.44	3.8	12	4	4000	5.60

Note: We can also manufacture products according to customer's requirements.

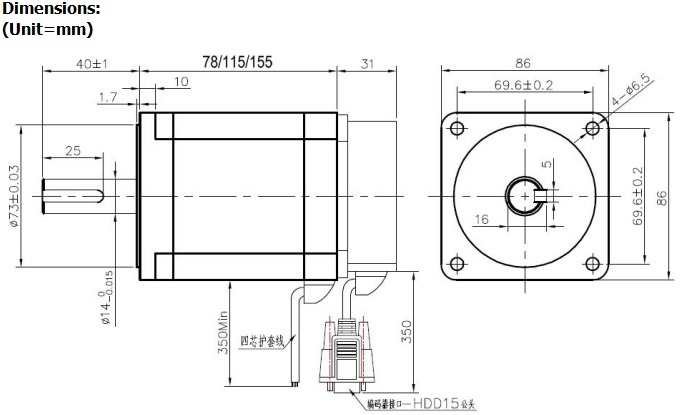

Dimensions:
(Unit=mm)

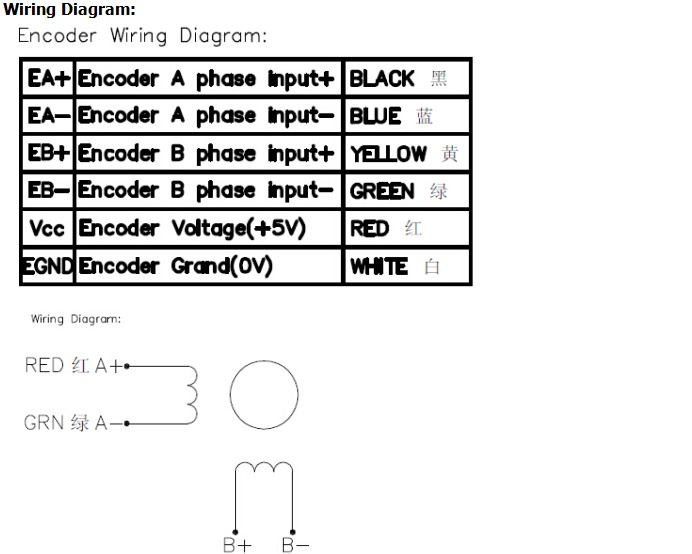

Wiring Diagram:

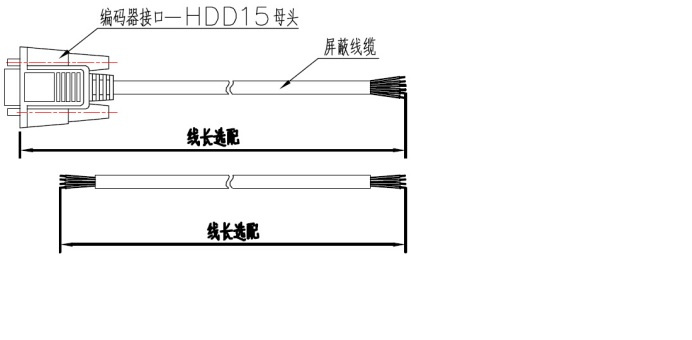

LEADING WIRES FOR MOTOR AND ENCODER. HAVE 2 METER, 3METER AND 5 METER

Matched Drivers:

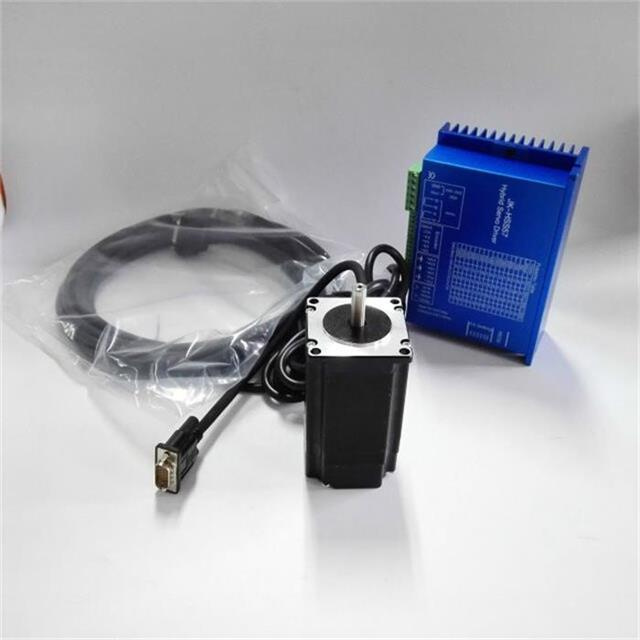

2 Phase closed loop stepper motor system match driver Model: JK-HSS86

Our Packing:

About our company:

Changzhou Jingkong Motor&Electric Appliance Co.,Ltd is a high -tech enterprise that Specializes in designing and producing Hybrid Stepper Motor, Stepper Gear Motor, Stepper Motor Driver, Brushless Dc Motor and Driver.

Jingkong Motor has strong technical force, mature production technology, complete testing equipment and has obtained CE certification, compliance with the EU Rohs standards. Our applicable fields refer to robot, electronic equipment, medical instrument, ad instrument, lighting&audio equipment, printer, textile machinery. Already export to USA, Germany, Italy, Spain.U.k, Mexico Brazil and other countries.

Contact person : Jean (Sales)

company name : Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Company website : www.jkongmotor.com

Tel : +86-519-88372558

Fax : +86-519-88713769

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
