| Prod Model: |
TM245P-ADV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Mounting Size: |
370X390mm |
| Max Mounting Capability: |
10000cph |
| Feeders: |
59 (49 for Tape Packed, 10 for Ics) |
| Max Applicable Height: |
5mm |
| Tape Width: |
8/12/16/24mm |
| Vibration Feeder: |
1set |
| Power Supply: |
220V, Convertible 110V |
| Max Movement Speed: |
1m/S |
| Vacuum Pump: |
3PCS |
| Placement Head Qty: |
2PCS |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Customized: |
Customized |
| Condition: |
New |
Product Description

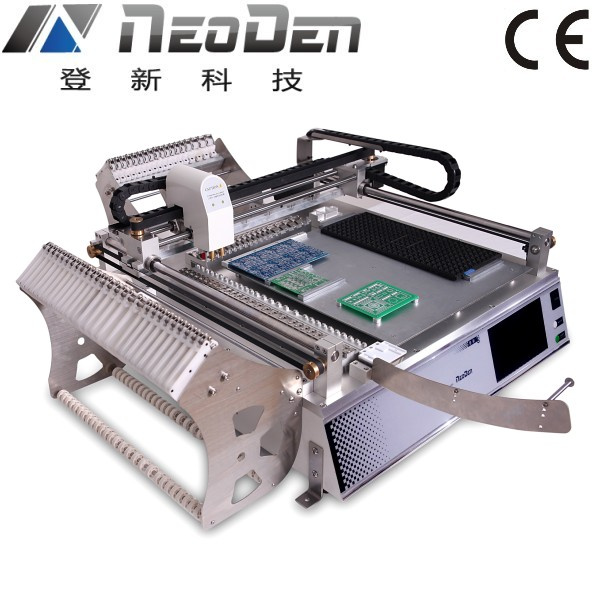

TM245P-ADVANCED pick and place machine
The third generation desktop pick and place machine form NeoDen, completely with independent intellectural property, a leader in this line.
Application industry:
Household appliances industry
Auto electronics industry
Power industry
LED industry
Security
Instruments and meters industry
Communications industry
Intelligent control industry
IOT industry
Military industry etc.
Special features:
1.Fine-pitch IC correctional device:
simple structure,used for mechanical correction of fine-pitch IC to ensure mounting accuracy.
2.Vibration feeder device:
meet the requirements of mounting different tube packaged IC directly
3.Automatic discharging device with electronic magnetic pressure type gear:
patented, each unit is relatively independent and without interference, can peel the wasted nylon film more stable and easier.
4.Also with the automatic recover function of step out.
5.Flexible PCB positioning function
Video showing : www.youtube.com/user/NeoDentech from where could find many actual mounting videos and some use experience feedback from customers.
Shipment:
Strictly export packing with fumigation-free box, shipped by DHL safe and sound
Powerful after-sales to solve any problem:
TM245P-STANDARD: 1 YEAR WARRANTY
TM245P-ADVANCED: 2 YEAR WARRANTY
(accessories and user manual with be packed together with product to help customer duing using )
Lead time:
Slack season: 1-3 working days after payment received
Peak season: 3-5 working days after payment received
We could also supply customer one whole SMT producing line :
Solder printer → desktop pick and palce machine → reflow solder
TM245P-ADVANCED data :
| Max mounting size | Max mounting capability | ICs |
| 370x390mm | 10000CPH | 10 |
| External Dimension(LxWxH) | Position accuracy | Max available height |
| 870*885*336mm | +/- 0.03mm | 5mm |
| Placement head qty | Max movment speed | Tape width |
| 2pcs | 2m/s | 8/12/16/24mm |
| Vacuum pump qty | Power supply | Vibration feeder |
| 3pcs | 220V/160W (convertible to 11ov) | 1 SET |
| Vacuum pressure | Feeders | Weight |
| -92KPA | 59 | 69kg/79kg |
Brief comparison for 3 series pick and place machine:
| Series | Max mounting size | Max mounting speed | Max avilable height | Tape width | Feeder of tape qty | Feeders of IC support |
| TM220A | 220*200mm | 5000pcs/h | 3.5mm | 8/12/16mm | 15 | 1 |
| TM240A | 360*400mm | 7000pcs/h | 3.5mm | 8/12/16mm | 27 | 1 |
| TM245P-standard | 370*450mm | 10000pcs/h | 5mm | 8/12/16mm | 27 | 10 |
| TM245P-advanced | 370*390mm | 10000pcs/h | 5mm | 8/12/16/24mm | 49 | 10 |
Any more info, welcome to contact us~
Established in 2010, our company is a high-tech corporation locates in West Lake Science and Technology Zone, Hangzhou, China. We are a developer and a manufacturer in the electronic automation industry. Our primary product is a desktop automatic pick and place machine. In China, we are one of the leaders in this industry. Our machine runs a very stable platform while working with precision and high-speed. Our light weight body and user friendly interface has won high praise from our clients.
Our company is innovative in technology:
We are currently researching and developing pick and place machine with visual identification system, auto trail and a multi-function pick and place machine. We will meet and exceed every requirement our clients would request or need.
NeoDen TM220A and NeoDen TM240A are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises to solve the problems of rising labor and equipment maintenance costs. However they are also suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
These machines are small, easy to program and operate. They have good mounting capability, high accuracy, reliability and excellent cost performance. You can rely on our machines to consistently produce high volume and stable quality products.
