| Prod Model: |
TM220A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Components Supply Configuration: |
Tape Reel, Bulk Package (IC) |
| Tape Width: |
8mm, 12mm, 16mm |
| Feeders: |
16(8mm=12PCS, 12mm=2PCS, 16mm=1PCS, Bulk IC=1PC) |
| Vacuum Pump Qty: |
2(Built-in) |
| Applicable Components: |
0402-5050, Sop, Qfn, IC |
| Max Mounting Size: |
220X200mm |
| Max Mounting Capability: |
5000cph |
| Placement Head Qty: |
2PCS |
| Power Supply: |
220V, Convertible to 110V |
| Max Mounting Height: |
3.5mm |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Single-Layer |
| Customized: |
Customized |
| Condition: |
New |
Product Description

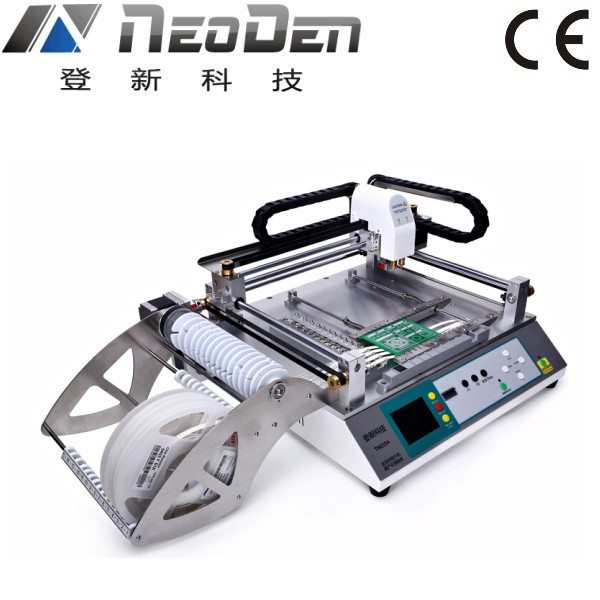

TM220A desktop automatic pick and place machine
especially developed for research laboratories and small medium manufacturing enterprises, also suitable for electronic hobbyist. It could be used for small batch production, laboratory research and development, product sample trials, LED SMT processing and other simlar processes.
What industry line we applied to :
Household appliances industry
Auto electronics industry
Power industry
LED industry
Security
Instruments and meters industry
Communication industry
Intelligent control industry
IOT (Internet and Things ) industry
Military industry
We also supply customer one completed SMT producing line :
Solder printer → desktop pick and palce machine → reflow solder
Technical parameters in form below :
| Applicable PCB | 20*20~220*200mm |
| Placement head qty | 2pcs |
| Max mounting capability | 5000CPH |
| Positioning accuracy | 0.03mm |
| Product external dimension | 830x455x285mm |
| Vacuum pump | -92kpa(mute type pump) |
| Power supply | 220v/50 HZ(convertible to 110v) |
| Average working power | 100w |
| Weight | 25/45kgs |
| Packing size | 101x61x48cm |
| Components supply configuration | tape reel, bulk package IC |
| Tape width | 8/12/16mm |
| feeders qty | 16 |
| vacuum pump qty | 2 |
| applicable components | 0402-5050,SOP, QFN, IC |
Standard accessories:
1.pick and place machine 220A : 1set
2.four types of nozzle: totally 6 (XS--2PC,S--2PC,M--1PC,L--1PC)
3.SD card 8G : 1pc
4.card reader : 1pc
5.nozzle disassembly tool : 1set
6.nozzle cleaning tool: 1set
7.adjustment tool for nylon spool wheel: 1pc
8.user manual :1
9.video training course : 1set
10.PCB coordinate file transformation tool: 1
Brief comparison for 3 series of pick and place machine:
| Series | Max mounting size | Max mounting speed | Max avilable height | Tape width | Feeder of tape qty | Feeders of IC support |
| TM220A | 220*200mm | 5000pcs/h | 3.5mm | 8/12/16mm | 15 | 1 |
| TM240A | 360*400mm | 7000pcs/h | 3.5mm | 8/12/16mm | 27 | 1 |
| TM245P-standard | 370*450mm | 10000pcs/h | 5mm | 8/12/16mm | 27 | 10 |
| TM245P-advanced | 370*390mm | 10000pcs/h | 5mm | 8/12/16/24mm | 49 | 10 |
Powerful after-sales to solve any problem:
The complete machine has a warranty period of 1 year from the time of purchase and life support as wel as a long term factory price supply. We provide online Q/A and troubleshooting and technical advice service.
video showing : www.youtube.com/user/NeoDentech
From here could find videos of how to operation and some use experience feedback from our customers. If interest, you could also upload there~~
Shipment : by DHL in 3-5 working days door-door service; packed in fumigation-free wooden box.
Peak season: delivery out in 3-5 days after payment received
Slack season: delivery out in 1-3 days after payment received
Development:
Now we have built long-term cooperation with 7 overseas agents in India, Iran,Turkey,Brazil, Netherlands, Korea and Chile and more than 5000 customers from 110 countries.
More info, welcome to contact us.
Established in 2010, our company is a high-tech corporation locates in West Lake Science and Technology Zone, Hangzhou, China. We are a developer and a manufacturer in the electronic automation industry. Our primary product is a desktop automatic pick and place machine. In China, we are one of the leaders in this industry. Our machine runs a very stable platform while working with precision and high-speed. Our light weight body and user friendly interface has won high praise from our clients.
Our company is innovative in technology:
We are currently researching and developing pick and place machine with visual identification system, auto trail and a multi-function pick and place machine. We will meet and exceed every requirement our clients would request or need.
NeoDen TM220A and NeoDen TM240A are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises to solve the problems of rising labor and equipment maintenance costs. However they are also suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes.
These machines are small, easy to program and operate. They have good mounting capability, high accuracy, reliability and excellent cost performance. You can rely on our machines to consistently produce high volume and stable quality products.
