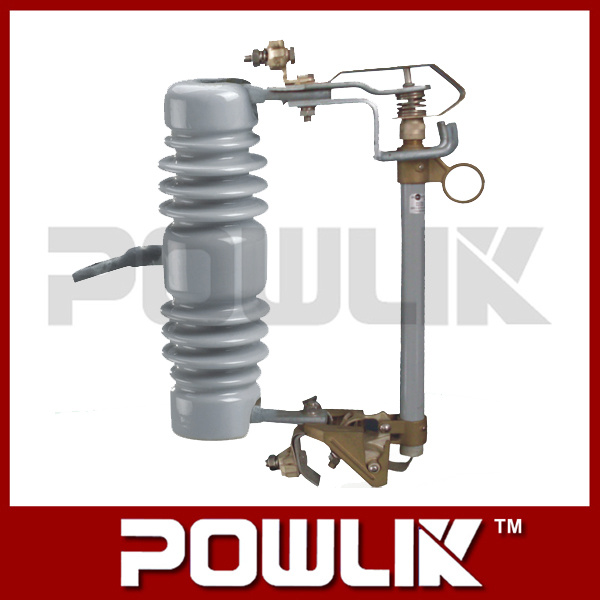

High Quality 15kv Drop out Fuse Cutout

Name: High Quality 15kv Drop out Fuse Cutout
Brand: all-electronics-online.com
SKU: 723976735
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 5.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PFCO-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Air
Breaking Capacity:	High
Usaga:	High Voltage
Type:	Cutout Fuse

Product Description

High Quality 15KV Drop out Fuse Cutout

1.Rated Votage: 15KV
2. Mateial: Porcelain
3.Creepage distance:250mm
4.Packing: By carton in pallet.

It can be order according to customer's drawings.

Technical Standard:
The technical performance of the products is in confirmed to IEC291, 282.

our service:
1. your inquiry related to our products or prices will be replied in 24 hours.
2. well-trained and experienced staffs answer all your questions in fluent English
3. OEM & ODM, any you customized we can help to design and put into products
4. distributoershio are offered for your unique design and some of our current model
5. protection of your sale areas, ideas of design and all your private information

Type	Rated voltage(KV)	Rated current(A)	Breaking current(A)	Impulse voltage BIL(KV)	Power-frequency withstang voltag(KV)	Leakage distance(MM)	Weight(KG)	Dimensons(CM)P
PFCO-3	10-15	100	8	110	40	250	6.5	40.5×30.5×10.5
PFCO-3	10-15	200	10	110	40	250	7.0	40.5×30.5×10.5

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
