High Quality 2-24 Core Fiber Optic Cable GYXTW Optical Cable
| Price: |
US $ 38-69/Roll |
| Min Order: |
1/Roll |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DT-GYXTW |
| Quality Certification: |
ISO 9001, SGS, Ce, etc |
| Description: |
GYXTW Fiber Optic Cable |
| Tensile Strength: |
600-1500 N |
| Crush Resistance: |
300-1000 N |
| Cable Diameter: |
2.5 mm |
| Cable Weight: |
65 Kg/Km |
| Operating Temperature: |
-40~+60 |
| Wiring Devices: |
None |
| Condition: |
New |
| Type: |
Cable |
| Certification: |
GS, CE, ISO |
Product Description
High Quality 2-24 Core Fiber Optic Cable GYXTW Optical Cable

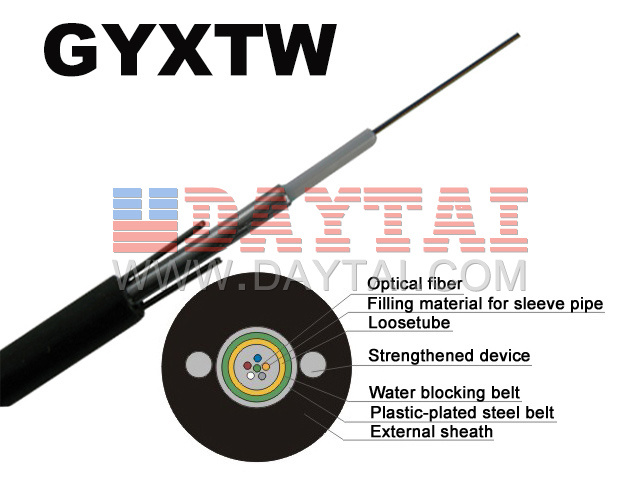

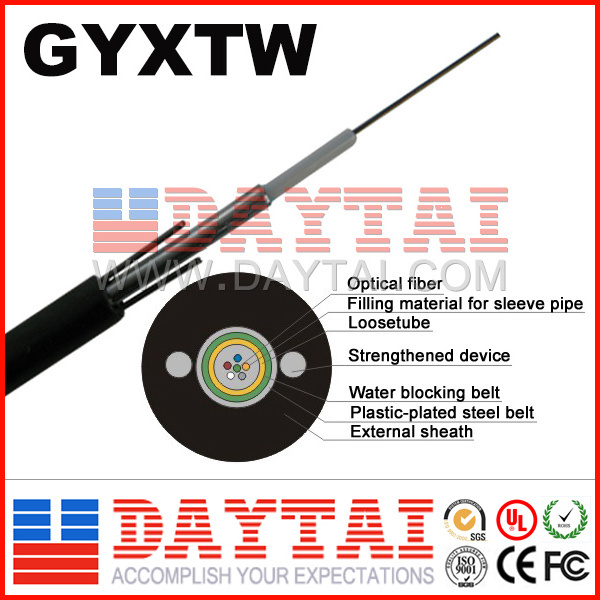

DescriptionOptical Fiber Cable,The structure of GYXTW (outdoor optical cable used for telecommunication withmetallic central strength, the steel-PE central tube complete all-filled with steel wire ) is covering the inner-fulfilled waterproof compound loose tube,which is made of high modulus plastic, with the single-mode optical fiber.
The waterproof belt and steel belt covered vertically out of the loose tube, twoparallel steel wire on the both sides of the cable core are be used as the strengthen part to retard the flame and become the optical cable.
Specification
Fiber count | 2~24 |
Tube diameter (mm) | 2.5 |
Steel wire diameter (mm) | 1.0 |
Cable diameter (mm) | 7.8 |
Cable Weight (Kg/Km) | 65 |
Tensile strength (N) | Long term | 600 |
Short term | 1500 |
Crush Resistance (N/100MM) | Long term | 300 |
Short term | 1000 |
Bending Radius (MM) | Dynamic | ≥20 * Cable diameter |
Static | ≥10 * Cable diameter |
Operating Temperature (ºC) | -40~+60 |
Application | Aerial and Duct |
