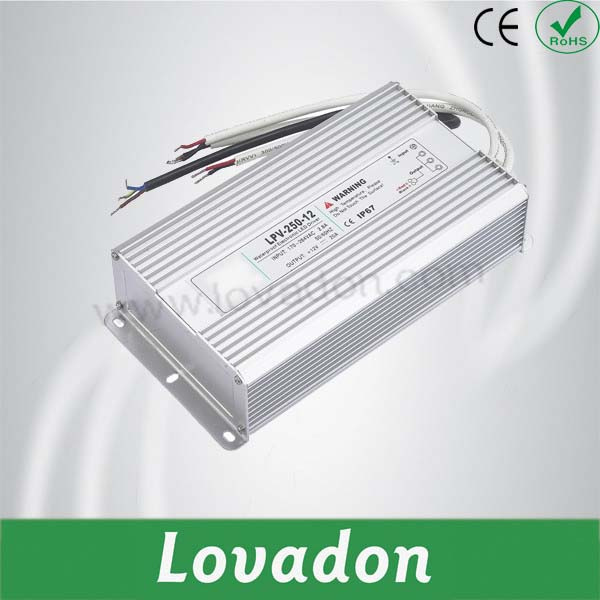

High Quality 200W Switching Power Supply Lpv-250

Name: High Quality 200W Switching Power Supply Lpv-250
Brand: all-electronics-online.com
SKU: 686203472
Availability: InStock
Rating: 4.3 (33 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-250-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Warranty:	1 Year
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	CE
Output Power:	200W

Product Description

100W switching power supply waterproof
1. Small size, light weight, high efficiency, long life, safety and reliability
2. Built-in PFC function
3. Protections: Over voltage, Over current, Over temperature., Short Circuit
4. Waterproof Rank: IP67
5. Size: 235*120*56mm

Model Specification	LPV-250-12	LPV-250-15	LPV-250-24	LPV-250-48
DC Output voltage	12V	15V	24V	48V
Rated output current	20A	16A	10A	5.2A
Output current range	0~20A	0~16A	0~10A	0~5.2A
Error	±5%	±5%	±5%	±5%
Wave and noise(Note:3)	150mVp-p	150mVp-p	150mVp-p	200mVp-p
DC output power	240W	240W	240W	250W
Efficiency	80%	84%	84%	86%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	100~130VAC/170~264VAC ,47~63Hz,240~370VDC
Input current	2.5A/230V
AC Inrush current	Cold-start current 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	115%-135% Type: hiccup mode Reset: auto-recovery
Over-voltage protection	115%-135% cut off the output, Reset: auto-recovery
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥85degree cut off the output,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10degree~+60degree,20%~90%RH
Overall dimension	23512056mm
Weight	2.70kgS 9pcs/ctns
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25degree 70% RH. Temperature. 2. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
