High Quality 25.9V 10ah Lipo Battery for Electirc Scooter Ebike

Name: High Quality 25.9V 10ah Lipo Battery for Electirc Scooter Ebike
Brand: all-electronics-online.com
SKU: 730544262
Availability: InStock
Rating: 4.8 (63 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	25.9v 10ah
Type:	Lithium-Polymer Battery
Usage:	Electric Bicycle
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Nominal Voltage:	3.2V

Product Description

Overview
Quick Details
Place of Origin:Guangdong, China (Mainland)
Model Number:Li Polymer Battery
Type:Li-polymer
Nominal Voltage:3.7v/cell
Size:customized
Nominal Capacity:10Ah
Warranty:1 Year
Cycle life:2000 Times 80% DOD
Battery type:Li-po Cell
Payment:T/T, Paypal
Certificate:CE/RoHS/UN38.3/MSDS
Voltage:3.7v/Cell
Capacity:10Ah
OEM/ODM:Accepatable
Application:Medical Equipments
Model:3.7v Polymer Lithium Battery
Packaging & Delivery
Packaging Details
white box
Delivery Time
7-10 days

Rechargeable High quality 25.9v 10ah lipo battery for electirc scooter 10ah ebike lithium ion battery pack

9059156/7S1P Li-polymer Battery Pack 25.9V/10AH
Model: LY-L07S001-020
Item	Specification		Remark
Nominal capacity	10000mAh		0.5C discharge Cell: 9059156
Nominal voltage	25.9V		3.7V / 1Cell
Charging voltage	29.4V±0.05V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	3000mA/3.5hour, 5000mA/2.5hour		Battery capacity÷charging current×1.5
charging current	5000mA(0.5C)		0 ~ +40ºC
Maximum charging current	10000mA(1C)		0 ~ +40ºC
Continuous discharge current	10000mA(1C)		-20 ~ +60ºC
Discharge cutoff voltage	16.8V		2.4V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤200mΩ		AC Impedance 1kHz
Cycle life	≥500		/
Operating temperature	Standard Charge	0 ~ +40ºC	/
	Standard Discharge	-20 ~ +60ºC	/
Outline dimension	L160W60H68mm		Length x wide x height
Pre-wired			Red = Positive,Black = Negative
Protection Circuit Module: PCM-L07S30-073
Maximal continuous charging current	10A		/
Maximal continuous Discharging current	10A		/
Over-charge detection voltage	4.25±0.025V		single cell
Over-charge release voltage	4.05±0.05V		single cell
Over-charge detection delay time	0.5S-2S		single cell
Over-discharge detection voltage	2.50±0.062V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	10mS-300mS		single cell
Over-current detection	50±10A		can adjust
Over-current delay time	5ms-20ms		/

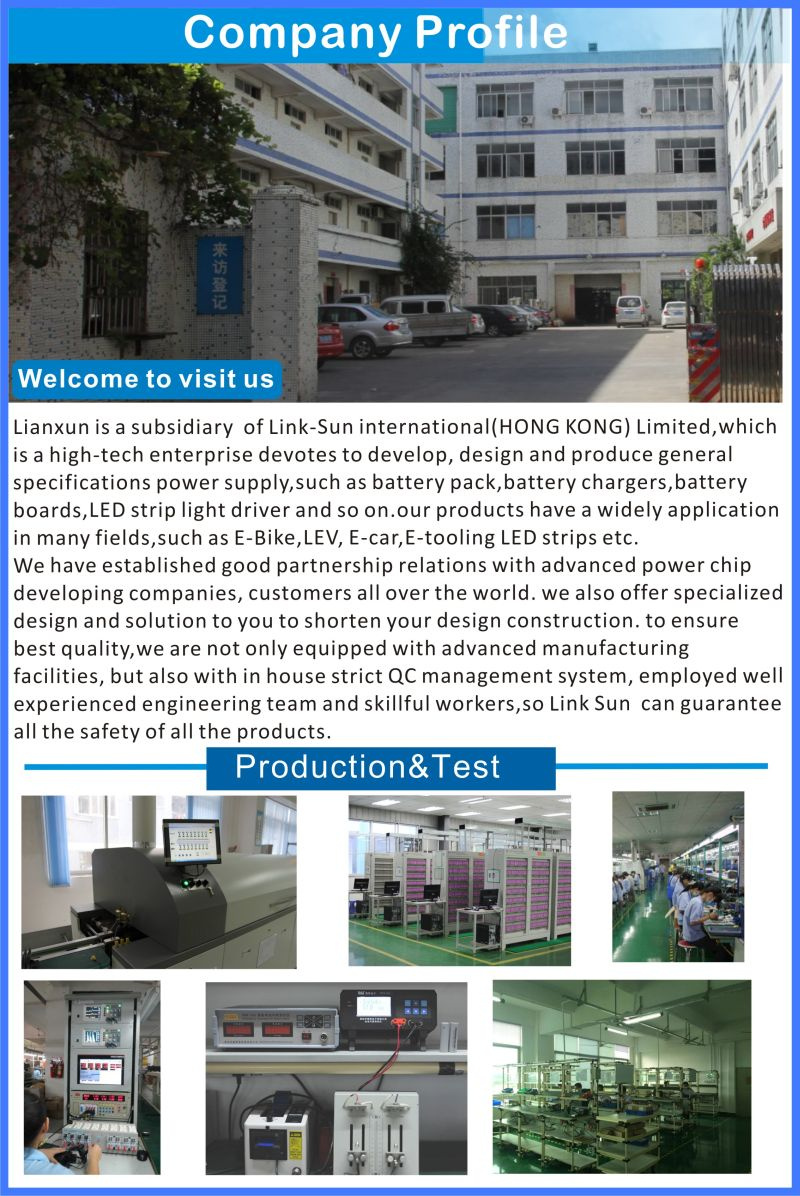

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
