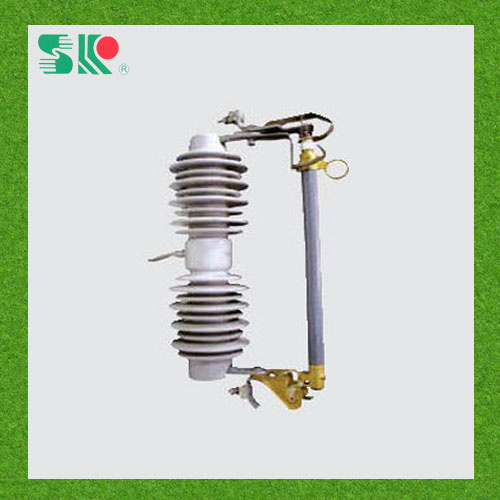

High Quality 35kv Dropout Fuse

Name: High Quality 35kv Dropout Fuse
Brand: all-electronics-online.com
SKU: 740951445
Availability: InStock
Rating: 4.4 (115 reviews)

Price:	US $ 14.8-25/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	35KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo,Shanghai
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

*Quick Details

Model Name: Cascade Fuse

Model Number: XM-8 Type

Breaking Capacity: High

Safety Standard: IEC

Export Markets: Global

Origin: China

*Product Description

Type: XM-8

Rated Voltage ( kV ): 35

Rated current ( A ): 100 200

Breaking current ( A ): 6300 8000

Impulse Voltage( BIL ): 170

Power-frequency Withstand Voltage ( kV ): 70

Leakage Distance ( mm ): 750

Weight ( kg ): 17 18

Diemnsions ( cm ): 72*20*17

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
