High Quality 0.5mm Thick PCB 4 Layers with Yellow Solermask
| Price: |
US $ 0.84/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-186-V1.86 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
0.5mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Yellow |
| Colour Of Component Legend: |
No Silkscreen Requried. |
| Minimum Trace And Space: |
3 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.25/4.50mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

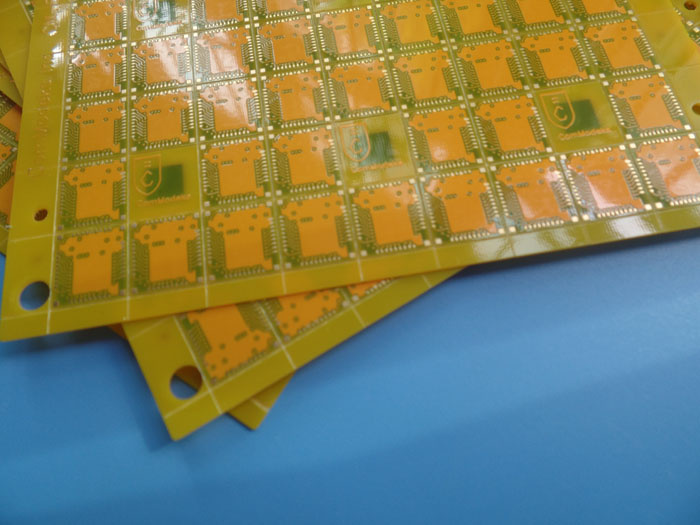

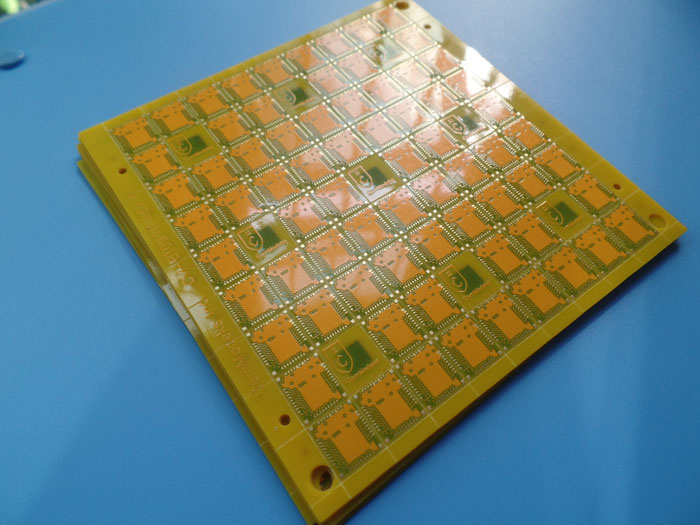

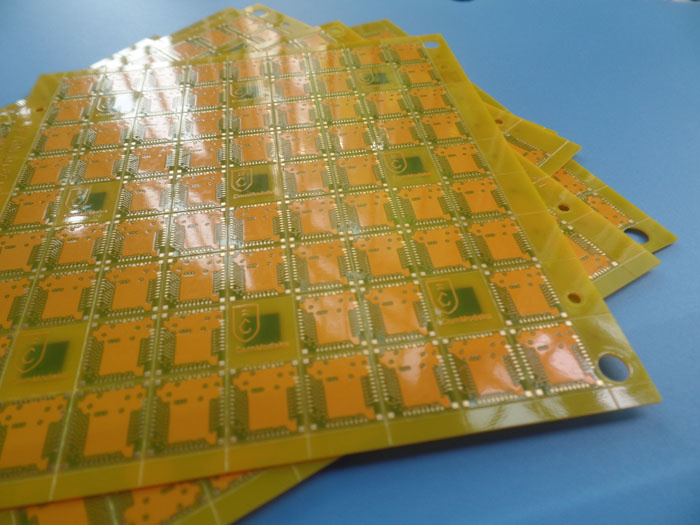

ISO9001 High Quality Printed Circuit Board 4 Layer Via In Pad PCB 0.5mm Thick With Yellow
Mask Applied In GPS Antenna
Commodity IntroductionThis is a type of FR-4 PCB for the application of GPS Antenna. It's a 4 layer board at 0.5mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 102 x 100mm=81PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND |
| 4mil FR-4 |
| copper ------- 18um(0.5oz) PWR |
| 4mil prepreg |
| copper ------- 18um(0.5oz) |
| TECHNOLOGY | |
| Minimum Trace and Space: | 3mil/4mil |
| Minimum / Maximum Holes: | 0.25/4.50mm |
| Number of Different Holes: | 21 |
| Number of Drill Holes: | 503 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 0.5mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel, (11.7% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Yellow, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen requried. |
| Colour of Component Legend | No silkscreen requried. |
| Manufacturer Name or Logo: | No silkscreen requried. |
| VIA | Plated through hole(PTH), Via in Pad. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Antenna
Wifi Booster
HDMI Switch
Voip
Remote Control
Oscilloscope |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Bicheng PCB, the quality is more stable.
10-year gold medal customers recommend you to use Bicheng PCB.
1. Codec Tieline has won numerous awards for innovation in technology and thousands of
customers around the world rely on reliable broadcast solutions. High quality circuit board is
indispensable.
2.Telemetry UHS supplies innovative products and solutions to enable the transport of diverse
telecommunications products over broadband networks. A stable and good printed circuit board
plays an important role.
Don't just take our word for it. Read what Richard and Olaf have to say about Bicheng PCB.
"Kevin,
Received and tested the boards - thanks very much. These are perfect, exactly what we needed.
Rgds
Rich "
"Hi Ruth,
I got the PCB today, and they are just perfect. Thank you for that.
I will memory your for my next PCB order. Please stay a little patience, my next order is coming soon.
Kind regards from Hamburg
Olaf "
Email us today, we'll respond you within 8 hours. Still slow, take a phone and call us today.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
