High Quality 6.35mm Pitch Rising Clamp Terminal Block (WJ636)

Name: High Quality 6.35mm Pitch Rising Clamp Terminal Block (WJ636)
Brand: all-electronics-online.com
SKU: 709536105
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 0.001/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ636
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	6.35mm
Type:	Single Hole Terminals
Material:	Copper

Product Description

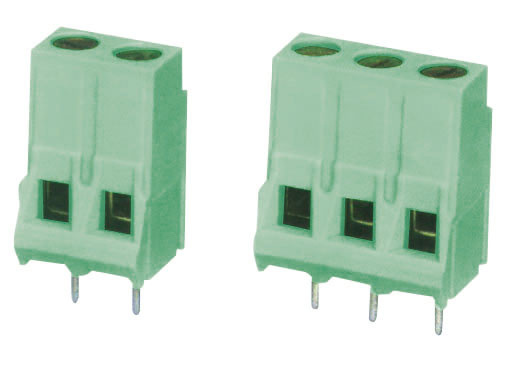

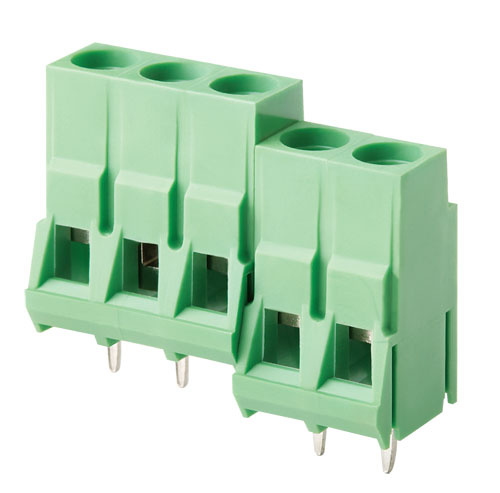

Rising Clamp Terminal Block

1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. We have own R&D center, and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products . Hope to cooperate with you.

Material

Screws: M3 steel Zinc plated
Wire guard: Phosphor bronze, Ni plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Electrical

Rated voltage: 300V
Rated current: 30A
Contact resistance: 20m¦ ¸
Insulation resistance: 5000m¦ ¸ /1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 24-10AWG 4MM2

Mechanical

Temp. Range: -40~ +105
MAX Soldering: +250, for 5 Sec.
Torque: 0.5Nm(4.5lb. In)
Strip length: 6-7mm

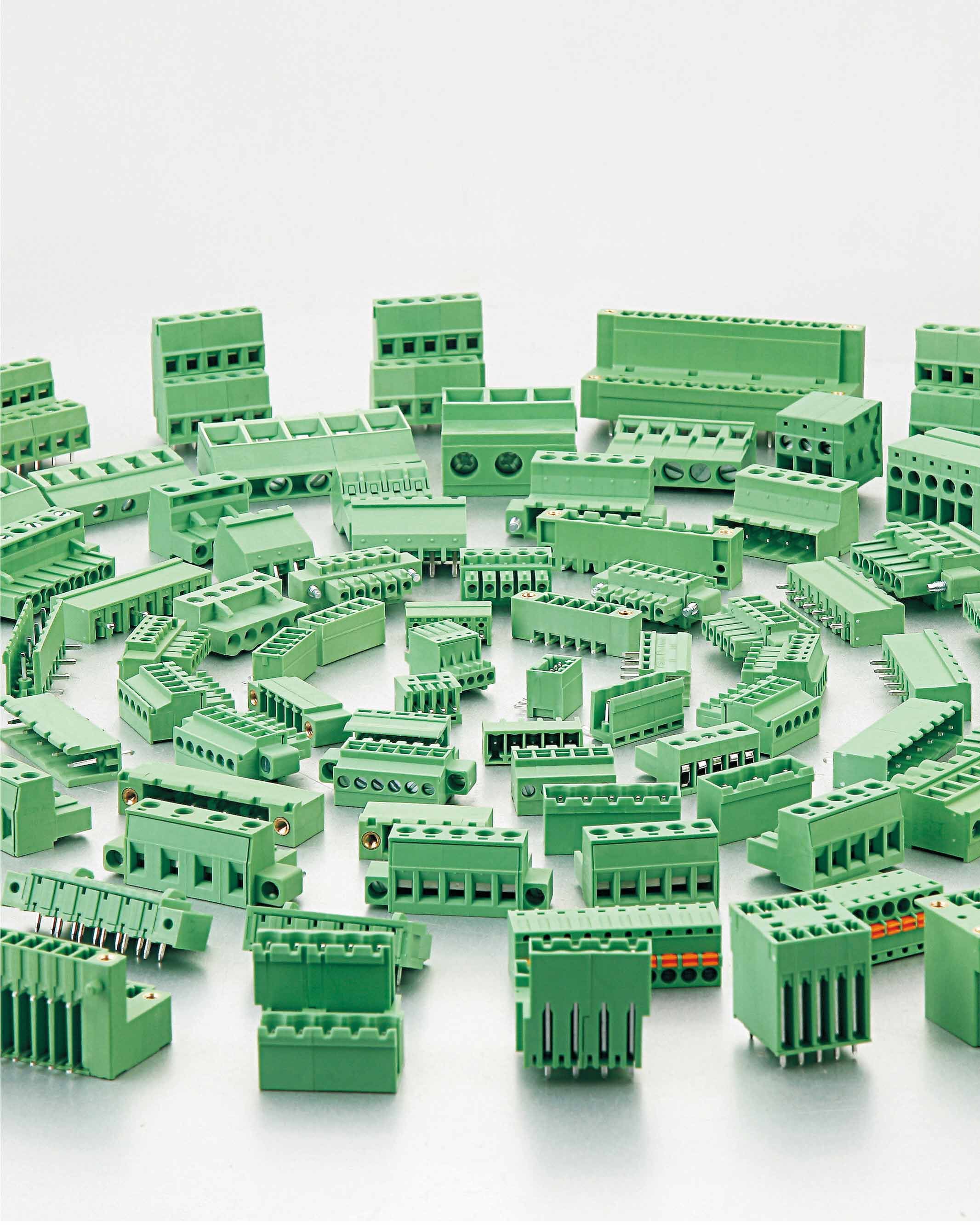

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
