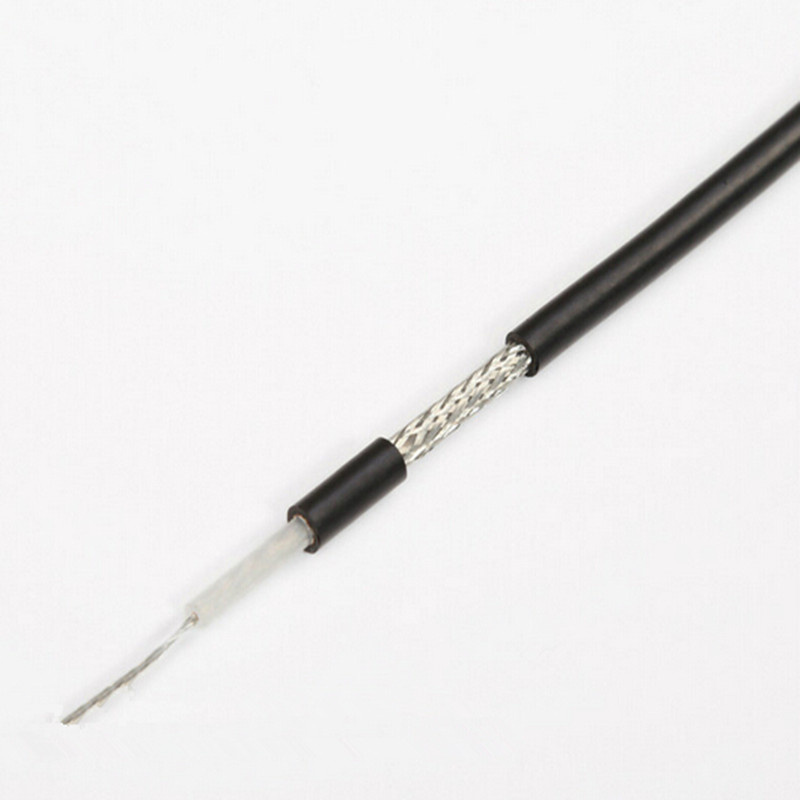

High Quality 75ohm 3c-2V Coaxial Cable

Name: High Quality 75ohm 3c-2V Coaxial Cable
Brand: all-electronics-online.com
SKU: 765513295
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3C-2V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	3c-2V 75ohms Coaxial Cable
Inner Conductor:	0.5 Bc/CCS
Insulation:	3.0 Solid PE
Out Conductor:	3.5 Bc Wire Braid/CCA/Tc
Jacket:	5.0 PVC/LSZH
Application:	Car Antenna Coax Cable
Certification:	RoHS
Conductor Material:	Bc Wire Braid/CCA/Tc
Cover Material:	PVC/LSZH
Type:	Coaxial
Wire Core Material:	0.5bc/CCS
Model:	3c-2V
Brand:	Ottocable

Product Description

3C-2V

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Out conductor Jacket	BC/CCS Solid PE BC wire Braid PVC/LSZH	0.5 3.0 3.5 5.0	Per customer's requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC or LSZH;

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Inner Conductor Resistance (Ω/kM)
Return Loss (dB)
Operating Temperature(0C)

69
75
67
1000
1000
--
18
-30 to +105

Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/100m)
30 200 500 1000	9.00 23.0 32.0 46.0

These kind of cables are serving for communication data transmission equipment, Car antenna systems, mobile communications systems, satellite TV network and video monitoring systems.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
