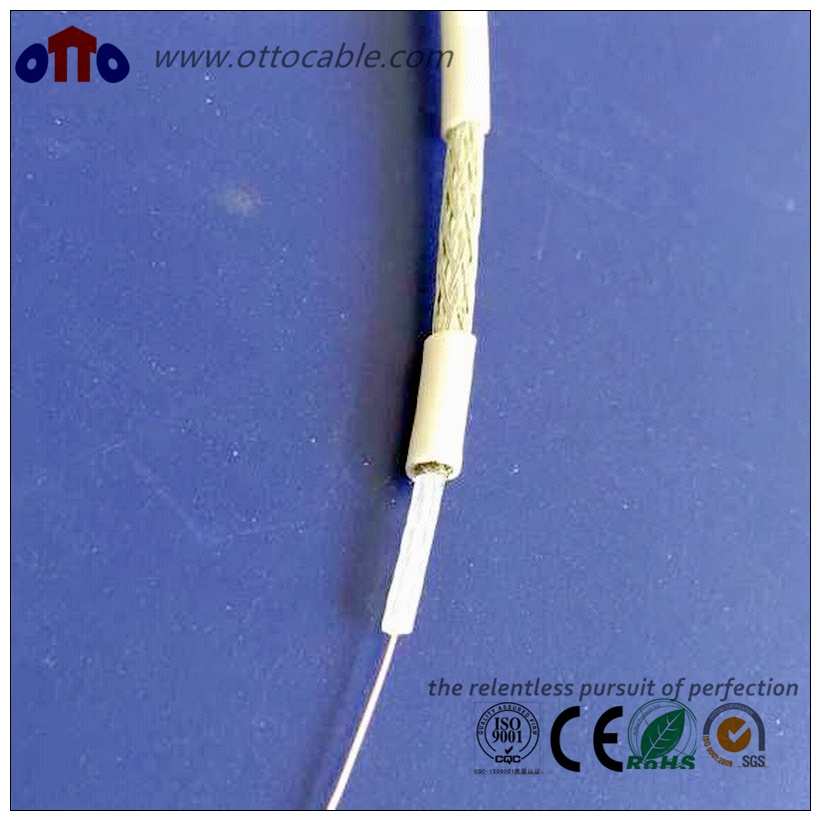

High Quality 75ohms Coaxial Cable 3c-2V

Prod Model:	3C2V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	3c2V Coaxial Cable
Inner Conductor:	0.5 Bc/CCS
Insulation:	3.0 Solid PE
Out Conductor:	3.5 Bc Wire Braid
Jacket:	5.0 PVC/LSZH
Jacket Color:	as Per Request
Impedance:	75ohm
Outer Packing:	Carton Box, Pull out Box, Pallet
Place Of Origin:	Zhejiang, China (Mainland)
Application:	Car Antenna Coax Cable
Conductor Material:	Copper
Certification:	RoHS
Cover Material:	PVC/LSZH
Type:	Coaxial
Wire Core Material:	0.5bc/CCS
Model:	3c2V
Brand:	Ottocable

Product Description

                                    Car Antenna Coax Cable


3C-2V



Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Out conductor Jacket	BC/CCS Solid  PE BC wire Braid PVC/LSZH	0.5 3.0 3.5 5.0	Per customer's requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC or LSZH;


Electrical Characteristics

Capacitance (pF/m) Impedance (Ω) Velocity of Propagation (%) Max Operating Frequency (MHz) Max Operating Voltage(VRMS) Inner Conductor Resistance (Ω/kM) Return Loss (dB) Operating Temperature(0C)

69 75 67 1000 1000 -- 18 -30 to +105


Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/100m)
30 200 500 1000	9.00 23.0 32.0 46.0



Overview
This 75 Ohm 3C-2V cable is JIS coaxial cable. Its versatile cable assemblies with various lengths have been widely used for audio and video transmission system.

Features
·         75 Ohm data signal transmission;
·         Being widely used for audio and video transmission system;
·         Common size cable can be easily terminated;
·         RoHS compliant;
Assemblies & Application
This 75 Ohm 3C-2V coaxial cable can be fixed with kinds of connectors,such as F,TV,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to audio & video transmission and other communication systems.

More Ideas
1)  If require conventional construction and materials, please click 3C-2V;
2)  If require better welding performance,please click 3C-2V-TC;
3)  If require lightweight and lower price,you can choose 3C-2V-CCA
4)  If require to be used in high temperature environment at 105oC,please click 3C-XLPE;
5)  For more 3C-2V assemblies,please click 3C-2V  ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.


These kind of cables are serving for communication data transmission equipment, Car antenna systems, mobile communications systems, satellite TV network and video monitoring systems.
