High Quality 75ohms Coaxial Cable Kx8 for CATV/Matv

Name: High Quality 75ohms Coaxial Cable Kx8 for CATV/Matv
Brand: all-electronics-online.com
SKU: 619704262
Availability: InStock
Rating: 4.7 (90 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Kx8 Coaxial Cable
Inner Conductor:	7*0.40+/-0.005mm Annealed Copper
Dielectric:	7.25±0.10mm Solid PE
Shield:	2480.1mm Annealed Copper Braiding
Jacket:	10.2+/-0.10mm PVC
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Model:	Kx8
Brand:	Ottocable

Product Description

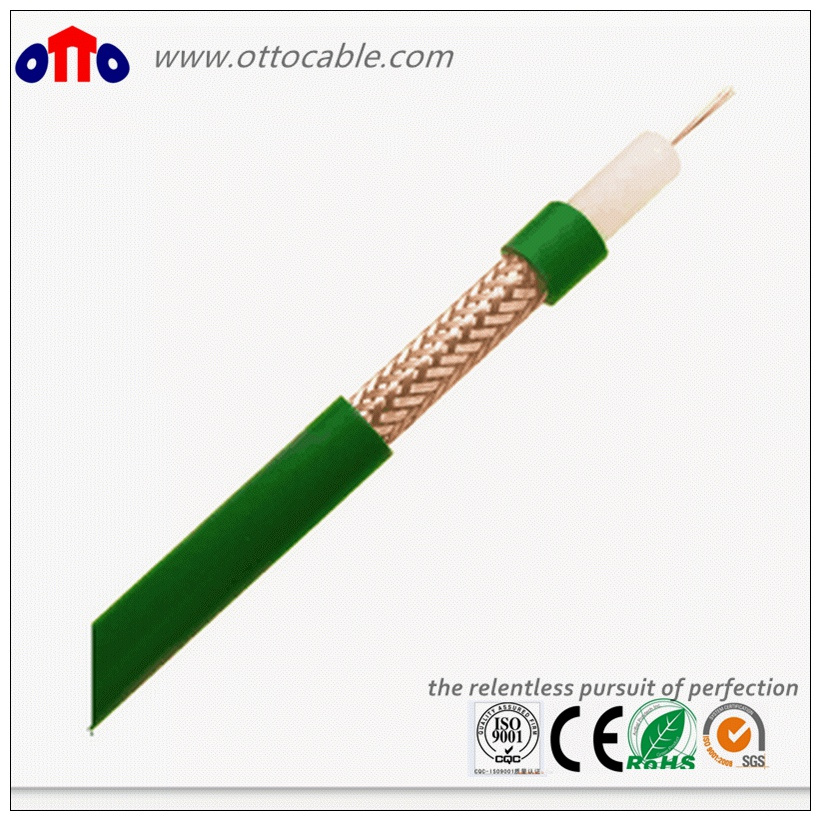

CATV Coaxial Cable (KX8)

Application
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems.

Construction
Inner Conductor: 7*0.40+/-0.005mm Annealed Copper
Dielectric: 7.25+/-0.10mm Solid PE
Shield: 24*8*0.1mm Annealed Copper braiding 80% coverage
Jacket: 10.2+/-0.10mm PVC

CATV Coaxial Cable(KX8)
Construction
Item	Construction
Inner Conductor	7*0.40±0.005mm Annealed Copper
Dielectric	7.25±0.10mm Solid PE
Shield	2480.1mm Annealed Copper braiding 80% coverage
Jacket	10.2±0.10mm PVC
Certify	CE, RoHS

Electrical Characteristics
Impedance(Ω)		75±3
Capacitance(pF/Ft)		67±3
Velocity of Propagation(%)		67.0
Return Loss		≥20dB (5-3000Mhz)
		≥18dB(300-1000Mhz)

Application
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
