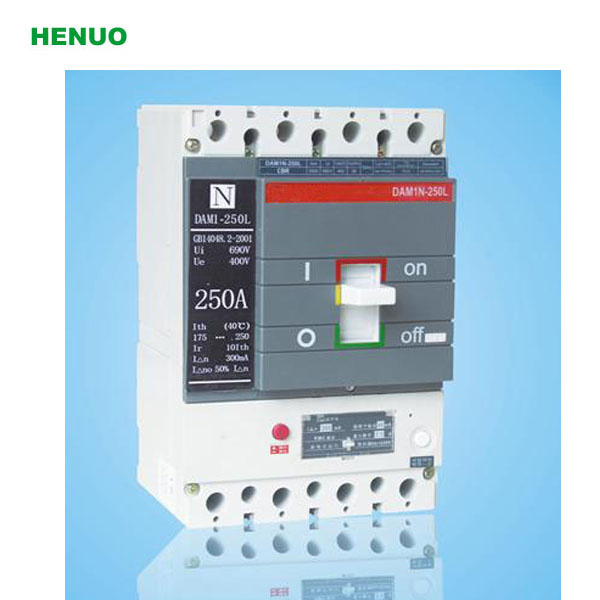

High Quality AC 440V Residual Current Circuit Breaker RCCB
| Price: |
US $ 12/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
M8L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
2p /4p |
| Voltage: |
400V-690V |
| Current: |
6A-1250A |
| Ambient Temperature: |
-5~+40 |
| Maximum Salant: |
22.5 |
| Rated Voltage: |
up to 440V |
| Rated Current: |
up to 630A |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CCC |
Product Description
Summary
Dvigi current-leakage module can be connected with NS100-630 circuit breaker to form the earth leakage circuit breaker. After connection, the circuit breaker has not only overload protection and short circuit protection functions, but also current leakage and grounding fault protection functions. It mainly used for the civil constructions and industrial distribution places to continuously observe the insulation condition of power equipment to prevent from fire and electric shock dangers caused by current leakage or grounding fault.
Dvigi current-leakage module is applied with rated voltage up to 440V, rated current up to 630A, AC 50Hz or 60Hz, with the grounding type of TT, TN-S and TN-C-S grounding system's distribution network.
Dvigi current-leakage module is vertically installed below the NS circuit breaker.
It can directly operate the circuit break through its inner operation structure, which is convenient and easy for installation.
Main characteristics
IEC60947-2 standard
Minimum ambient temperature to -25C
The installation of Dvigi with NS circuit breaker doesn't change the circuit breaker's original performance.
The module doesn't need additional operation power and can be connected directly with electric power. Supplied by 3-phase electric power, it can still work normally even lack 1 phase voltage.
Spot adjustable: Wide range of modulation of rated residual action current In. (5 steps). It can be used for industrial and civil construction areas. Residual current delay action time is adjustable (4 steps) so as to ensure the match with under grade current leakage protection action time and continuity of power supply. The users can do the adjustment according to the practical situation of circuit.
Wide operating voltage: when the phase voltage falls to 80V, the module can still work normally and its maximum operating voltage can be up to 440V.
Current leakage alarming indicating function: SDV auxiliary switch (additional attached) can be installed inside the module. When the circuit breaker trips caused by the circuit current leakage or grounding fault, it can indicate or alarm in a long-distance.
Strong Anti-jamming: Its anti-jamming function accords with IEC 255 and IEC801-2 to -5's norms, which has the anti-jamming functions such as protections of instant over voltage, lighting strike, over voltage, static discharging, wireless blanketing of structure closing operation. It is also not affected by DC distributary. (IEC947-2 appendix B, A series equipment)

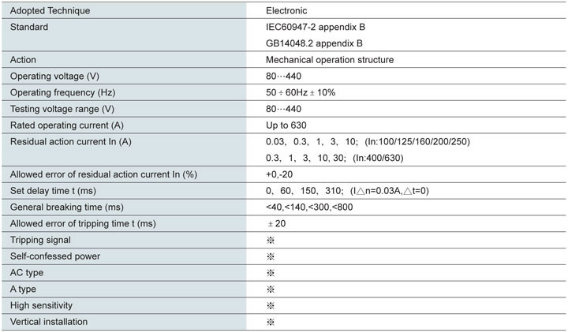

Technical data
Alarming not tripping

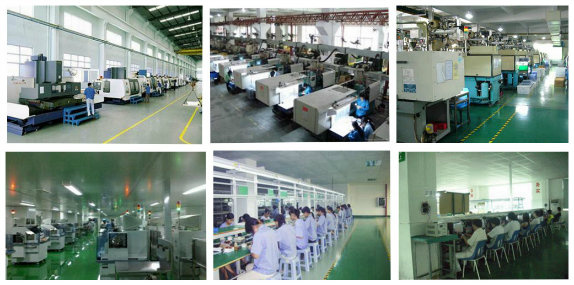

Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
