High Quality AC Contactor (CJX2-09, 12)

Name: High Quality AC Contactor (CJX2-09, 12)
Brand: all-electronics-online.com
SKU: 695892125
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-09, 1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Subminiature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Relay, Communication Relay
Protective Characteristics:	Open Relay
Load:	High Power Relay
Action Principle:	Electronic Type

Product Description

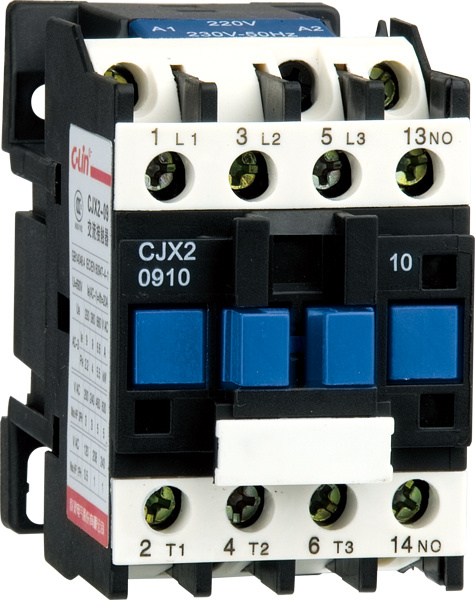

AC Contactor / Contactor /Electrical contactor (CJX2-09, 12)

CJX2 Series AC Contactor is used in the circuit of alternating current 50/60 Hz, rated voltage up to 660V, rated current 09-95A for making breaking circuit over great distance, frequently starting & controlling AC motors. Combined with the auxiliary accessories such as the auxiliary contact block, air delayed contact and machine interlocking device, the product can be performed as delay contactor, star-delta starter. It can also be combined into the electromagnetic starter with LR2 Series thermal relay. CJX2 Series AC Contactor conforms to GB14048.4 standard and got CCC approval.

AC Contactor / Contactor /Electrical contactor (CJX2-09, 12)

Type	CJX2-09, 12
Description	AC Contactor / Contactor /Electrical contactor (CJX2-09, 12)
Rated insulating voltage	690V
Rated voltage	AC: 24, 36, 48, 96, 110, 127, 220, 380
Shell frame level current	09, 12
Ambient temperature	less than 40 centigrade, greater than minus 5 centigrade
Auxiliary contact	01/NC(normally closed auxiliary contact)
Auxiliary contact	10/NO(normally open auxiliary contact)
Utilization category	AC-3, AC-4
Installation	vertical installation (screw installation; used for track of 35mm/75mm of IEC standard)
Accessory	auxiliary contact block, air delayed contact, machine interlocking device)
Dimension	477682(outward appearance dimension)
Dimension	35*60(installation dimension)

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
