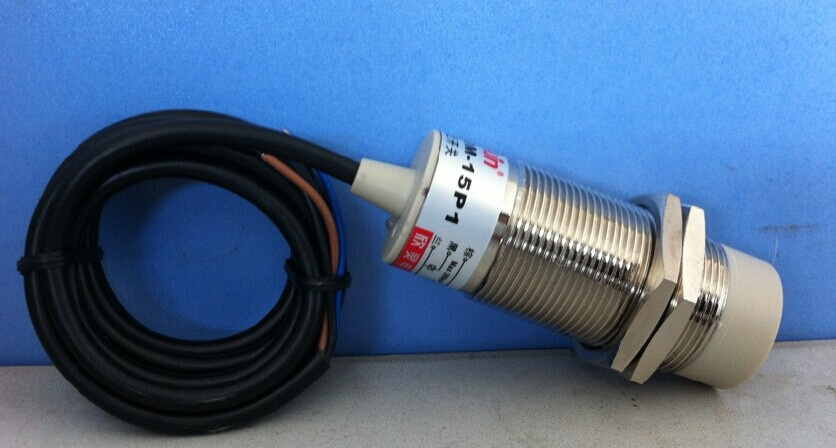

Capacitive Proximity Switch/Sensor (CJM18M, CJM24M, CJM30M Series)

Name: Capacitive Proximity Switch/Sensor (CJM18M, CJM24M, CJM30M Series)
Brand: all-electronics-online.com
SKU: 740357425
Availability: InStock
Rating: 5 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJM18M, CJM24M, CJM30M Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power:	DC6-36V, AC90-250V
Working Temperature:	-20 to +70 Degrees
Detected Material:	Any Object: Metal, Plastic, Glass, Wood, Wateretc
Length Of Output Wire:	Routine:1.5m(Other Length Can Be Customized)
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Material:	Brass-Nickel Plated&Heat-Resisting ABS

Product Description

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

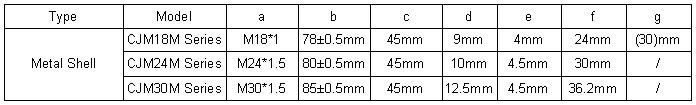

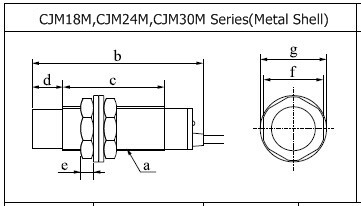

Outline Dimension

Model			CJM18M Series	CJM24M Series	CJM30M Series
DC Type	NPN	NO	CJM18M-8N1	CJM24M-10N1	CJM30M-15N1
	NPN	NC	CJM18M-8N2	CJM24M-10N2	CJM30M-15N2
	PNP	NO	CJM18M-8P1	CJM24M-10P1	CJM30M-15P1
	PNP	NC	CJM18M-8P2	CJM24M-10P2	CJM30M-15P2
AC Type	2-wire	NO	CJM18M-8A1	CJM24M-10A1	CJM30M-15A1
AC Type	2-wire	NC	CJM18M-8A2	CJM24M-10A2	CJM30M-15A2
Detection distance			8mm±15%	10mm±15%	15mm±15%

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
