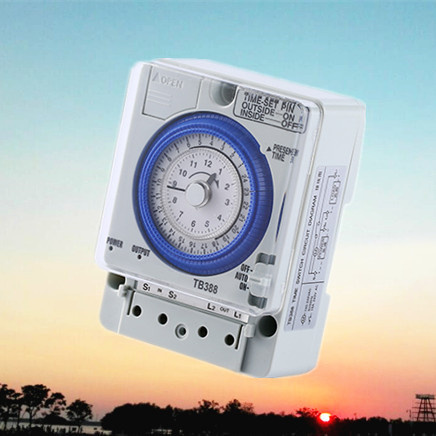

High Quality Analogue Time Switch (TB-388)

Name: High Quality Analogue Time Switch (TB-388)
Brand: all-electronics-online.com
SKU: 720858412
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	US $ 6.6-15.85/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB-388
Set Unit:	15min Min Setting Unit
Usage:	Timer Switch
Theory:	Mechanical
Carry Base:	Decimal Counter
Mechanism:	Mechanical
Function:	Programmable Timer
Time Range:	24 Hour
Coil Voltage:	100~240VAC
Material Of Electric Conductor:	Silver
Battery:	Without

Product Description

Analogue time switch
1 channel
Switching status display
Daily program
With power reserve (Nickel metal hydride battery replacement )
96 switching segments
Quartz controlled
Shortest switching time: 15 minutes
Clock hands for time display
Simple summer/winter time correction
Switch construction:SPST

General Data

Modle	TB 388	Max. switching capacity at 250 V AC, cos φ = 0.6	12 A
Operating voltage	110-230 V AC	Shortest switching time	15 min
Frequency	50-60 Hz	Programmable every	15 min
Width	5 modules	Time accuracy	≤ ± 2 s/day(Quartz)
Installation type	DIN-rail	Power consumption	3 VA
Program	Daily program	Type of protection	IP 20
Power reserve(SUL 181d)	-300 hours	Protection class	II in accordance with EN 60 730-1
Max. switching capacity at 250 V AC, cos φ = 1	20 A	Ambient temperature	-10 °C … +55 °C
