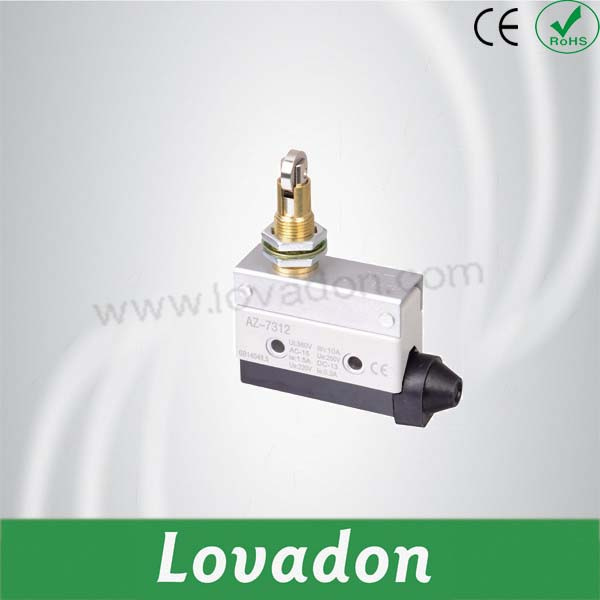

High Quality Az-7312 Horizontal Limit Switch Waterproof Limit Switch

Name: High Quality Az-7312 Horizontal Limit Switch Waterproof Limit Switch
Brand: all-electronics-online.com
SKU: 756695695
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 2-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZ-7312
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Az-7 Series Horizontal Limit Switch
Pressing Type:	Spring Roller
Size:	Normal Size
Breaking Capacity:	General Type
Breaking Form:	Single Type
Protection:	Water-Proof and Oil-Proof
Application:	It Is Mainly a Chain Protection.
Brand:	Lovadon

Product Description

*Virous of actuators,the operation position adjustable(such as AZ-7121).
*Outer shell covered with intensive plastic,water-proof and oil-proof.The mechanical strenth is better than TM type of micro swith,bear hitting.

Main technical parameters for water-proof and oil-proof AZ-7 Horizontal Limit Switch Waterproof Limit Switch.

Models	AZ-7100	AZ-7110	AZ-7310	AZ-7311	AZ-7312	AZ-7120
OF(Max.)	600g	600g	600g	600g	600g	150g
RF(Min.)	100g	100g	100g	100g	100g	40g
PT(Max.)	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm	13.5mm
OT(Min.)	0.8mm	5.0mm	6.0mm	6.0mm	6.0mm	4.0mm
MD(Max.)	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	32mm
OP(mm)	30.5+-0.8	44+-1.2	21.8+-1.2	33.3+-1.2	33.3+-1.2	25+-1
FP						35mm
Weight(kg)	0.07	0.085	0.085	0.09	0.09	0.054

Main technical parameters for water-proof and oil-proof AZ-7 Horizontal Limit Switch Waterproof Limit Switch.

Models	AZ-7140	AZ-7121	AZ-7141	AZ-7124	AZ-7144	AZ-7166
OF(Max.)	220g	180g	240g	200g	280g	120g
RF(Min.)	60g	50g	80g	60g	100g
PT(Max.)	8.5mm	11.0mm	6.5mm	11mm	6.5mm	250mm
OT(Min.)	2.5mm	3.0mm	2.0mm	3.0mm	2.0mm	11mm
MD(Max.)	2.0mm	2.4mm	1.5mm	24mm	1.5mm
OP(mm)	25+-1	40+-1	40+-1	50+-1.2	50+-1.2
FP	32mm		46mm		56mm
Weight(kg)	0.054	0.057	0.056	0.062	0.061	0.083

Characteristics Of Contact Module

Rated preating charateristics	Inductive load: ~AC15,B300(Ue=240V,le=1.5A) --DC-13,R300(Ue=2500V,le=0.1A) Resistive load:250V,5A
Rated insulation volage	Ui=500V, class of pollution is 3, comply with IEC60947-1 Ui=300V,comply with UL508, CSA C22-2n°14
Insulation resistance	100MΩ above(megohmmeter of 500VDC)
Operating frequency	Mechanical:maximum 240 times/min; electrical:maximum 20times/min
Elecrical life	500,000 times
Contact resistance	Less than 15MΩ (initial value)

Environmental Characteristics

Normative reference	Product	IEC60947-5-1,EN60947-5-1, UL508,CSAC22-2N°14
Normative reference	Components	IEC60204-1,EN60204-1
Ambient tenperature	Operation	'-10~+80ºC
Ambient tenperature	Storage	'-40~+80ºC
Vibration resistance	Comply with IEC60068-2-6	10-55Hz complex amplitude 1.5mm, misoperationwithin 1ms(in state of FP,TTP)
Shock resistance	Comply with IEC60068-2-27	Maximum 300m/s^2,misoperation within 1ms(in state of FP,TTP)
Degree of protection		IP54
Mechanical life		10000000times
Operation speed		0.01mm to 1m/sec (lock plug type)
