High Quality Cable Cat5e FTP LAN Cable-Lk-F5CB241

Name: High Quality Cable Cat5e FTP LAN Cable-Lk-F5CB241
Brand: all-electronics-online.com
SKU: 822638675
Availability: InStock
Rating: 4.6 (33 reviews)

Price:	US $ 40-70/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LK-F5CB241
Type:	Bare
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Range Of Application:	Network Cable
Brand:	Lulink

Product Description

PRODUCT DESCRIPTION

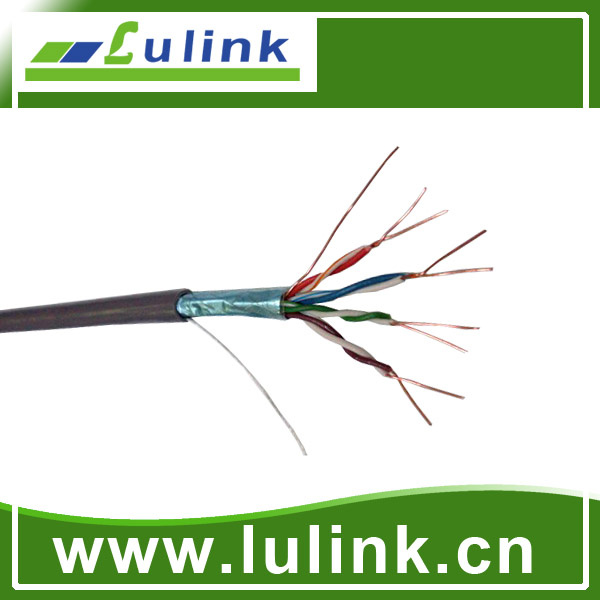

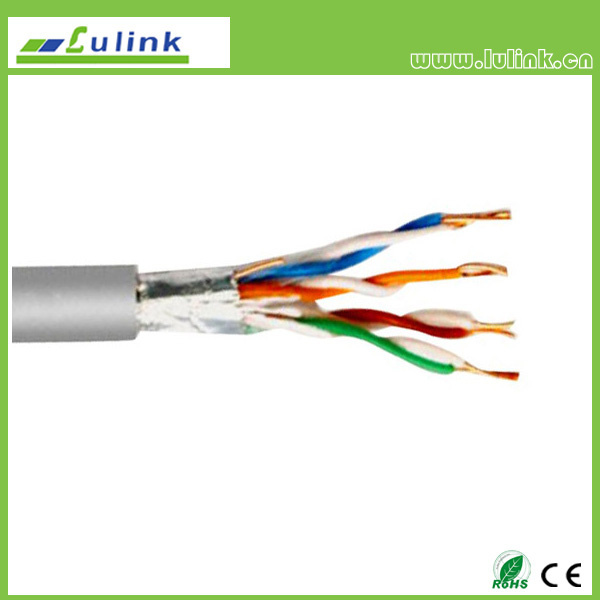

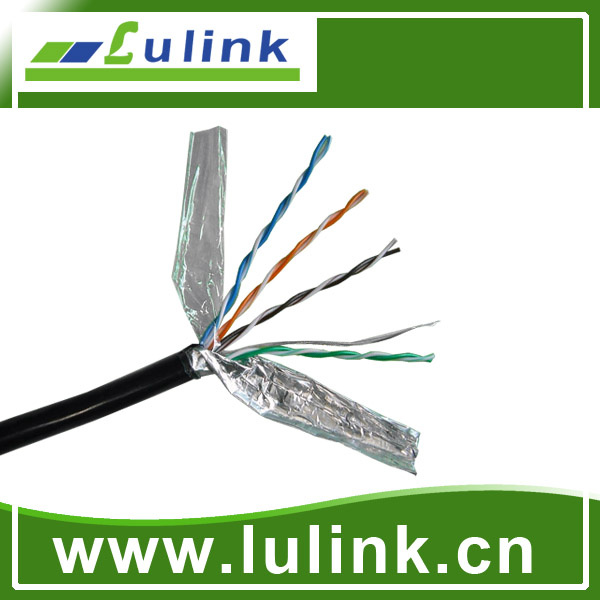

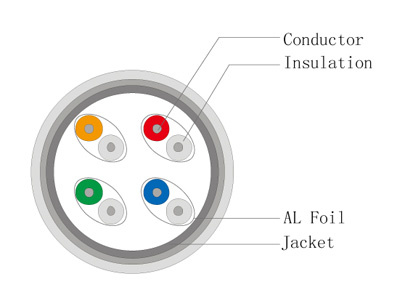

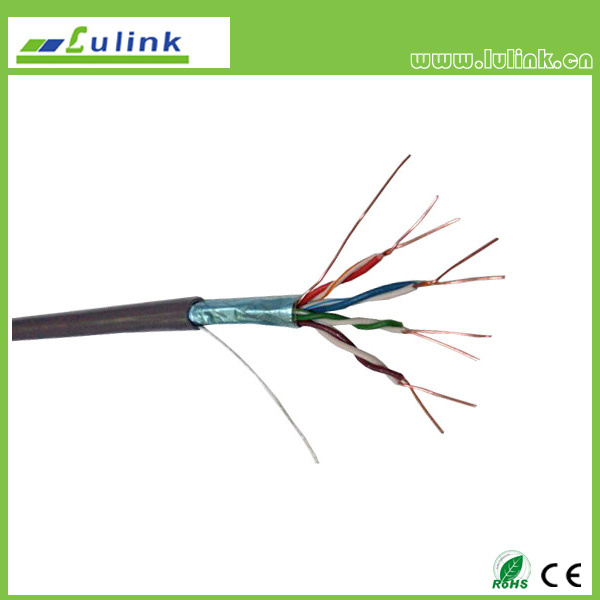

1. This kind of cable use bare copper to be the center conduction, with the
specification is 24AWG; PE is adopted to be the dielectric, Each pair of the
coppers is covered by polyester film and AL foil even outer. The earth wire is
installed between these two covers. The jacket is made of fireproof material, and
it's so significative to the Cat.5e communication.
2. This Cat.5e FTP cable is well conformed to the ISO/IEC, TIA/EIA and EN standards
and whose electrical characteristics are exceed the lastest ISO/IEC Cat.5e
standards.
3. LSZH: means "Low smoke zero halogen", which is the symbol of environmental
protection.

ELECTRICAL CHARACTERISTICS
1. Impedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resisitance : max:28.6/kf
4. Unbalance resisitance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communicate rate: 65%

PHYSICAL CHARACTERISTICS
1. Copper diameter: 24AWG
2. Outer diameter: 6.1mm
3. Shielding material: AL foil
4. Earth wire: 24AWG bare copper or CCA
5. Minimum bend radius: O.D.*6~8
6. Maximum pulling tension: 10kg
7. Jacket material: PVC or LSZH

8. Roted temperature: -20~60ºC
9. Packing: Carton

APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-Anylan;
3. Token ring;
4. ATM 155/ATM 622 etc;

STANDARD
1. ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568-A-5
