High Quality Cat5e Outdoor LAN Cable-Lk-Sfo5CB241

High Quality Cat5e Outdoor LAN Cable-Lk-Sfo5CB241
Price: US $ 37.82-44.93/Meter
Min Order: 305/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: LK-SFO5CB241
Type: Bare
Conductor Type: Solid
Application: Underground
Conductor Material: Copper
Insulation Material: PE
Certification: RoHS
Range Of Application: Network Cable
Brand: Lulink

Product Description

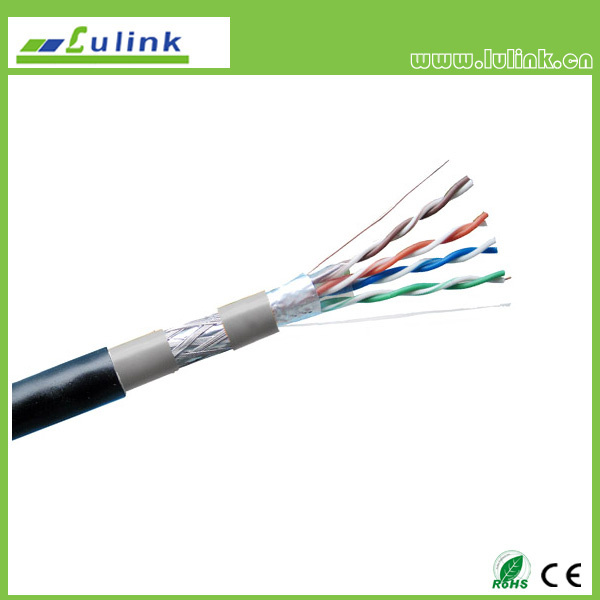

SFTP CAT5E outdoor lan cable,4P,Solid Copper


Specification:

Rated Temperature: -40°C ~ + 75°C
Wire Color Code:
Pair1:white/blue&blue Pair2:white/orange&orange
Pair3:white/green&green Pair4:white/brown&brown

Conductor: 26AWG or 24AWG Stranding ,Solid Bare copper
Insulation: HDPE
Drain Wire: 26AWG or 24AWG Stranding , Solid copper
Outer Shielded: AL-Mylar 100 %(min) coverage
Jacket: PVC ,LSZH
Inner Jacket: HDPE
Impedance: 100±15% Ω at 1 ~100MHz
* Reference Standard: YD/T1019-2001,ANSI/TIA/EIA-568B,ISO/IEC11801


Cable assembly specification
ConductorInsulationDrainShieldedOuter JacketJacket
AWGSpecification
mm
MaterialThickness
(NOM.mm)
MarerialThickness
(NOM.mm)
OD
(NOM.mm)
MaterialThickness
(NOM.mm)
 OD
(NOM.mm)
241/0.511HD-PE0.181/0.511TCAL/MylarPE0.605.5PVC 0.606.8
261/0.404HD-PE0.181/0.404TCAL/MylarPE0.605.3PVC 0.606.5







Lulink Electronics Technology Co., Ltd. Built on the year of 2001, initially as a leading network communication product supplier, engaged in connecting every corner of the world via the network in the most convenient manner and enriching people's life.

Now Lulink became one of Group company focus on the development, production, sales and service of Telecommunication products and generic cabling. The Factory base location on province Zhejiang, Guangdong. The office and Research central on Guangzhou, Dongguan and Shenzhen,? Which have hundreds staffs, and the capital asserts reach dozens of million RMB.

Luink's progress based on the market demands and strong requests of loyal customers to Lulink products. Our main products include all cabling components and finished products: LAN cables, patch cable, faceplate, keystone, patch panel, cabinet, fiber optical cable, fiber optical adaptor, FO patch panel, ODF; And cable assembly as USB cables, HDMI cables, VGA cables, power cables, AV cables, computer cables and OEM cables. We endeavor to develop new products at a high speed to meet your needs, and also provide the solution for engineering project. The quality and price of our products/services are very competitive which are affirmed fully by our clients. Our markets spread all over Europe, America, Southeast Asia and the Middle East.

Lulink will do more on the market research, Humanistic product design, professional service improvement, We expect to develop and make progress together with you while us continuously perfect and surpass ourselves. Let us work together to create a better and more brilliant future!

Thank you for visiting our website. Hope you find appropriate products and service from us.
