| Prod Model: |
LK-F6CB231 |
| Type: |
Bare |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PE |
| Certification: |
RoHS |
| Conductor Type: |
Stranding or Solid |
| Range Of Application: |
Network Cable |
| Brand: |
Lulink |
Product Description

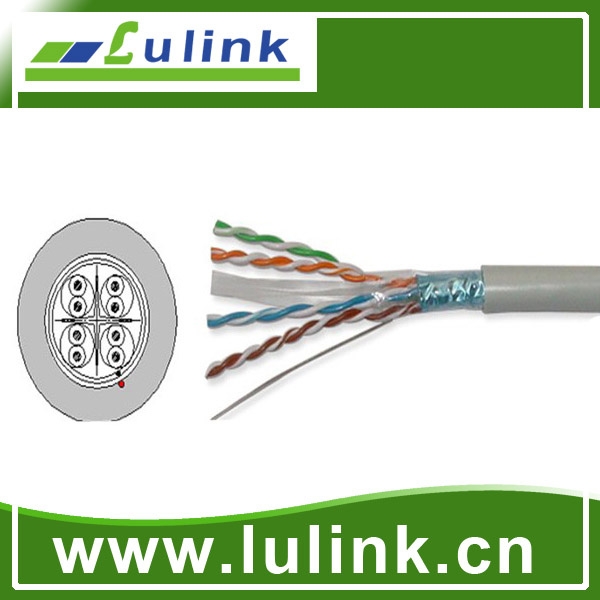

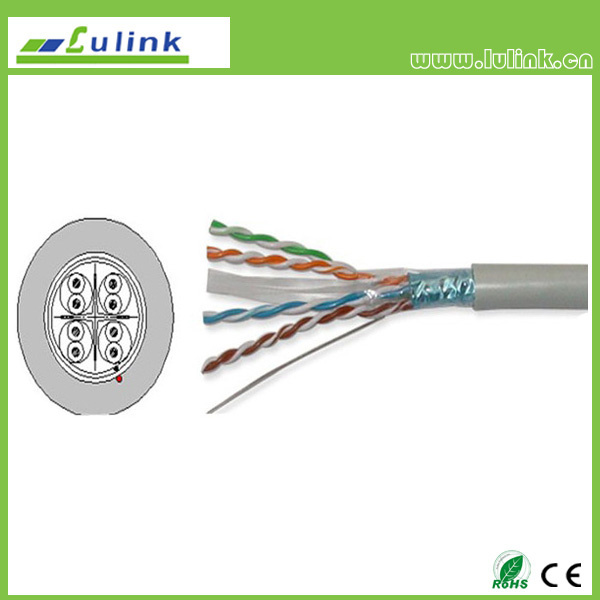

Best price High Speed CAT6 FTP Lan Cable:
Pass FLUKE-DTX-1800/RoSH/CE/ISO/TLC1). Specification: 4P+F+Mylar+D+AL
2). Rated Temperature: 60°C or 75°C
3). Unshielded twisted pairs:
4). Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5). Insulation: HD-PE
6). Filler: PE Cross or FM-PE Thin slice
7). Drain Wire: 26AWG or 24AWG Stranding or Solid Tinned copper
8). Outer Shielded: AL-Mylar 100%(min) coverage
9). Unrip rope: optional
10). Jacket: PVC or LSNH
11). Impedance:100±15%Ω at 1~250MHz
12). Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444
13). Print Legend: CM or CMR
14). Application: Mainly uses in the building correspondence synthesis wiring system the work area correspondence leading-out terminal and between the connection distribution frame wiring, as well as the housing synthesis wiring system's user correspondence leading-out terminal arrives at place of exile between coil's wiring
Cable Assembly Specification:| Conductor | Insulation | Core Number | Filler | Drain | Shielded | Jacket |
| AWG | Specification
(mm) | Material | Thickness
(NOM.mm) | Material | Thickness
(NOM.mm) | OD (NOM.mm) |
| 26 | 1/0.404 | HD-PE | 0.20 | 4P | PE Cross | 1/0.404TC | AL/Mylar | PVC or LSNH | 0.60 | 6.0 |
| 7/0.16 | HD-PE | 0.20 | 4P | PE Cross | 7/0.16TC | AL/Mylar | PVC or LSNH | 0.60 | 6.0 |
| 24 | 1/0.58 | HD-PE | 0.20 | 4P | PE Cross | 1/0.511TC | AL/Mylar | PVC or LSNH | 0.60 | 7.0 |
| 1/0.58 | HD-PE | 0.20 | 4P | FM-PE Thin slice | 1/0.511TC | AL/Mylar | PVC or LSNH | 0.60 | 6.5 |
| 7/0.203 | HD-PE | 0.20 | 4P | PE Cross | 7/0.203TC | AL/Mylar | PVC or LSNH | 0.60 | 6.8 |
| 7/0.203 | HD-PE | 0.20 | 4P | FM-PE Thin slice | 7/0.203TC | AL/Mylar | PVC or LSNH | 0.60 | 6.2 |
PRODUCT DESCRIPTION
1. The center conduction of the 4 pairs FTP Cat.6 cable is made of 23AWG bare
copper. This kind of cable also adopts PE material to be the dielectric, AL foil
to be the shield and fireproof material to be the jacket. Besides , the "+"
typer inner frame setted in the center is good for keeping the balance and
quality, which are so important for the cat.6 communication.
2. This Cat.6 FTP cable is conform to the related standards like ISO/IEC, TIA/EIA
and EN.
3. All the electrical characteristics are exceed the lastest Cat.6 standards
of ISO/IEC.
4. LSZH: means "Low smoke zero halogen", which is the symbol of environmental
protection.
ELECTRICAL CHARACTERISTICS
1. Return resisitance: 14.9/100m
2. Impedance: 100±5
3. Static electric capacity: 46pF/m 1KHz
4. Unbalance capacity: 100pF/100m
5. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Outer diameter: 6.8mm
3. Shielding material: AL foil
4. Minimum bend radius: 60mm
5. Maximum pulling tension: 10kg
6. Jacket material: PVC/LSZH
7. Roted temperature: -20~60ºC
8. Packing: Carton or Axles
APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring; ATM155/ATM622, etc.
STANDARD
1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
