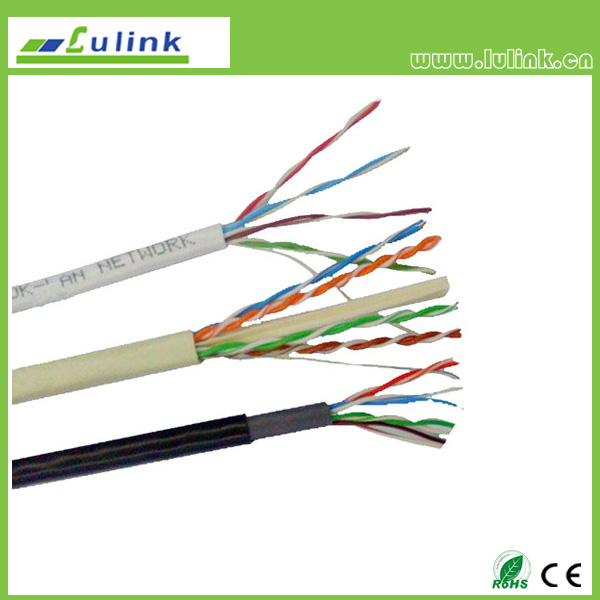

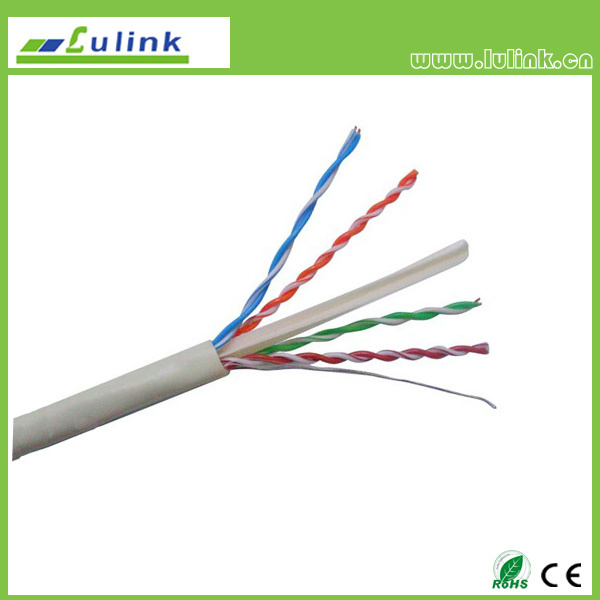

High Quality CAT6 UTP 4pairs Coaxial Network Wire LAN Cable

High Quality CAT6 UTP 4pairs Coaxial Network Wire LAN Cable
Price: US $ 1-2/Meter
Min Order: 305/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: LK-U6CB231
Sample: Avaliable
Color: White/ Black
Application: Submarine Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Type: Cat 5
Certification: UL

Product Description

High Quality Cat6 UTP 4Pairs Coaxial Network Wire Lan Cable






Similar Cables:



PRODUCT DESCRIPTION
1. 4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE
to be the dielectric and fireproof material to be the jacket.
2. This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.
3. All the electrical characteristics are even exceed the lastest Cat.6 standards of
ISO/IEC. The "+" typer inner frame in the center ensures NEXT capacity and
reasonable minimum bend radius.
4. LSZH: means "Low somke zero halogen", which is the symbol of environmental
protection.

ELECTRICAL CHARACTERISTICS
1. Impedance: 100±15
2. Return resisitance: 9.4/100m
3. Unbalance resisitance: ≤5%
4. Static electric capacity: 51pF/m 1KHz
5. Unbalance capacity: 73.2pF/100m
6. Roted communicate rate: 65%

PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Impedance: 100±15
3. Outer diameter: 6.1±0.2mm
4. Minimum bend radius: 6-8×OD
5. Maximum pulling tension: ≤10
6. Jacket material: PVC or LSZH
7. Roted temperature: -20~60ºC
8. Packing: Carton or Axles

APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring;
4. ATM155/ATM622 etc;

STANDARD
1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
